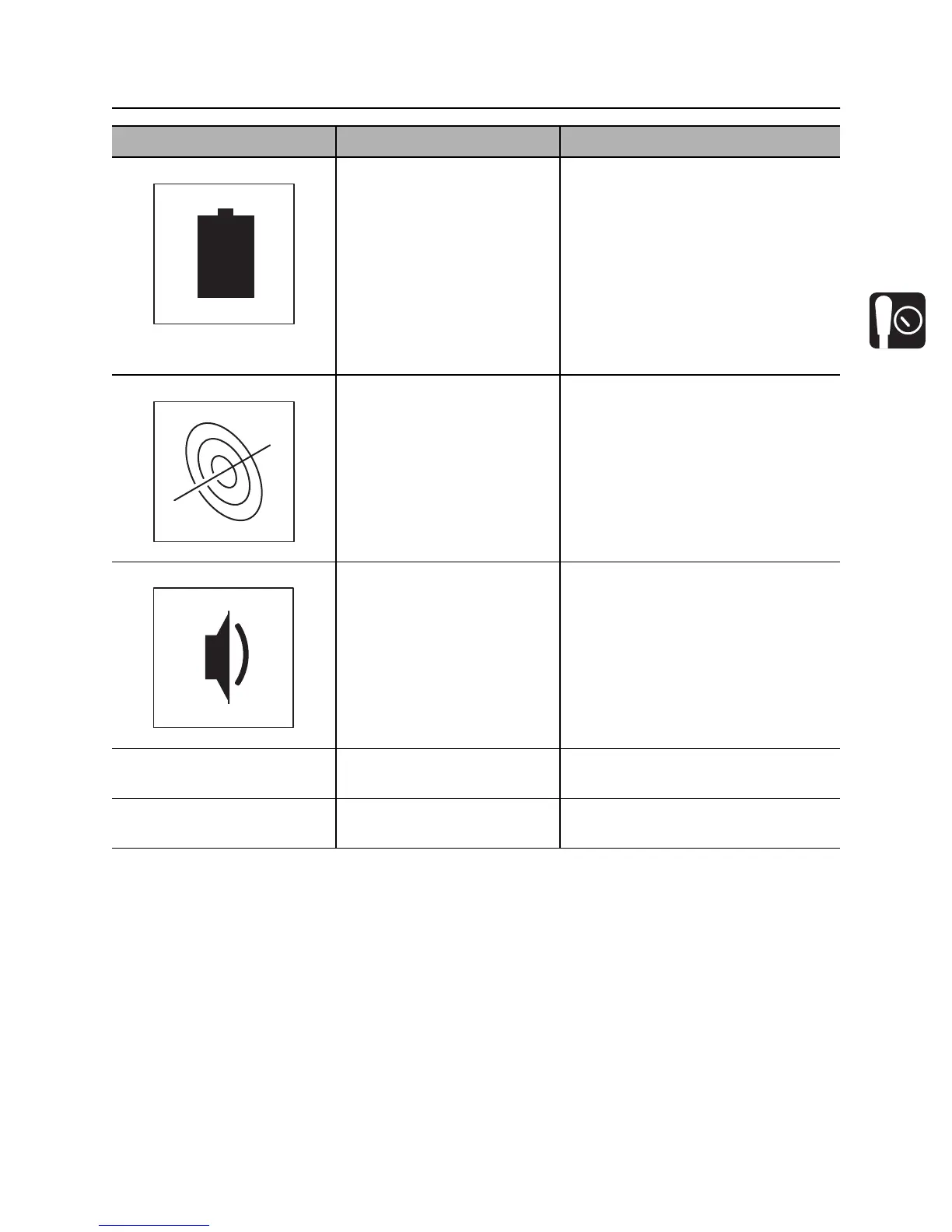

830R/T Operator’s Manual Controls - 19
830R Receiver
CMW
3. Battery Level Indicates battery level.
• Three segments indicates
full battery power.
• One segment indicates
low power.
• No segments and
flashing outline indicates
that batteries should be
changed immediately.
4. Frequency Indicator Indicates unit is in active 83k
(left/right) locating mode.
See “Mode” on page 37.
5. Volume Level Indicates volume level. IMPORTANT: Lower volume to
conserve battery life.
6. Gain Indicator Graphically indicates gain
level.
IMPORTANT: Gain increases to the
right.
7. Signal Strength
Indicator
Graphically indicates the
signal strength level.
Range is 0-999.
