830R/T Operator’s Manual Locate - 29
Active Location
CMW

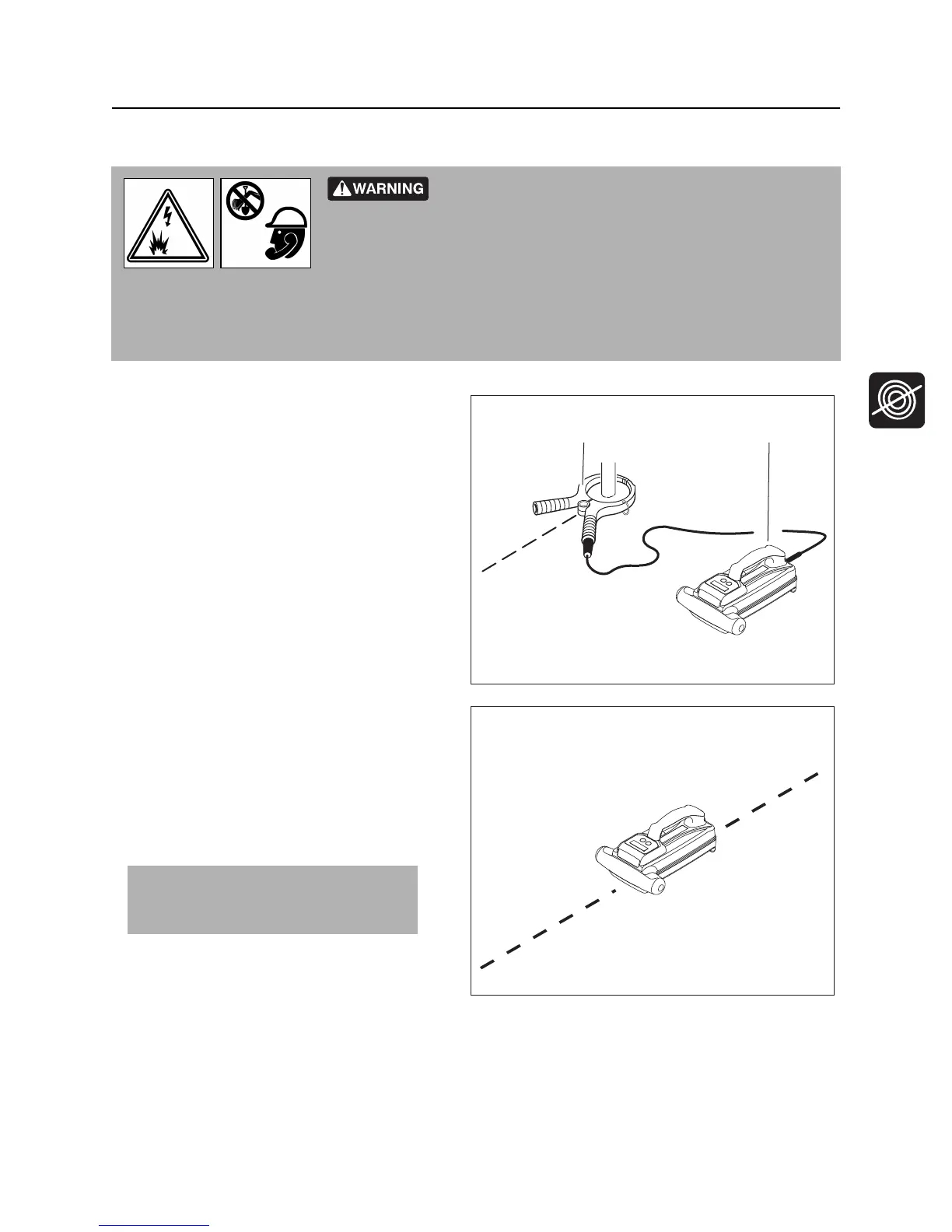

Inductive Clamp
To set up transmitter for use with inductive
clamp:
1. Plug cable into transmitter (2).
2. Place clamp (1) around cable.
3. Turn on transmitter.
4. Check battery level.
5. Select power level. High power is
recommended for use with inductive
clamp.
Induction (Broadcast)
To set up transmitter for induction (broadcast):
1. Remove leads and clamp from transmitter.
2. Place transmitter with the handle parallel
to suspected cable as shown.
3. Turn on transmitter.
4. Check battery level.
5. Select power level.
Jobsite hazards could cause death or serious injury. Use
correct equipment and work methods. Use and maintain proper safety
equipment.
NOTICE: Electric shock or equipment damage can result if transmitter is connected to live cable.
Contact qualified utility personnel and follow all standards and requirements for disconnecting and
grounding cables.
Note: Transmitter handle must be
parallel to cable, as shown, in order to
produce the best signal.
1
2
1
m
t.
e16om010t.eps
