Drill - 68 Cx Series Operator’s Manual
Finish Job
Finish Job

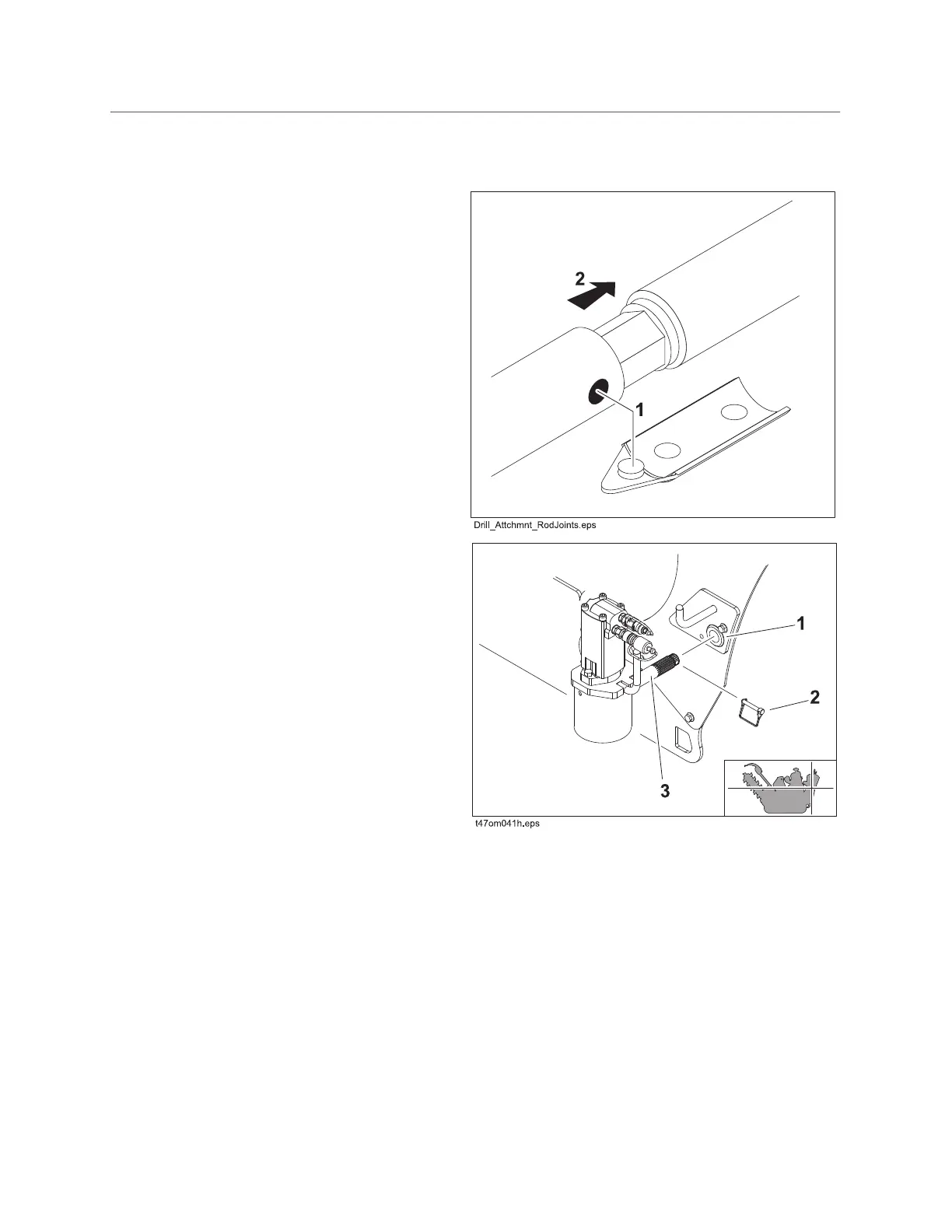

Disassemble Drill String
1. Shut off machine.
2. Disconnect drill string from drilling
attachment.
3. Remove drill bit.
4. Disconnect rod sections:
• Press tab through hole in female side of
joint (1) using special tool (p/n 351-272).
• Pull rod sections apart (2).
Remove Drilling Attachment
When not in use, install the drilling attachment in
storage position on left side of console.
1. Shut off machine.
2. Disconnect hydraulic lines.
3. Install dust covers on hydraulic connectors of
drilling attachment.
4. Insert mount pin (3) in bore of console (1).
5. Secure assembly with pin (2).
To Next Page
