25
DITEC S.P.A - IP1836 - 192C
P

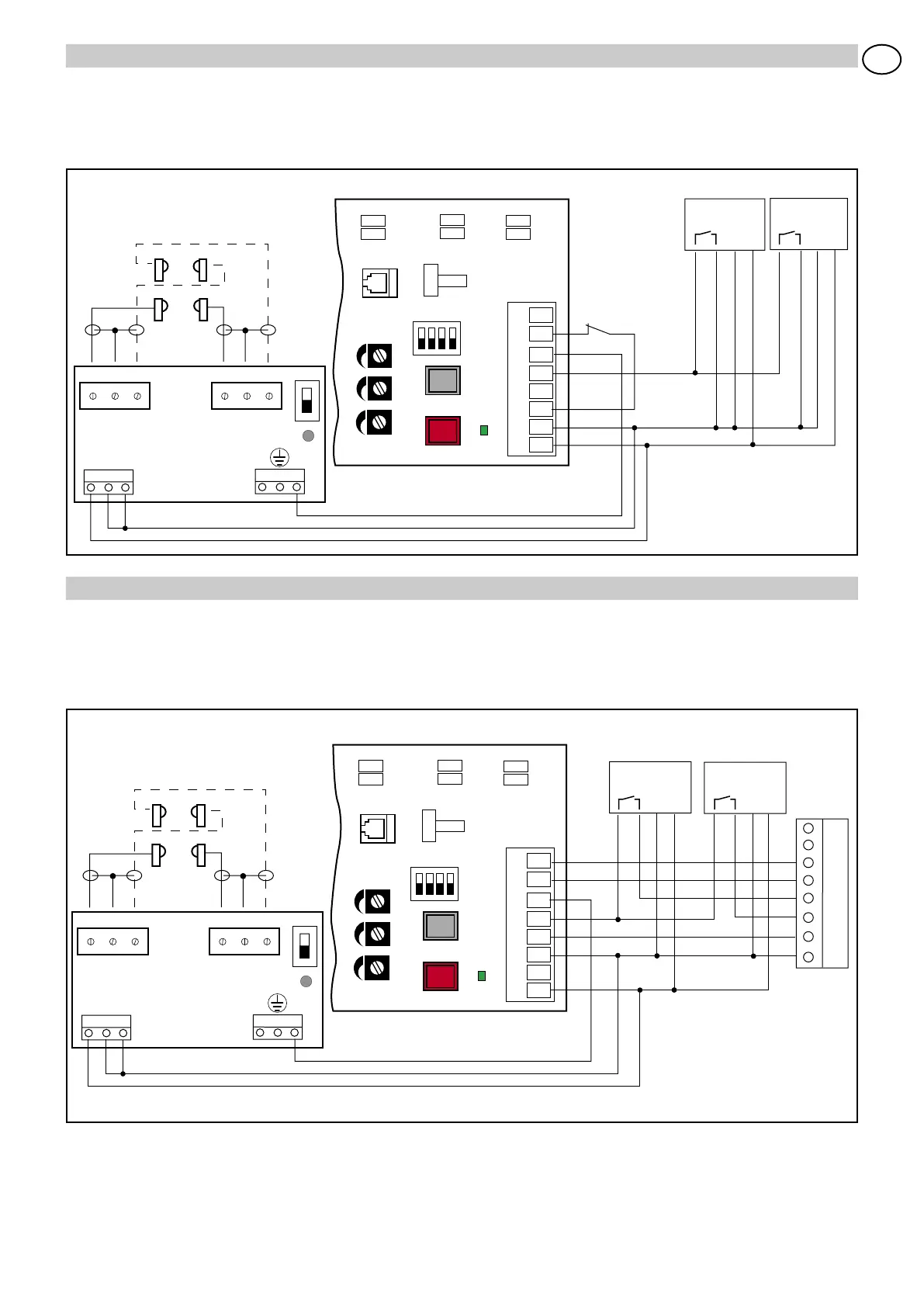

5. EXEMPLO DE APLICAÇÃO SEM SELECTOR
A automação abre com os comandos 1-3 dos RADAR, fecha automaticamente com a ponte 1-2. Efectua a segurança no com-
partimento de passagem com as foto-células Cel.
O interruptor entre 1-9 bloqueia a automação onde se encontra e nenhuma função normal ou de emergência é mais admitida.
6. EXEMPLO DE APLICAÇÃO COM SELECTOR ComH-ComK
A automação abre com os comandos 1-3 dos RADAR, fecha automaticamente em base à função escolhida no selector.
Efectua a segurança no compartimento de passagem com as foto-células Cel.
Com o selector na posição de STOP qualquer funcionamento normal e de emergência é excluído.
MOT
BL
OPEN
RP
DIP
R1
RESET
27
9
8
3
2
1
1
0
TC
on
off
3 41 2
POWER
ALARM
+
-
+
-
~
~
24 V
BAT
STOP
ENC
192C
1CELA
P1 SP P2 R1 SR R2
1
2
10
+ -
COM
N.O.
N.C.
Radar
A
24 V
+ -
Radar B
24 V
+ -
RX
RX
TX
TX
MOT
BL
OPEN
RP
DIP
R1
RESET
27
9
8
3
2
1
1
0
TC
on
off
3 41 2
POWER
ALARM
+
-
+
-
~
~
24 V
BAT
ENC
192C
1CELA
P1 SP P2 R1 SR R2
1
2
10
+ -
COM
N.O.
N.C.
RX
RX
TX
TX
29
28
27
9
B
A
1
2
Radar
B
24 V
+ -
Radar A
ComH-K
24 V
+ -
