PRG
ON
OFF
1 2 3 4 5 6
15 1413 0
1 5 8 9
TC
R1
Lampada / Lamp
Lampeggiante / Flashing light
Elettroserratura / Electric lock
Passo-passo / Step by step
Sicurezza di inversione /
Reversal safety contact
Stop
Uscita / Output 24 V= / 0,3 A

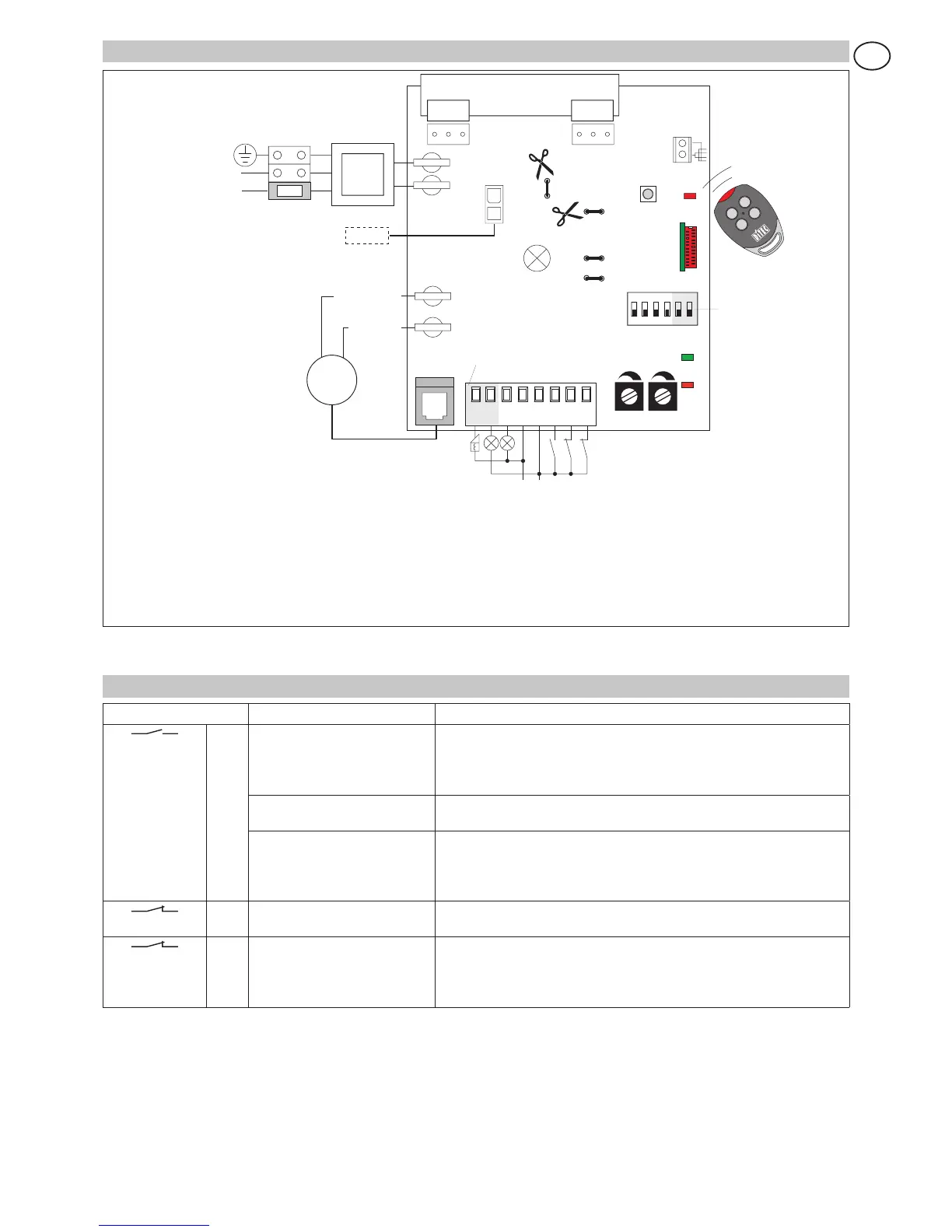

4. ELECTRICAL CONNECTIONS
ATTENTION: Make a jumper all the N.C. contacts if not used. Use only DITEC accessories and safety devices.
Control Function Description
1
5 N.O. STEP-BY-STEP With DIP1=OFF the closure of the contact activates the sequence:
open-stop-close-open.
Note: if
automatic closing is enabled, the STOP is not permanent but at
a time that is set by TC.
OPEN WITH
AUT
OMA
TIC CLOSING
With DIP1=ON and the automatic closure on, the closure of the contact
activates an opening operation.
OPEN WITHOUT
AUT
OMATIC CLOSING
With DIP1=ON
and TC=MAX, the closure of the contact activates an
opening operation.
With the automation idle, the closure of the contact performs the operation
opposite to that prior to the stop.
1
8 N.C.
REVERSAL SAFETY CONTACT
The closing of the contact during the closure manoeuvre causes the
movement to invert (re-opening).
1
9 N.C. STOP The opening of the contact causes the movement to stop and the auto-
matic closure to be disabled.
Resetting the
command, the door remains still until a 1-5 command or
a radio command is received.
4.1 Controls
