7
Assembly
Handle and Base Plate Mounting Bracket Assembly (continued)

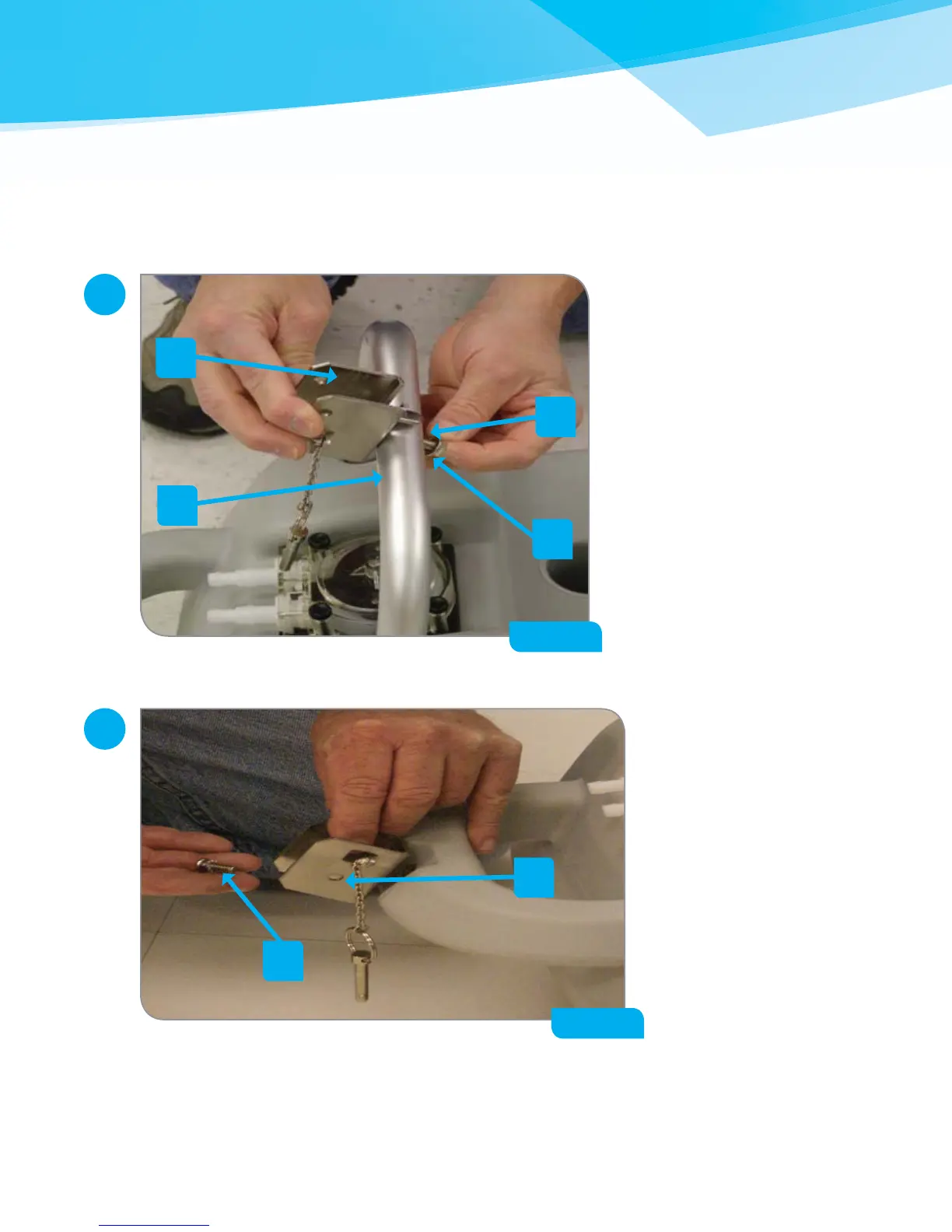

Attach upper mounting bracket (K) to
base plate support bar (F) with upper
mounting bracket bolt (P) and M6
locking nut (M). Hand tighten with
Phillips head driver on hand tool (S).
(Figure 9)
9
Make sure the hanging push
pin is on the closed side of the
TrailBlazer body.
10
Figure 9
F
M
K
P
Attach lower mounting bracket (J)
to body (A) with lower mounting
bracket bolt (L). Hand tighten
with Philips head driver on hand
tool (S). (Figure 10)
9
Make sure the hanging
push pin is on the closed
side of the TrailBlazer body.
11
Figure 10
J
L
To Next Page
