POWER IN
24VAC
WS-1
EQUIPMENT
(THERMOSTAT,
CONTROL
BOARD, etc.)
BLACK
GREEN
RED
ORANGE
WHITE
ALARM
(optional)
(Normally
open)

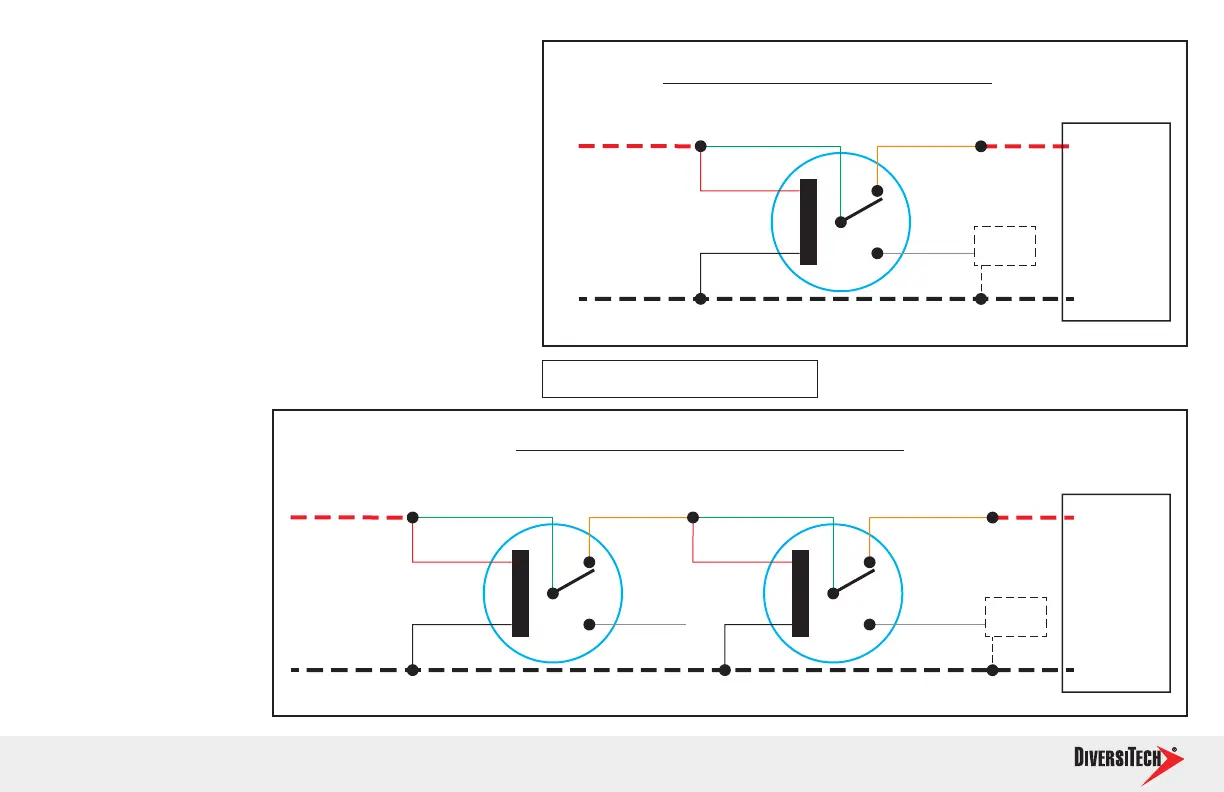

Typical Wet Switch Connection:
(Bold dashed lines indicate field wiring)
Two or More Wet Switches in Series:
Moisture detection by either switch interrupts the circuit
(Normally
closed)
WET SWITCH SPECIFICATIONS
LED INDICATORS:
Green: Power On, Normal State
Red: Moisture Detected
POWER REQUIREMENTS:
24 VAC, 50/60 Hz
1.5 Watts max (wet), <0.5 Watts (dry)
RELAY:
Isolated Contacts:
Normally Closed - 3 Amps (max) @ 240 V
Normally Open - 3 Amps (max) @ 240 V
RED
BLACK
RED
BLACK
POWER IN
24VAC
EQUIPMENT
(THERMOSTAT,
CONTROL
BOARD, etc.)
BLACK
RED
WHITE
(Not
connected)
RED
BLACK
RED
BLACK
BLACK
RED
WHITE
(Normally
open)
GREEN ORANGE
(Normally
closed)
WS-1
GREEN
ORANGE
(Normally
closed)
WS-1
Dashed lines indicate field wiring
ALARM
(optional)
