Page 33
CARE AND MAINTENANCE

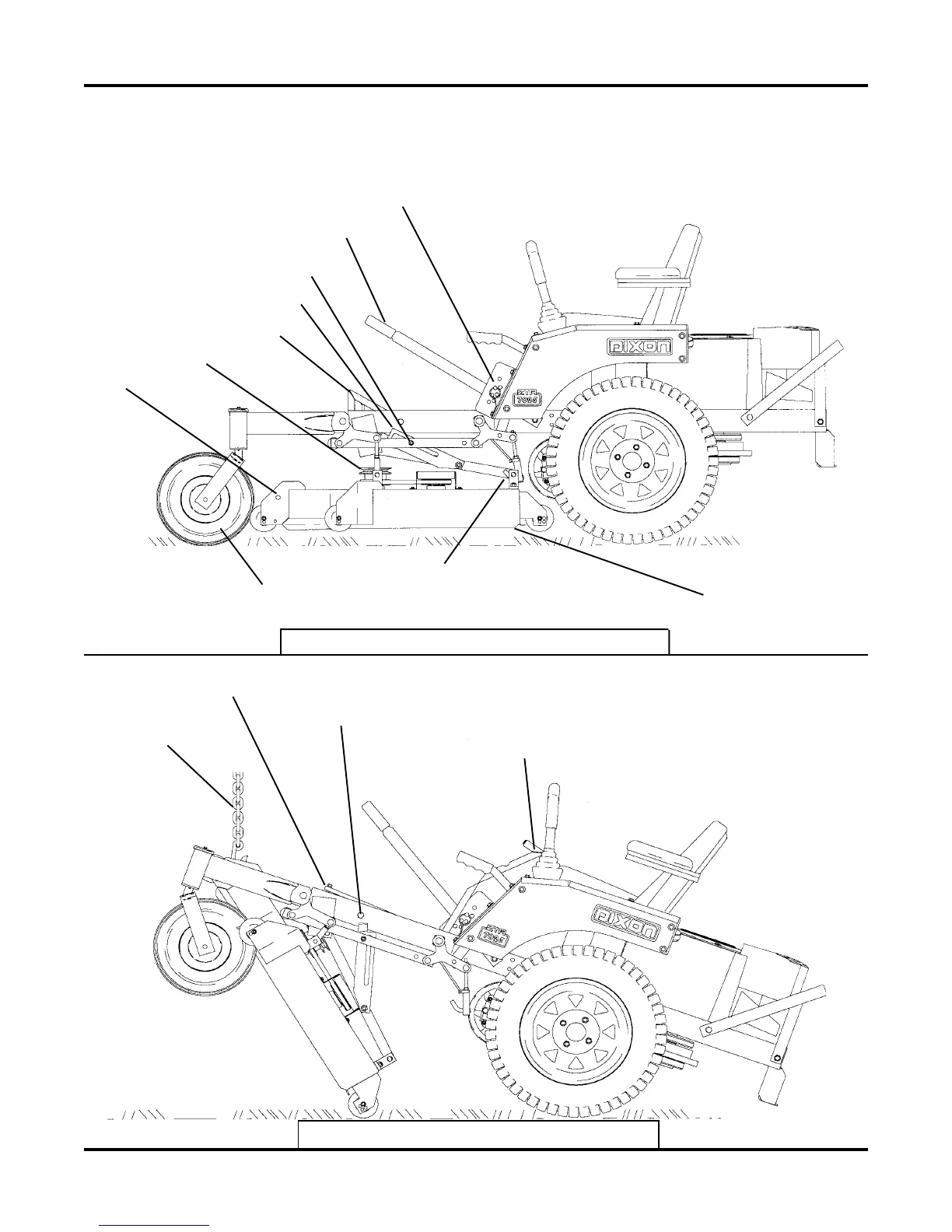

MOWER SHOWN IN OPERATION POSITION
Cut Height Adjustment Lever
Locking Pin
Deck Latch
Foot Deck
Center Deck Spindle
Deck Lift Bolt
Front Caster Wheels positioned out
of the way
Rear Deck Mounting Latch
Rear Corner
Cut Height Adjustment Pin
Engine to Deck Drive Belt
Hoist
Deck Latch in locked position
Foot Deck in up position
MOWER SHOWN IN SERVICING POSITION
To Next Page
