Disclaimer
+O
J1
Carefully
read
this
entire
document
and
all
safety
and
compliance guidelines provided before use.
Warnings
When using the
charging
hub
to
charge
the
Intelligent
Flight Batteries, it is
recommended
to
use the DJI
65W
Portable Charger or a USB Power Delivery charger
2 The charging hub is only
compatible
with the BWX169-
2420-i
4
76
Intelligent Flight
Battery.
DO
NOT
use
the
charging
hub
with other battery models
3 Place the charging hub on a flat and sturdy surface when
in
use
Make
sure
the
device
is
properly
insulated
to
prevent fire hazards.
4
DO
NOT
cover
the
battery
or
charging
hub
when
charging Otherwise. heat d1ss1pation will be affected
5 DO NOT touch the metal terminals on the charging hub.
6
If
there is any noticeable
buildup
on the metal terminals,
clean with a
dry
cloth
Usage
When
used
with a
compatible
charger,
the DJI
AVATAT"-
Battery Charging Hub can charge
up
to tour Intelligent Flight
Batteries
1n
sequence lrom a high
lo
low power level.

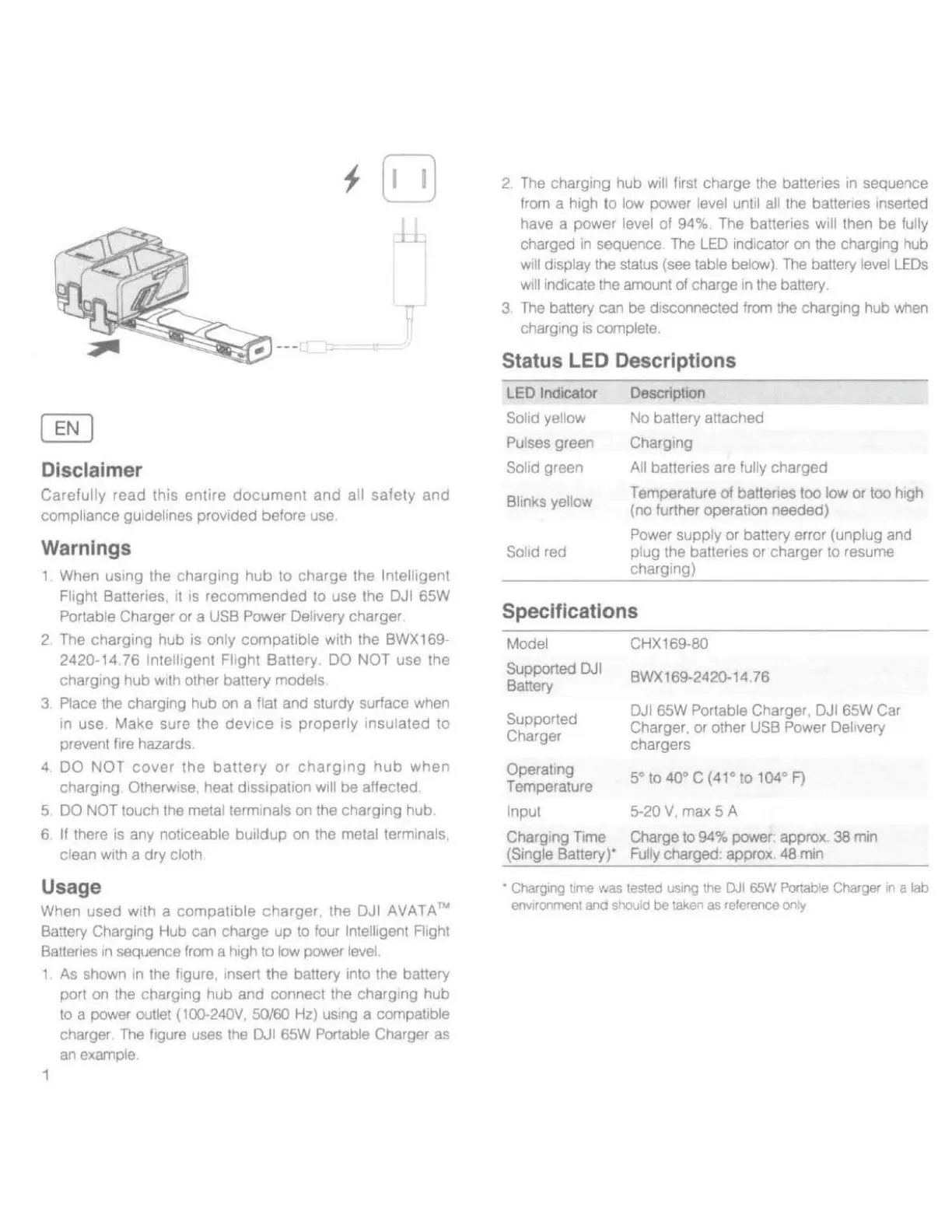

1 As shown in the figure, insert
the
battery into the battery
port on the charging
hub
and connect the charging hub
to a power outlet (100-240V, 50/60 Hz) using a compatible
charger The figure uses the DJI 65W Portable Charger as
an
example.
1
2. The charging hub will first charge the batteries in seque'lce
from a high
to
low power level until all the batteries inserted
have a
power
level
of
94% The batteries will then be fully
charged in sequence The
LED
indicator
on
the
charging hub
will display the status (see table below).
The
battery level LEDs
will indicate the amount of charge in the battery.
3. The battery can be disconnected from the charging hub when
charging
is
complete.
Status LED Descriptions
LED
Ind
i
cator
Solid yellow
Pulses green
Solid green
Blinks yellow
Solid red
Description
No battery attached
Charging
All batteries are fully charged
Temperature
of
batteries
too
low or too high
(no further operation needed)
Power supply
or
battery error (unplug and
plug the batteries or charger
to
resume
charging)
Specifications
Model
Supported
OJI
Battery
Supported
Charger
Operating
Temperature
Input
CHX169-80
BWX169-2420-14
76
DJI 65W Portable Charger,
OJI
65W Car
Charger, or other USB Power Delivery
chargers
5°
to
40° C (41°
to
104° F)
5-20
V,
max 5 A
Charging Time Charge
to
94% power approx. 38 min
(Single Battery)' Fully charged: approx 48 min
•
Charging
time
was
tested
using
the
DJI
65W
Portable
Charger
in
a
lab
environment
and
should
be
taken
as
reference
only
