DJI Goggles Racing Edition
DJI Goggles Racing Edition (hereafter abbreviated as “DJI Goggles RE”) are equipped
with high-performance displays and an ultra-low latency video downlink for use with DJI
TM
aircraft, giving you a real-time First Person View (FPV) aerial experience. DJI Goggles RE can
also be used to display HD videos, bringing you a more immersive high-denition viewing
experience. DJI Goggles RE support head tracking, allowing both aircraft and gimbal to be
controlled with head movements for a whole new style of ying. *
Precisely engineered for racing, DJI Goggles RE are compatible with DJI's advanced
OCUSYNC
TM
video transmission module, supporting both analog and 2.4/5.8 GHz dual-band
digital video signal with up to 7 km transmission distance and latency as low as 50 ms. ** DJI
Goggles RE comes with a set of three compatible antennas for different scenarios. The DJI
OcuSync Air System comes equipped with an array of powerful features, such as 1280×960
HD transmission, automatic Frequency-Hopping Spread Spectrum (FHSS) transmission,
and access to up to 19 selectable transmission channels. This module is compatible with a
variety of multi-rotor and xed-wing aircraft.

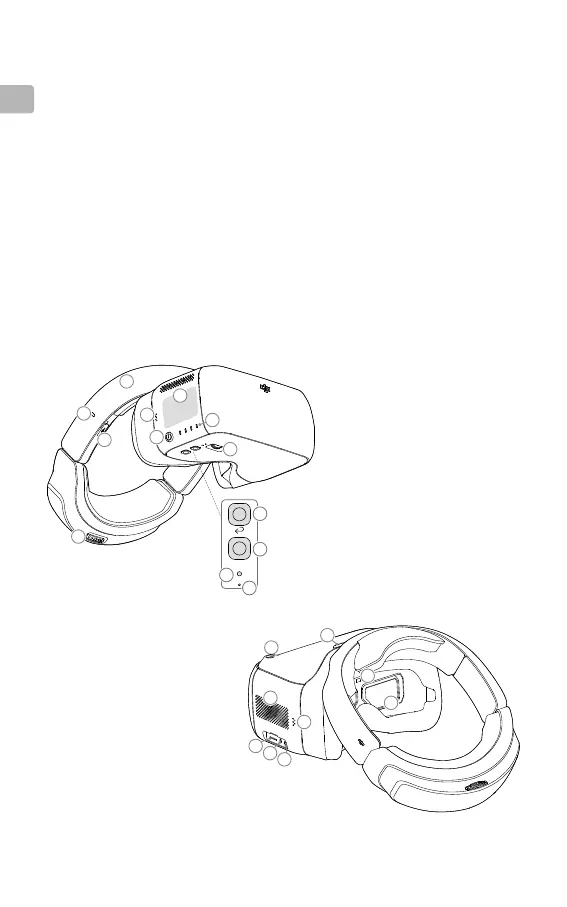

DJI Goggles RE
1. Touch Panel
2. Headband
3. Charging Status Indicator
4. Micro USB Port
5. Headband Knob
6. Speaker
7. Power Button
8. Battery Level Indicators
9. Back Button
10. Function Button
11. Link Button
12. Linking Status Indicator
13. IPD (Interpupillary
Distance) Knob
14. Lens
15. Proximity Sensor
16. Headband Buckle
17. Heat Vent
18. Micro SD Card Slot
19. 3.5 mm Audio Port
20. HDMI Type-D Port
21. Speaker
22. SMA Antenna Port
* Only some aircraft are supported. Please refer to the User Manual for specic models and operations.
** The DJI Goggles RE can reach their maximum transmission distance (2.4 GHz, FCC) in a wide open area with no
EMI (electromagnetic interference), achieving minimum latency in 480p50 live view mode.
21
22
15
14
18
19
20
17
16
1
2
3
4
5
13
6
7
8
Fn
9
10
11
12
