dji Goggles RE User Manual

EN

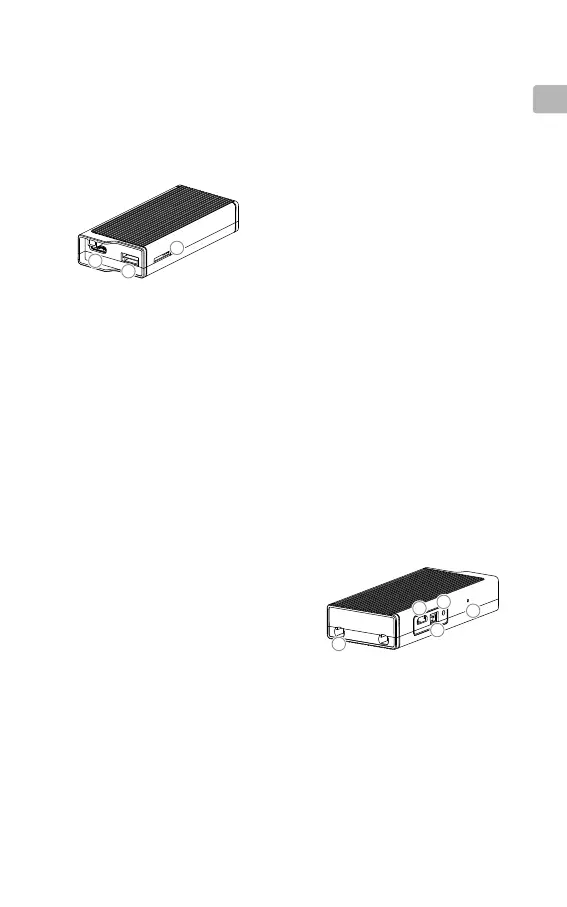

5
3
1
2
4
5
6
7
8
1. Camera Port*
Connects to the DJI OcuSync Camera.
2. S.Bus Port
Connects with the 3-in-1 Cable (Power,
S.Bus, UART), and connects to the
power, flight controller, and OSD port
based on the information below.
RED: Power
BLACK: Power GND
WHITE: UART RX (Connects to OSD TX)
GRAY: UART TX (Connects to OSD RX)
BROWN: Signal GND
YELLOW: S.Bus (Connects to Flight
Controller RX)
3. Micro SD Card Slot
Insert the Micro SD card to store the
recorded video.
* Note that both this port and the camera connector
plug are customized Type-C interfaces, and they are
not compatible with third-party equipment.
4. Antenna Ports (MMCX)
Used to attach the Air Unit antennas.
5. Micro USB Port
Connects to your PC for firmware
updates through DJI ASSISTANT
TM
2.
(When the Air Unit is powered on)
6. PPM Port
Connects to external devices that can
handle PPM signals via the PPM Cable.
Set the corresponding channel in DJI
Goggles RE to control the device remotely
with head movements. (coming soon)
RED: Power
BLACK: Signal GND
WHITE: PPM signal
7. Link Button
Press this button to link the DJI OcuSync
Air Unit with the DJI Goggles RE.
8. Linking Status Indicator
Indicates the linking status of the
DJI OcuSync Air Unit and the DJI
Goggles RE.
Before using this product, please read this manual fully to ensure correct operation.
www.dji.com/dji-goggles-re
DJI OcuSync Air Unit
