dji Goggles Quick Start Guide

EN
4
DJI Goggles
DJI Goggles are equipped with high-performance displays and an ultra-low latency video
downlink for use with DJI
TM
aircraft, giving you a real-time aerial First Person View (FPV)
experience. DJI Goggles can also be used to display HD videos, bringing you an immersive
high-denition viewing experience. DJI Goggles support head tracking, allowing aircraft and
gimbal to be controlled using head movements, introducing a new style of ying.*

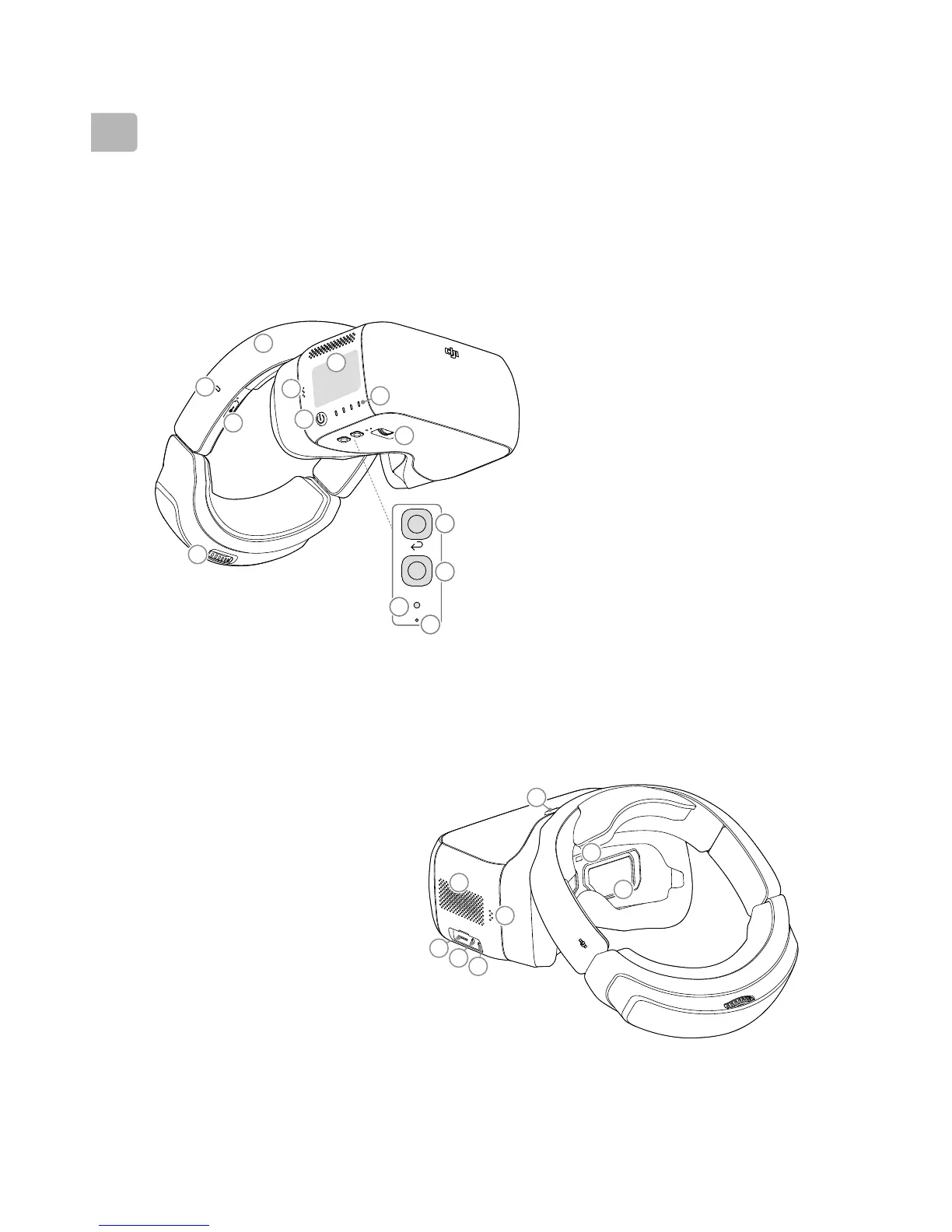

1. Touch Panel
2. Headband
3. Charging Status Indicator
4. Micro USB Port
5. Headband Knob
6. Speaker
7. Power Button
8. Battery Level Indicators
9. Back Button
10. Function Button
11. Link Button
12. Linking Status Indicator
13. IPD (Interpupillary
Distance) Knob
14. Lens
15. Proximity Sensor
16. Headband Buckle
17. Heat Vent
18. Micro SD Card Slot
19. 3.5 mm Audio Port
20. HDMI Type-D Port
21. Speaker
21
16
15
14
18
19
20
17
* Only some aircraft are supported. Please refer to the User Manual for specic models and operations.
1
2
3
4
5
13
6
7
8
Fn
9
10
11
12

dji Goggles Specifications

Display

screen size	5 inch × 2
screen resolution	3840 × 1080 (single screen: 1920 × 1080)
live view modes	1080p30, 720p60, 720p30

Power

battery capacity	9440 mAh
charger input	100-240 VAC, 50 / 60 Hz, 0.5 A
charger output	5 V 3 A / 9 V 2 A / 12 V 1.5 A

Operating Environment

operating temperature range	32° to 104° F (0° to 40° C)
communication frequency	2.4 GHz

Weight and Dimensions

weight (DJI Goggles Body)	495 g
weight (Headband)	500 g
dimensions (DJI Goggles Body)	195 × 155 × 110 mm
dimensions (Headband folded)	255 × 205 × 92 mm
