dji Goggles Quick Start Guide

EN
5

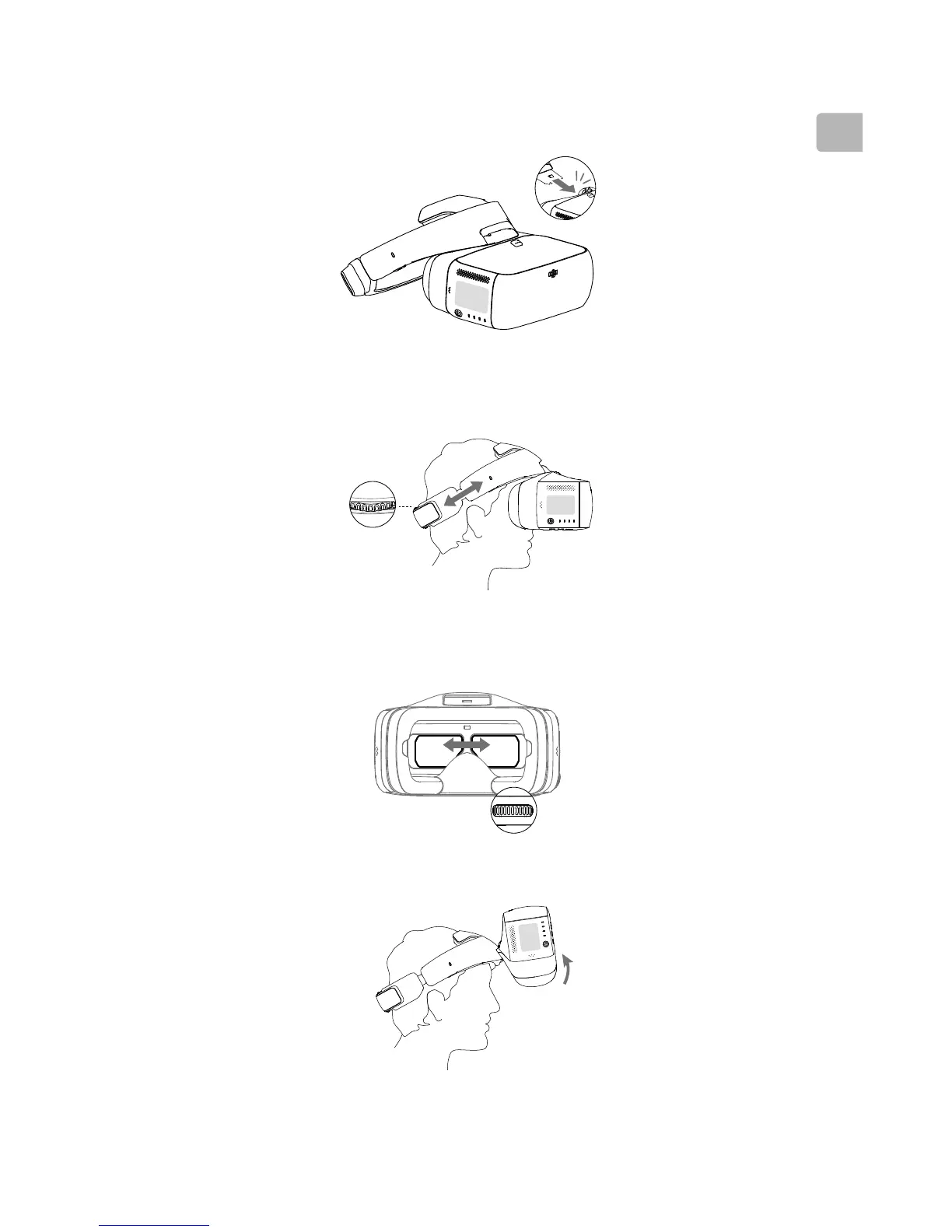

Installation and Wearing
Insert the Headband Buckle into the
slot above the DJI Goggles body.
Click
Adjust interpupillary distance.
Flip the DJI Goggles body to see outside.
Wear the DJI Goggles and
adjust the Headband.

dji Goggles Specifications

Display

screen size	5 inch × 2
screen resolution	3840 × 1080 (single screen: 1920 × 1080)
live view modes	1080p30, 720p60, 720p30

Power

battery capacity	9440 mAh
charger input	100-240 VAC, 50 / 60 Hz, 0.5 A
charger output	5 V 3 A / 9 V 2 A / 12 V 1.5 A

Operating Environment

operating temperature range	32° to 104° F (0° to 40° C)
communication frequency	2.4 GHz

Weight and Dimensions

weight (DJI Goggles Body)	495 g
weight (Headband)	500 g
dimensions (DJI Goggles Body)	195 × 155 × 110 mm
dimensions (Headband folded)	255 × 205 × 92 mm
