dji Phantom 1 User Manual

DJI Phantom 1 & FC40 setup – Getting Started Guide
Copyright - Droneflyers.com - 2016
USB and Battery Connection for Upgrades and Settings
1. Download and install the any drivers (windows only, none needed for mac) and the NAZA
Assistance programs from DJI install them – drivers first, then the Assistant program.

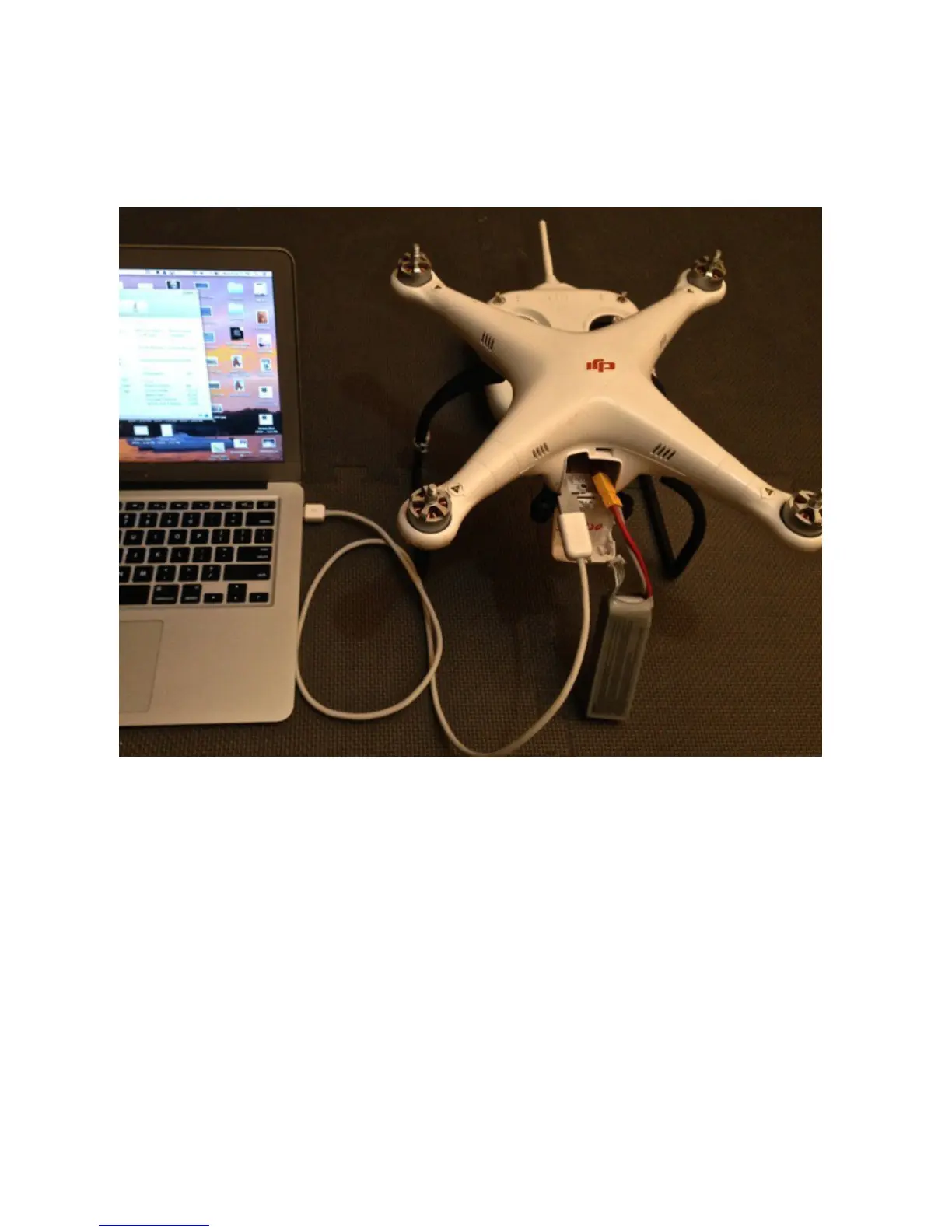

2. Connect your Phantom USB to your computer – open the battery compartment of your
Phantom (no battery installed) and locate the USB cable inside – pull it out and connect it to
your computer. Now turn on the DJI remote (transmitter) – put the S1 and S2 switches in the
UP position – and connect the battery to the DJI Phantom – leaving the battery hanging
outside the quadcopter. The LED on the FC40 should turn solid green when connected to

dji Phantom 1 Specifications

General

Product color	Red, White
Frequency band	2.4 GHz
Maximum operating distance	1000 m

Weight and Dimensions

Width	350 mm
Height	190 mm
