dji PHANTOM 3 Advanced Manual

DJI Phantom 3 Advanced Manual
Last updated March 27 2020 Page 10 of 16

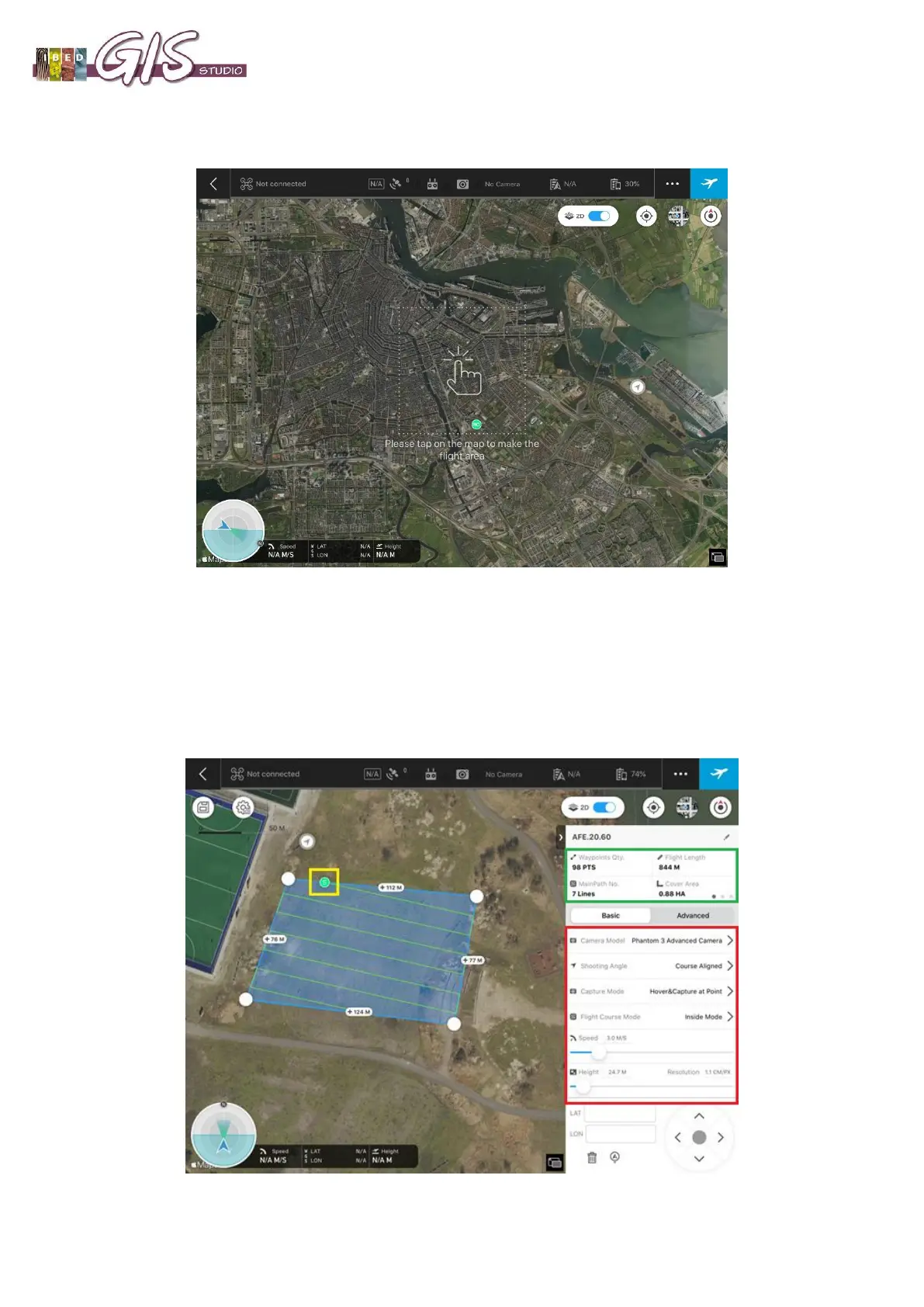

Follow the instructions: ‘Tap on the map to make a flight area’. It is easiest to first zoom to the area
you wish to fly and then tap to make a flight area.
Once you tapped on the map, a flight area will be created and a menu will pop-up in the right part of
your screen. In this menu, you can modify all the settings for your flight plan. The upper part of the
menu (green box) is an informative part. You can’t directly change these values, but they will
automatically change when you change the settings in the lower part (red box) or when you change
the size of your area. You can modify the flight area by dragging the corners of the area to the desired
position. The S in the green circle (yellow box) indicates the starting point of your flight.

dji PHANTOM 3 Specifications

General

Max Flight Time	23 minutes
Battery Capacity	4480 mAh
Weight	1280 g (Including battery and propellers)
Max Ascent Speed	5 m/s
Max Descent Speed	3 m/s
Max Service Ceiling Above Sea Level	6000 m
GPS Mode	GPS/GLONASS
Battery Voltage	15.2 V
Battery Type	LiPo 4S
Max Charging Power	100 W
Lens FOV	94°
Aperture	f/2.8
Shutter Speed	8s -1/8000s
Max Image Resolution	4000 x 3000
Max Bitrate	40 Mbps
Max Speed	16 m/s (ATTI mode, no wind)
Video Resolution	2.7K: 2704x1520p 24/25/30 (29.97); FHD: 1920x1080p 24/25/30/48/50/60
Operating Temperature	0°C to 40°C
Transmitter Power (EIRP)	20 dBm (FCC), 14 dBm (CE)
Video Recording Modes	2.7K, FHD
Camera Sensor	1/2.3" CMOS
ISO Range	100-3200 (video), 100-1600 (photo)
Photo Formats	JPEG, DNG
Video Formats	MP4/MOV (H.264)
Remote Controller Operating Frequency	2.4 GHz
Mobile Device Holder	For mobile phones or tablets
Hover Accuracy Range	Vertical: +/- 0.5 m; Horizontal: +/- 1.5 m
