dji Phantom 4 RTK Setup Guide

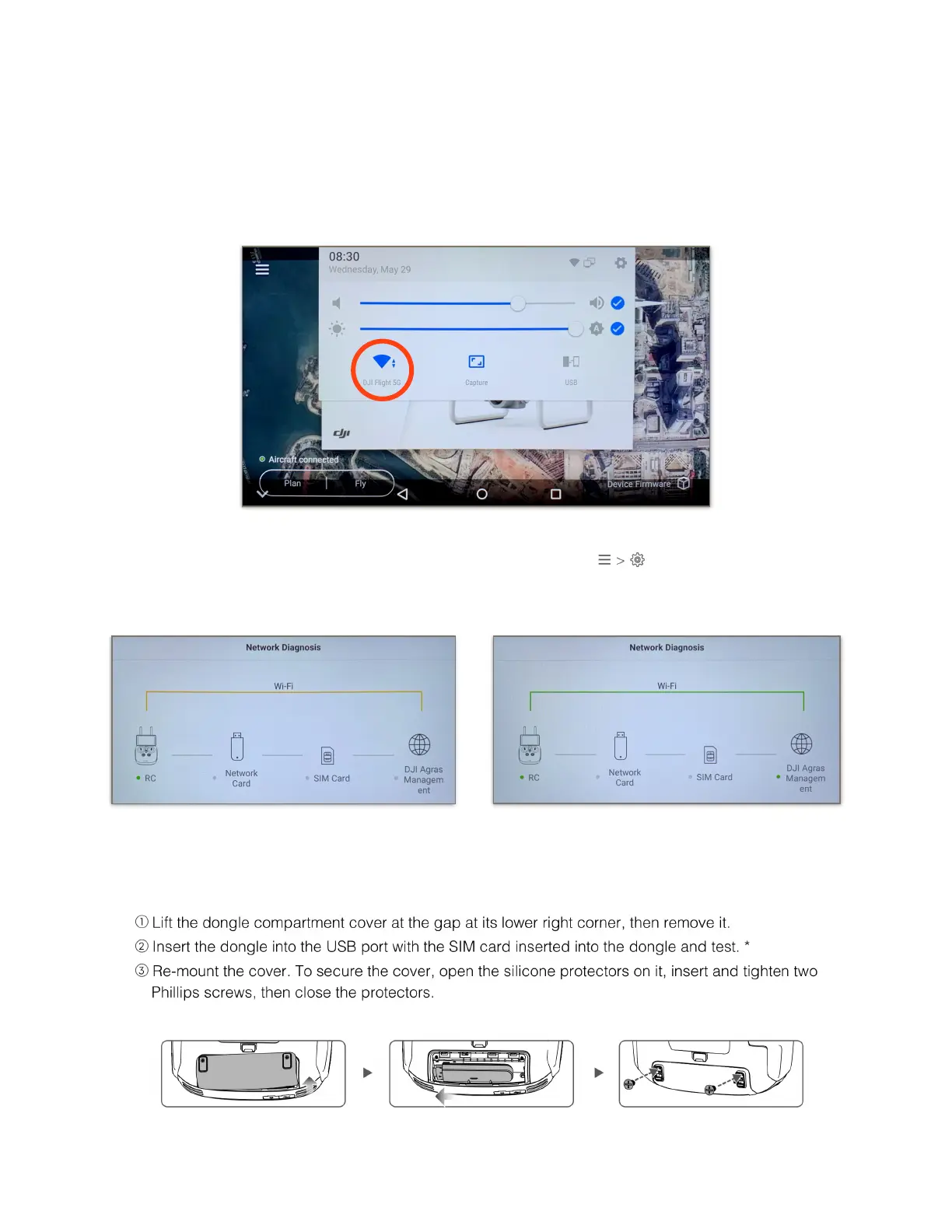

Wi-Fi Connection:"
On the home screen, scroll down from the top of the screen to show the notification center,
enable Wi-Fi connection by tap on the “Wi-Fi” icon once, tap and hold the “W-Fi” icon to
enter the Wi-Fi setting page. Under Wi-Fi settings page you can connect the remote
controller with your local Wi-Fi network."
Test procedure: Press the remote controller power button once, then press again and hold
to turn the remote controller on. In the DJI GS RTK app tap and select Network
Diagnostics. If the statuses of all the devices in the network chain are shown in green, the
dongle and the SIM card are functioning properly."
"
4G LTE Connection:"
Install a compatible 4G LTE Dongle* as follow: !
2
Passed
Failed

dji Phantom 4 RTK Specifications

General

Type	Quadcopter
Product color	White
Construction type	Ready-to-fly (RTF)
Suitable for outdoor use	Yes
Maximum speed	16.1 m/s
Frequency band	2.4 - 2.483 GHz
Number of rotors	- rotors
Maximum flight time	30 min
Maximum ascent speed	6 m/s
Maximum descent speed	3 m/s
Maximum weight capacity	- kg
Horizontal hover accuracy	0.1 m
Maximum operating distance	- m
Megapixel	20 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Camera shutter speed	8 - 1/8000 s
Image formats supported	JPEG
Video formats supported	H.264
Maximum image resolution	5472 x 3648 pixels
Maximum video resolution	3840 x 2160 pixels
Field of view (FOV) angle	84 °
Built-in processor	-
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
Number of waypoints	199
Moving control functions	Downward, Forward
Operating frequency	2400 - 2483/5725 - 5850 MHz
Battery voltage	15.2 V
Battery capacity	5870 mAh
Transmitter battery capacity	6000 mAh
Output power	160 W
Operating temperature (T-T)	0 - 40 °C
Cables included	AC, Micro-USB, USB Type-C
Memory card included	MicroSD
Included memory card size	16 GB

Weight and Dimensions

Battery weight	468 g
