dji PHANTOM 4 Flight Manual

Calibrations
Dji Phantom 4 - Compass
•
Compass Calibration Procedures
• Choose an open area to carry out the following procedures.
•
Ensure that the compass is calibrated. If you did not calibrate the compass as part of your pre-flight preparations, or if you have
moved to a new location since the last calibration, tap the Aircraft Status Bar in the app and select “Calibrate”, then follow the on-
screen instructions.

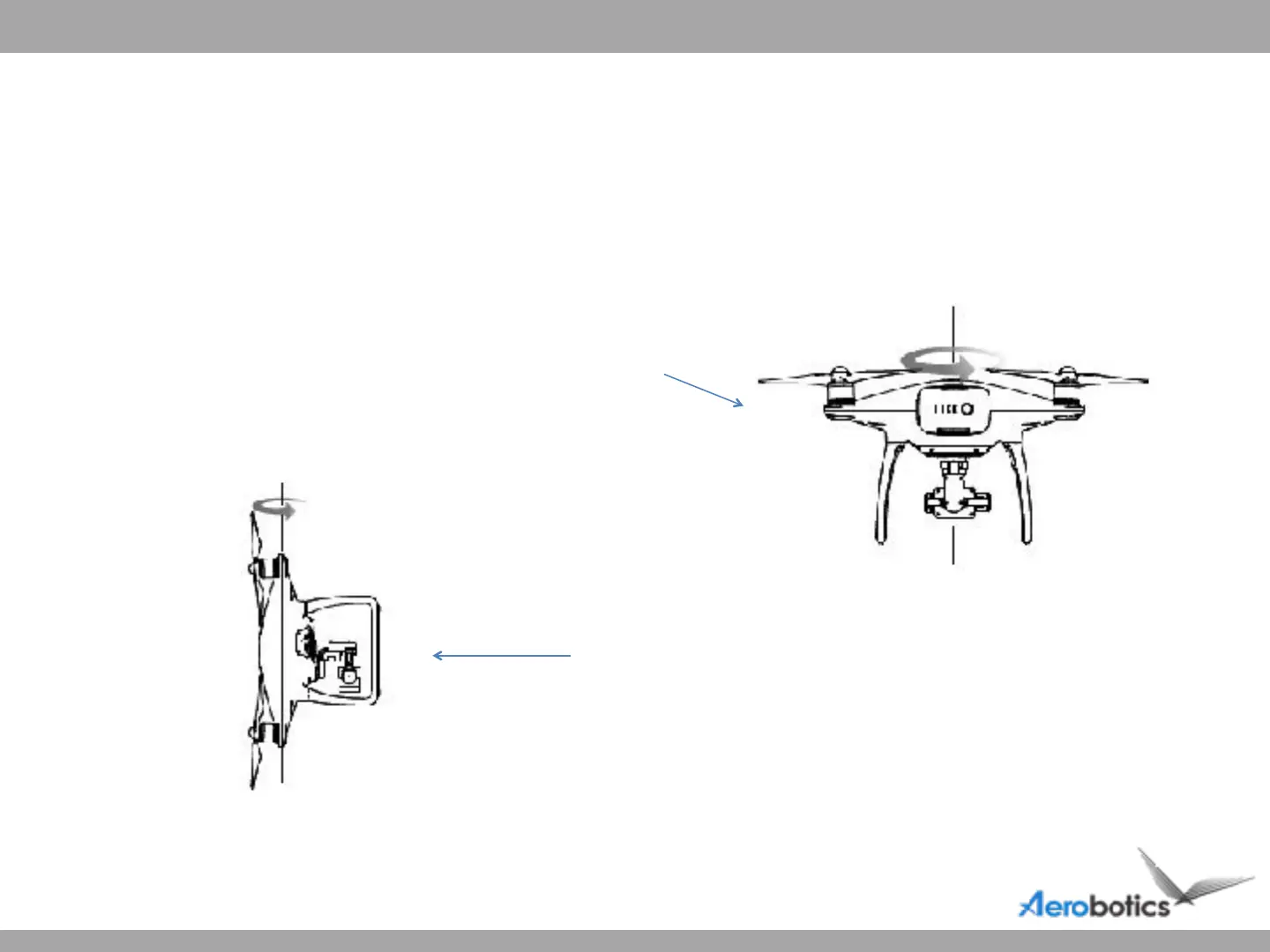

• Hold the aircraft horizontally and rotate 360 degrees.
The Aircraft Status Indicators will display a solid green light.
•
Hold the aircraft vertically, with nose pointing downward, and
rotate it 360 degrees around the center axis. Recalibrate the
compass if the Aircraft Status Indicator glows solid red.

dji PHANTOM 4 Specifications

General

Product color	White
Frequency band	2.4 - 2.483 GHz
GPS (satellite)	Yes
Number of rotors	4 rotors
Maximum weight capacity	- kg
Maximum operating distance	5000 m
Number of propeller blades	2
Moving control functions	Downward, Forward, Turn left, Turn right, Upward
Cables included	USB
Memory card included	MicroSD
Megapixel	12 MP
Video resolutions	1280 x 720, 1920 x 1080, 2704 x 1520, 3840 x 2160, 4096 x 2160 pixels
Maximum frame rate	60 fps
Supported video modes	720p, 1080p
Maximum video resolution	4096 x 2160 pixels
Compatible memory cards	MicroSD (TransFlash)
Battery voltage	7.4 V
Battery capacity	6000 mAh

Weight and Dimensions

Width	289.5 mm
Height	196 mm
Weight	1380 g
