may differ, and the robot has built-in limit protection in software, please use the slider to manually control the robotic arm to
the target position on the operation interface, use the “robotic arm current position” block to obtain the current robotic arm
coordinate information, and then debug the program.

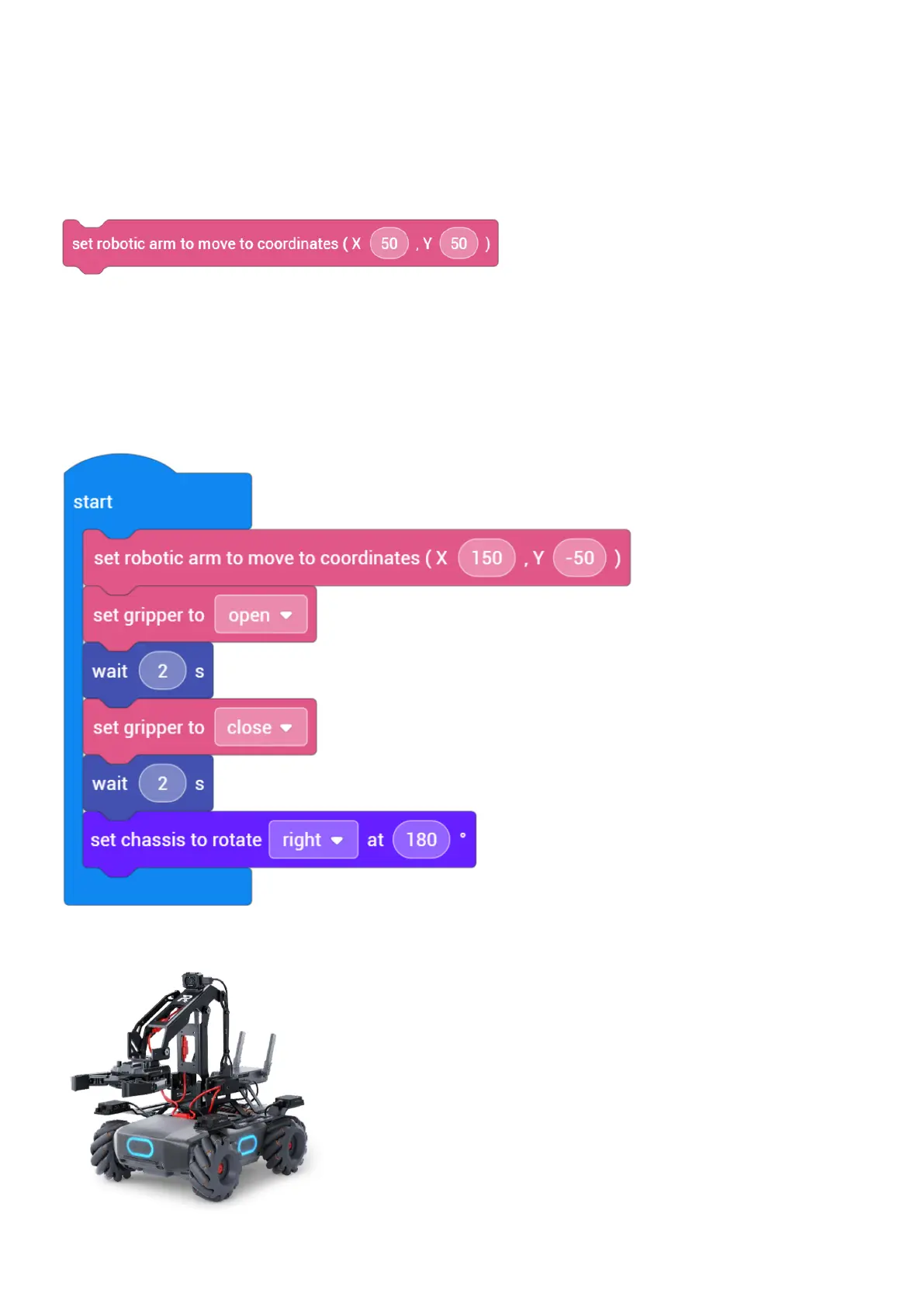

6. Set robotic arm to move coordinates (X (50), Y (50))
(1) Description: Set robotic arm to move to a specified position. The front and back direction along the body is X while the
vertical direction along the body is Y. The unit is millimeter.
(2) Type: Execution block
(3) Example: Grasp objects
Place a water bottle in front of the robot and control the robotic arm so that it can accurately reach the target position. After that,
use the gripper to grasp the bottle then finally turn the robot around.
