Spreading Wings S900
User Manual
12
©
2014 DJI. All Rights Reserved.

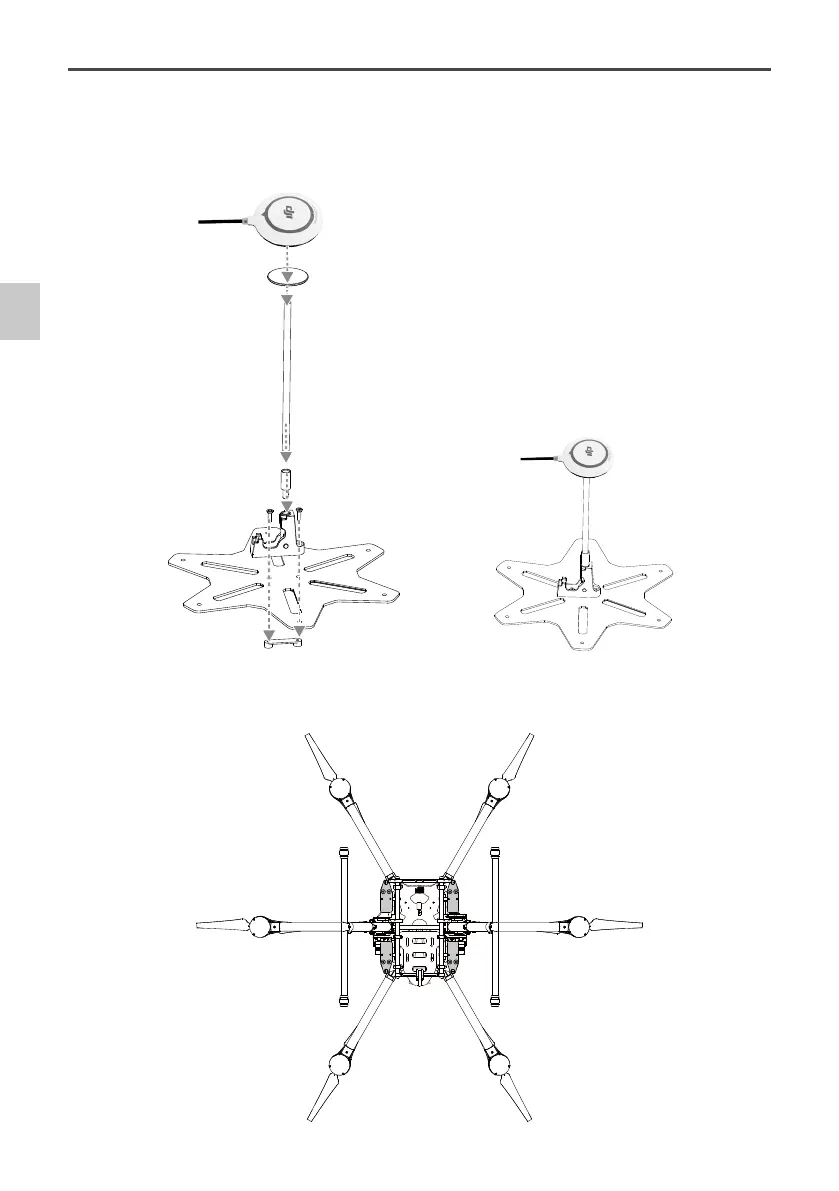

4. Attach the GPS collapsible mount to the center frame using M2.5×8 screws.
5. Mount a GPS module to the GPS mount with a bracket. Ensure the arrow points toward the nose and avoid
catching your ngers in the bracket when folding for transportation.
6. The other reserved positions are indicated in the diagram below and can be used for mounting a receiver,
LED ight indicator, iOSD module and wireless video transmission module.
M1
M2
Mounting Electronics and Wiring
To Next Page
