Make sure the gimbal connector on the aircraft is positioned correctly when
mounting. Otherwise, the camera cannot be mounted.
•
Remove the L1 by pressing the button on the aircraft used for detaching the gimbal
and camera.
•
Put the P1 with the lens attached in the storage box. It is not recommended to repeatedly
disassemble and assemble the lens.
•
Only remove the P1 after powering off the aircraft.
•
Detach the gimbal from the aircraft during transportation or storage. Otherwise, the
service life of the damper balls may be shortened or they may even be damaged.
•
Before takeoff, make sure that the SD card cover is closed properly. Otherwise, it
may obstruct the gimbal arm from moving and cause the motor to overload.

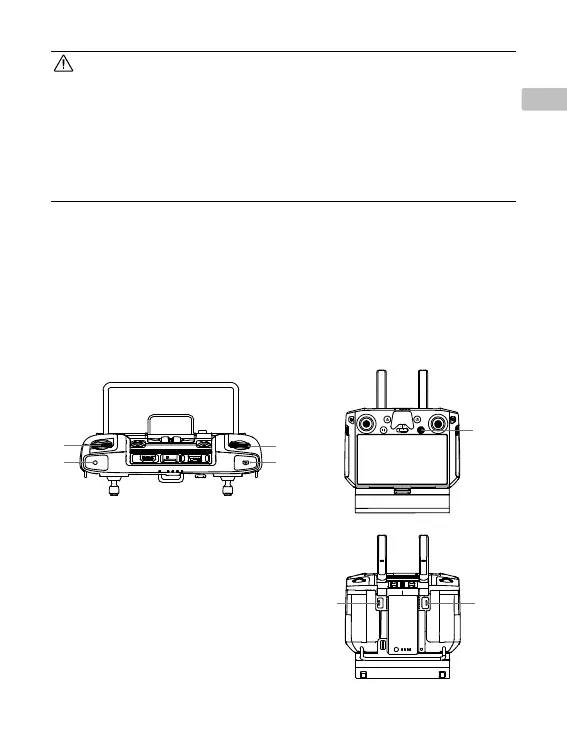

Camera Controls
Remote Controller
The MATRICE
TM
300 RTK remote controller is used as an example below. Adjust the tilt of the
gimbal using the left dial and adjust the pan using the right dial. Press the shutter button or
record button to take photos or record video. Toggle the 5D button to adjust the EV value. The
customizable C1 button can be used to recenter the gimbal and the customizable C2 button can
be used to switch between the main and auxiliary screen.
1
2
3
4
5
1. Left Dial
2. Record Button
3. Shutter Button
4. Right Dial
5. 5D Button
6. Customizable C2 Button*
7. Customizable C1 Button*
76
* The function of this button can be customized.
