dji ZENMUSE P1 Quick Start Guide

4
EN

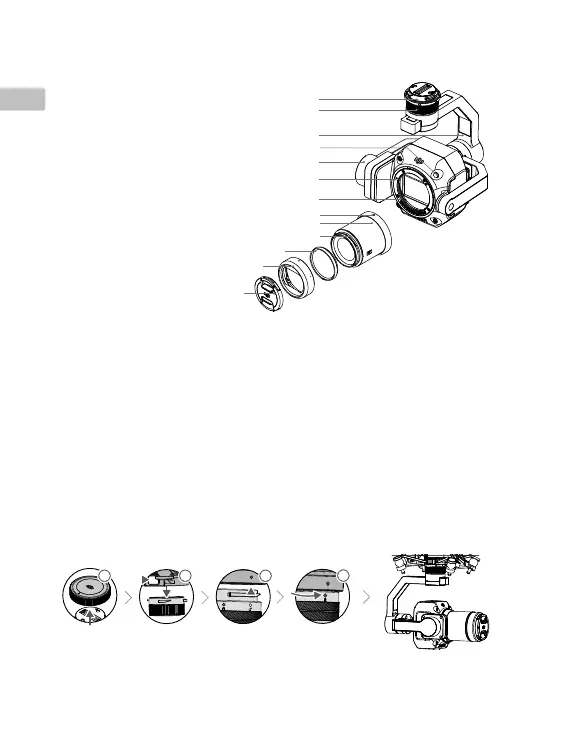

Overview
1. Gimbal Connector
2. Pan Motor
3. Roll Motor
4. Lens Release Button*
5. Tilt Motor
6. Lens Mounting Index
7. Lens Mount
8. Lens Mounting Index
9. Lens**
10. Lens Hood Mounting Index
11. Balancing Ring
12. Lens Hood
13. Lens Cap
1
2
5
6
7
3
4
8
9
10
11
12
13
* DO NOT press the lens release button while attaching the lens.
** The DJI DL 35mm F2.8 LS ASPH Lens (ENTERPRISE) is included with the Zenmuse P1. Contact local
dealers for more information on how to purchase other compatible lenses. Refer to Specications to check
supported lens models.
Installation
1. Remove the gimbal cap.
2. Press the button on the aircraft used for detaching the gimbal and camera. Rotate the gimbal cap on
the aircraft to remove.
3. Align the white dot on the gimbal with the red dot on the aircraft and insert the gimbal.
4. Rotate the gimbal lock to the locked position by aligning the red dots.
2 3
4
11

dji ZENMUSE P1 Specifications

General

Country of origin	China
Power consumption (max)	20 W
Product color	Black
Compatible products	DJI Matrice 300 RTK
International Protection (IP) code	IPX4
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	-20 - 60 %
Megapixel	45 MP
Maximum image resolution	8192 x 5460 pixels
ISO sensitivity	100, 25600
Image stabilizer	Yes
Maximum aperture number	16
Minimum aperture number	2.8
Field of view (FOV) angle	63.5 °
Fastest camera shutter speed	1/2000 s
Slowest camera shutter speed	1 s
Compatible memory cards	SD
Maximum memory card size	512 GB
Maximum frame rate	60 fps
Video formats supported	MOV, MP4
Maximum video resolution	3840 x 2160 pixels
Mechanical pan range	-320 - 320 °
Mechanical roll range	-55 - 55 °
Mechanical tilt range	-130 - 40 °
Wi-Fi	-

Weight and Dimensions

Depth	129 mm
Width	166 mm
Height	198 mm
Weight	800 g
