DK2 BCR790E - Step 2: Outer Rack Assembly

Gen.1 - v.230227 | 13

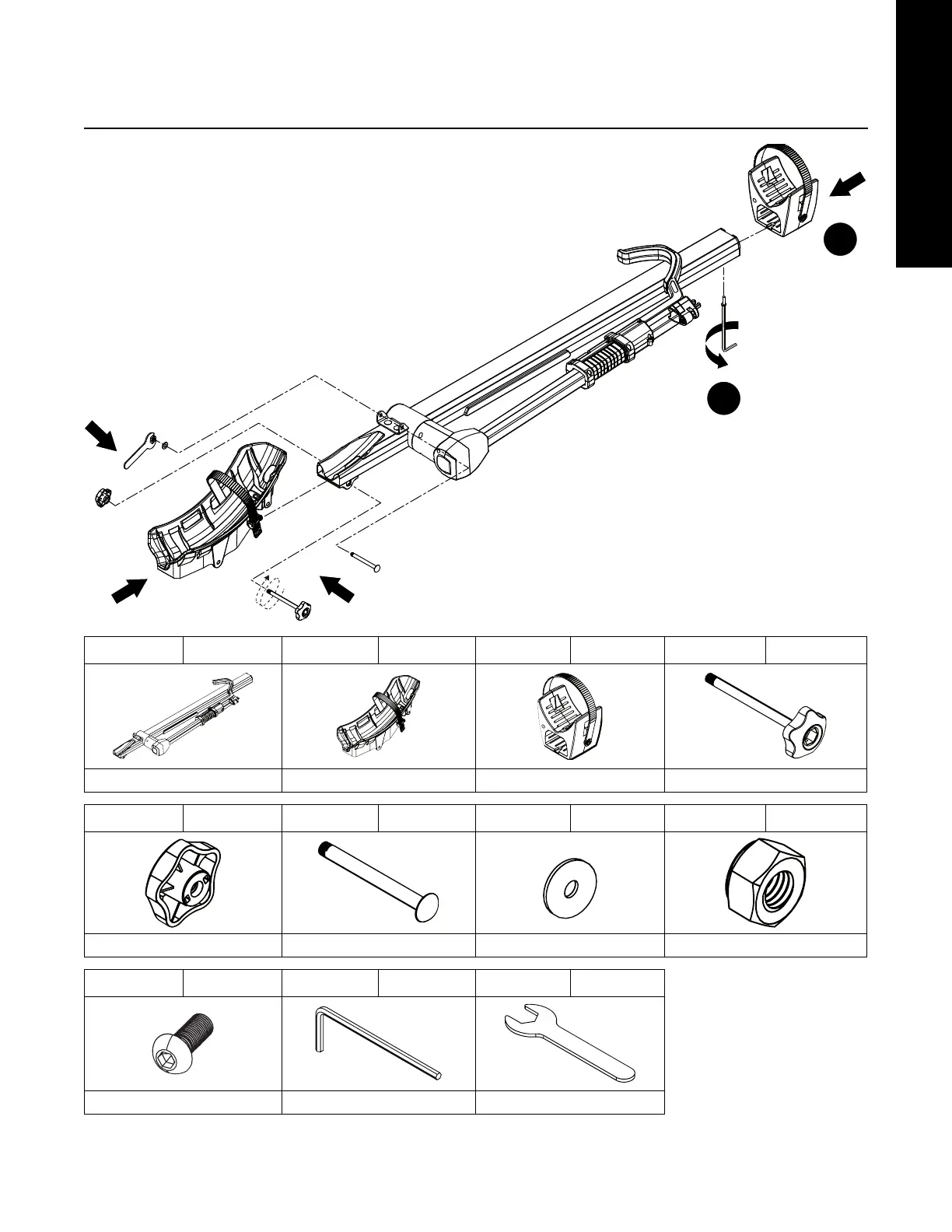

STEP 2: OUTER RACK
D2 x1 D3 x1 D4 x1 D5 x1
Outer Rack Front Wheel Cradle Rear Wheel Cradle M8x105 Adjustment Handle Base
D6 x1 D7 x1 D8 x1 D9 x1
M8 Adjustment Handle M8x80 Screw Ø8 Washer (Small) M8 Hex Nut
D10 x1 F x1 G x1
M6x20 Screw S5 Allen Key S13 Wrench
1
2
