DLA ENGINE OPERATING-INSTRUCTION
MANUAL
04-21-21 Copyrighted Material
Owner’s Manual All Rights Reserved 03180-10000
Page - 22 DLA 32, 58, 64, 64-I2, 116, 116-I2 & 128cc, 180c, 232cc Rev. A.05.15

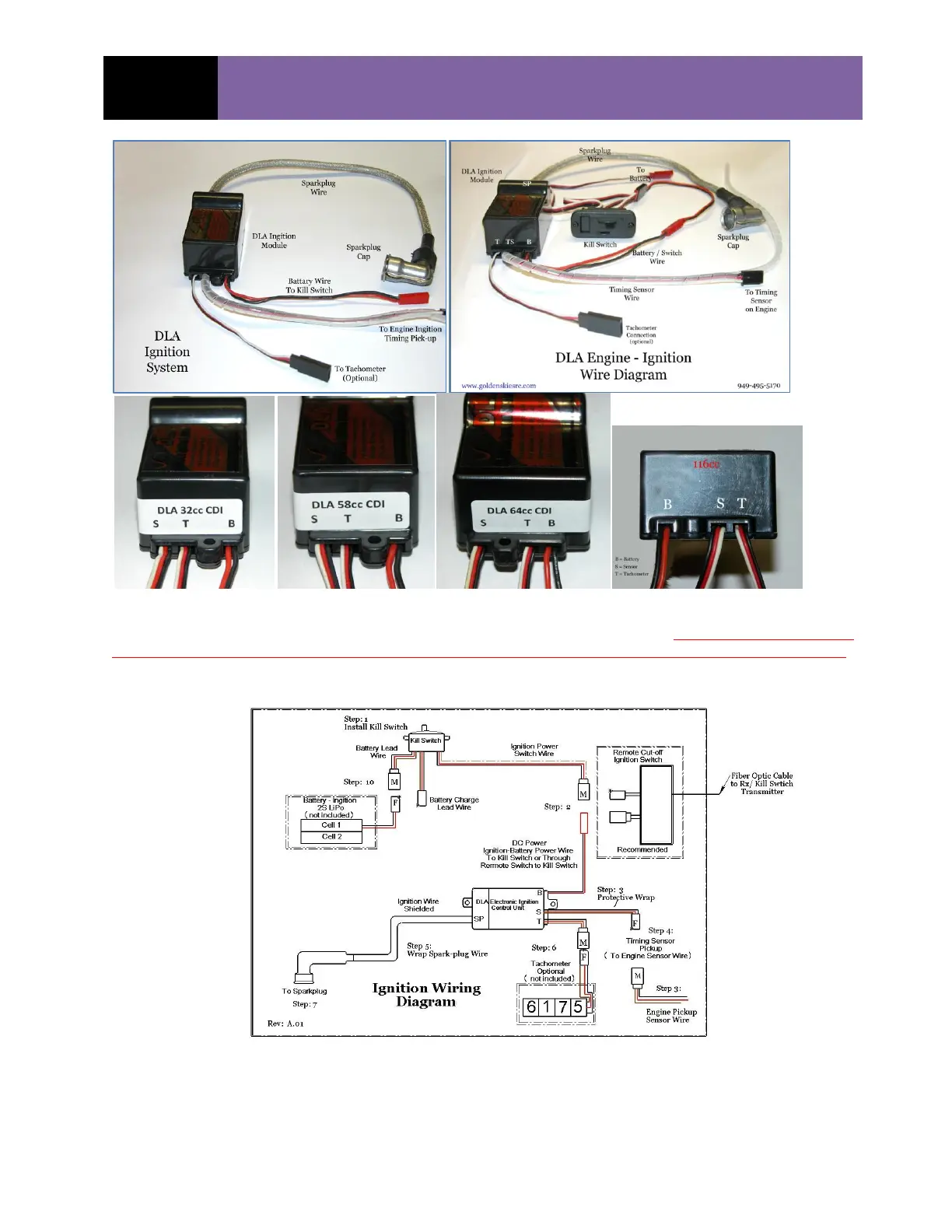

The above CD Ignition pictures are the most current configurations, older CDI’s may vary; check the connector sex for
correct “Sensor, Tachometer & Battery” wiring. This wiring arrangement may vary. Note: The tachometer wire gauge is
slightly less than the Sensor wire gauge. DO NOT USE AN RCEXL TACHOMETER WTH DLA CD IGNITIONS.
IGNITION TIMING, SENSOR: (How to set the timing sensor)
