Most aircraft manufactures will provide both Vertical and Horizontal alignment lines (V
c/l
and
H
c/l)
on the firewall. The template has corresponding V
c/l
and H
c/l
lines which are aligned to those

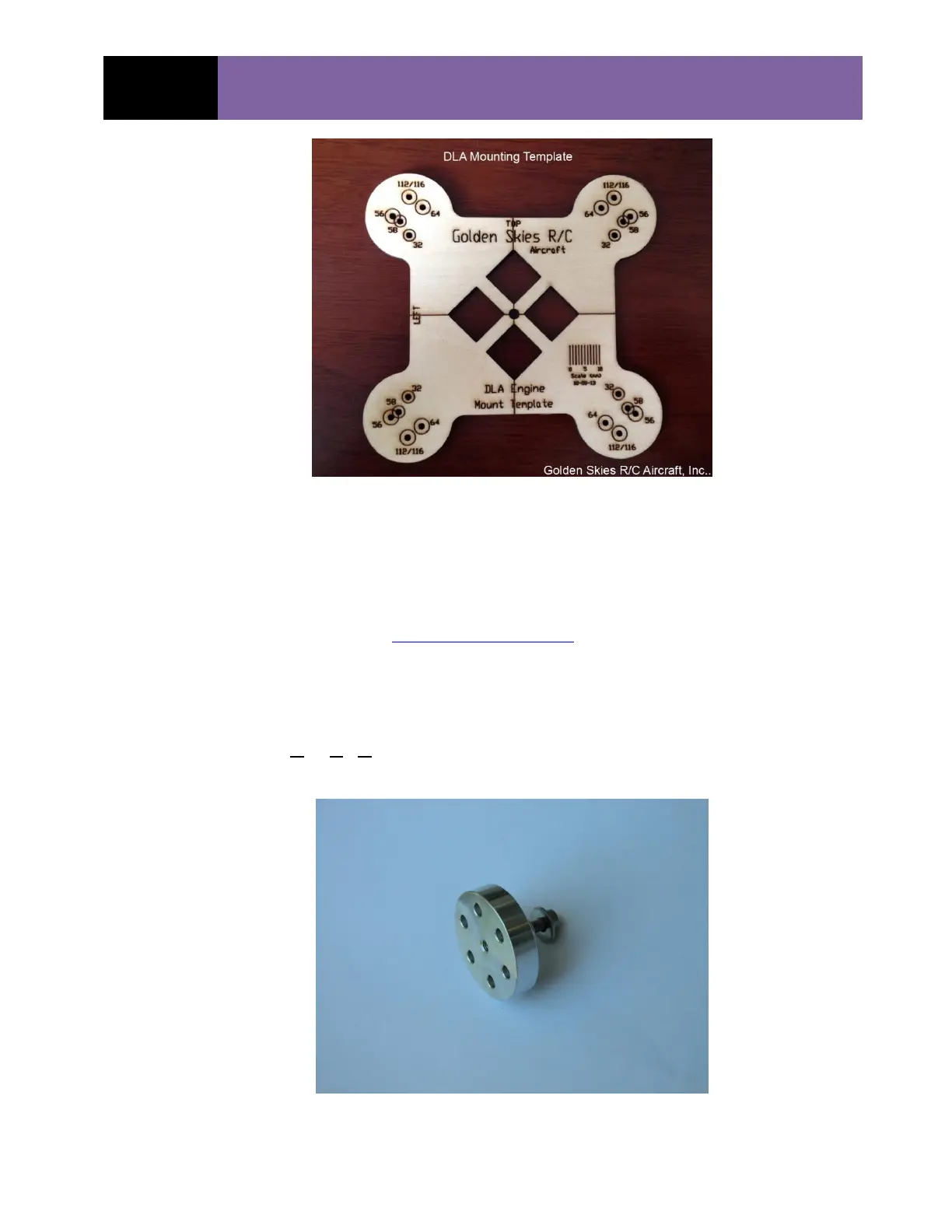

scribed on the firewall to accurately locate mounting hole. A paper mounting guide is provided at
the end of this operation manual, but is not as accurate.
Laser Cut Template is available through Golden Skies R/C Aircraft, Inc.
www.goldenskiesrc.com
PN: 03180-50005-A ($9.99)
DRILL BIT GUIDE – (for Propeller Bolts)
Specifically engineered Drill Bit Guides (DBG) for each DLA Engine is the preferred and most
accurate method for locating and drilling the holes in the propeller hub for the Propeller Bolts.
