PARTS
DBBS-3500 Complete 15” Projection Bumper Assembly
DKIT-3540 Bumper & All Hardware (weldment not included)
Item Quantity Part Number Description
1 1 DOTH-3537 12” BB Weldment
2 1 DOTH-3505 Rubber - Tuf-Cord
3 4 DOTH-2056 Hex Head Cap Screw
4 4 DOTH-2210 Wahser - Flat - Zinc Plated
5 4 DOTH-2208 Washer - Flat
6 4 DOTH-2129 Nylon Lock Nut
2 DBBS-3506 15” Projection x 18” high (option)
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL:
`
1/32"
DECIMAL:
.00 =
`
.01"
.000 =
`
.005"
ANGULAR:
`
1
~
DRAWN BY
CHECKED BY
DRAWING NO.
DATE
SR
2/11/2005
DBBS-3500

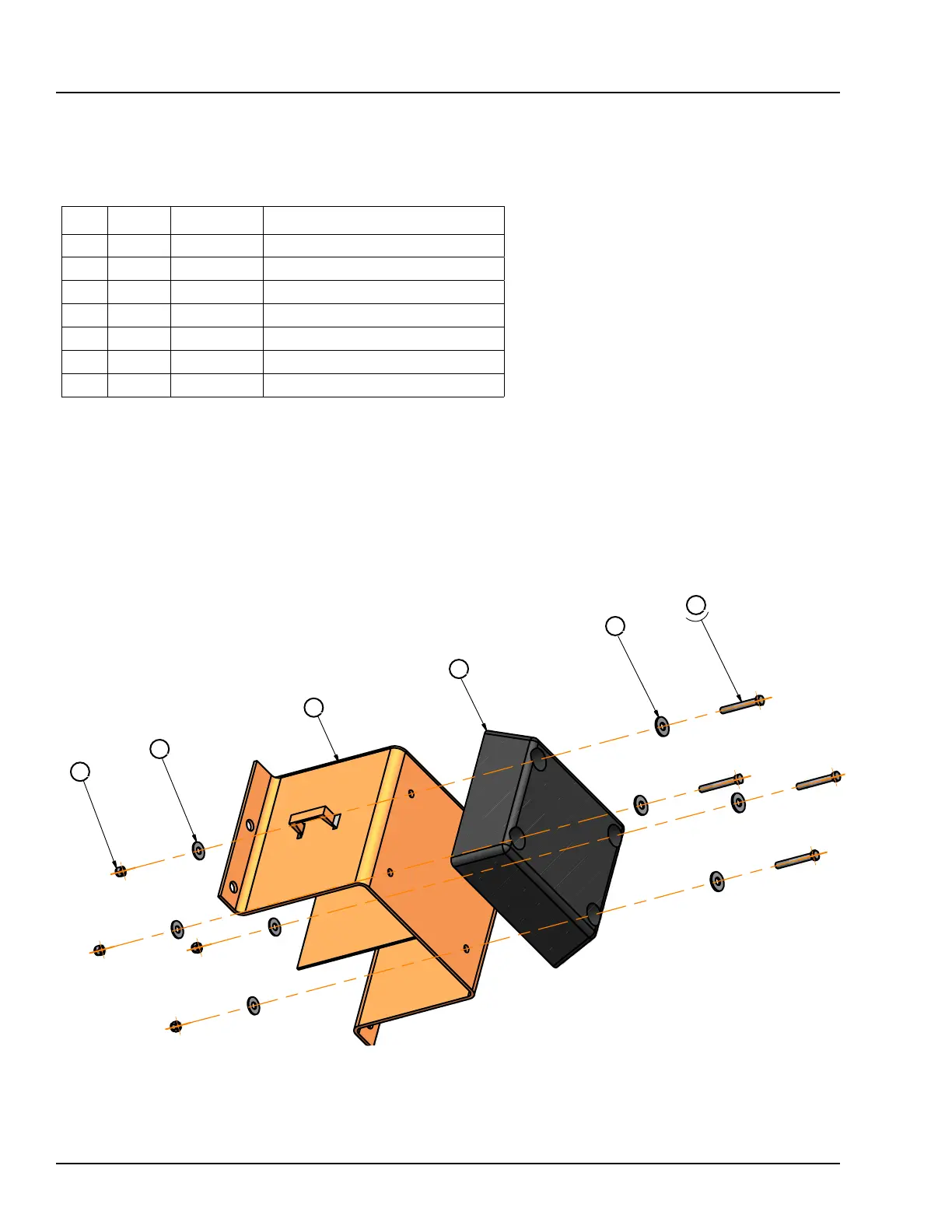

12" BB ASSY COMPLETE (EXPLODED VIEW)
P O W E R A M P
D L M
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
BILL OF MATERIAL
SIZEDESCRIPTIONPART NO.QTY
ITEM
12" BB WELDMENT
DOTH-3537
11
4 X 12 X 13RUBBER - TUF-CORDDOTH-350512
7/16-14 UNC X 3-1/4HEX HEAD CAP SCREWDOTH-205643
1/2" DIAWASHER - FLAT - ZINC PLATEDDOTH-2210
44
1/2" DIAWASHER - FLATDOTH-2208
45
7/16-14 UNCNYLON LOCK NUTDOTH-2129
46
6
5
2
4
3
1
4
5
3
2
1
6
