DLM DL Series - Sliding Bumper Components

39
Manual No. 4111-0025
March 2011
May 2012
PARTS
DBBS-3512 Complete 15” Projection Sliding Bumper Assembly
Item Quantity Part Number Description
1 1 DOTH-3537 12” BB Weldment
2 2 DOTH-3514 Angle - 12” BB Slide
3 2 DOTH-3515 Bar - BB Sliding Stop
4 1 DOTH-3517 12” Sliding BB Plate w/Rubber
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL:
`
1/32"
DECIMAL:
.00 =
`
.01"
.000 =
`
.005"
ANGULAR:
`
1
~
DRAWN BY
CHECKED BY
DRAWING NO.
DATE
SR
2/11/2005

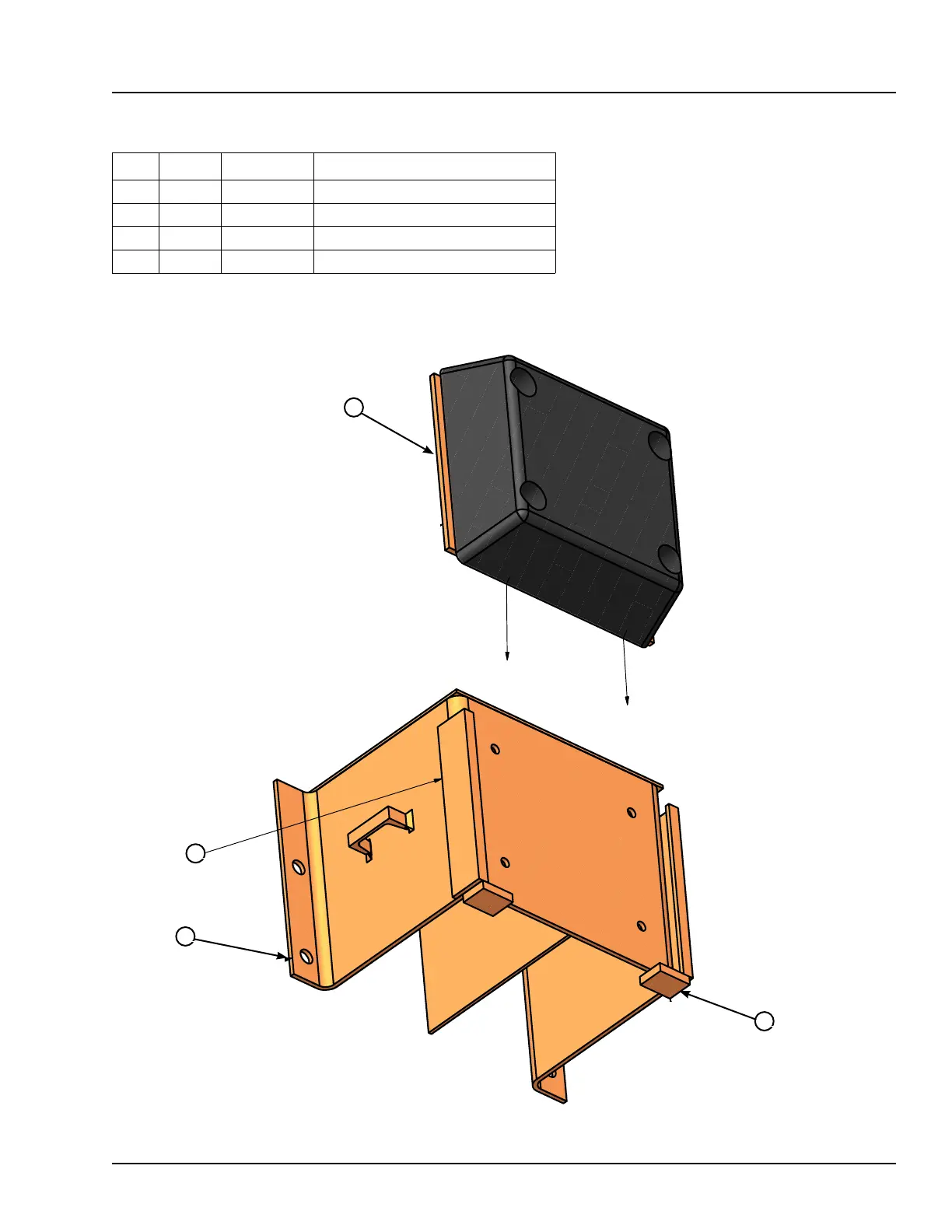

DBBS-3512-EXPLOD
E
12" BB ASSY COMPLETE (EXPLODED VIEW)
P O W E R A M P
D L M
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
BILL OF MATERIAL
SIZEDESCRIPTIONPART NO.QTY
ITEM
12" BB WELDMENT
DOTH-3537
11
ANGLE - 12" BB SLIDEDOTH-351422
BAR - BB SLIDING STOPDOTH-351523
12" SLIDING BB PLATE W/RUBBERDOTH-3517
14
1
2
4
3
2
1
3
4
