DLS Flatbox - Page 3

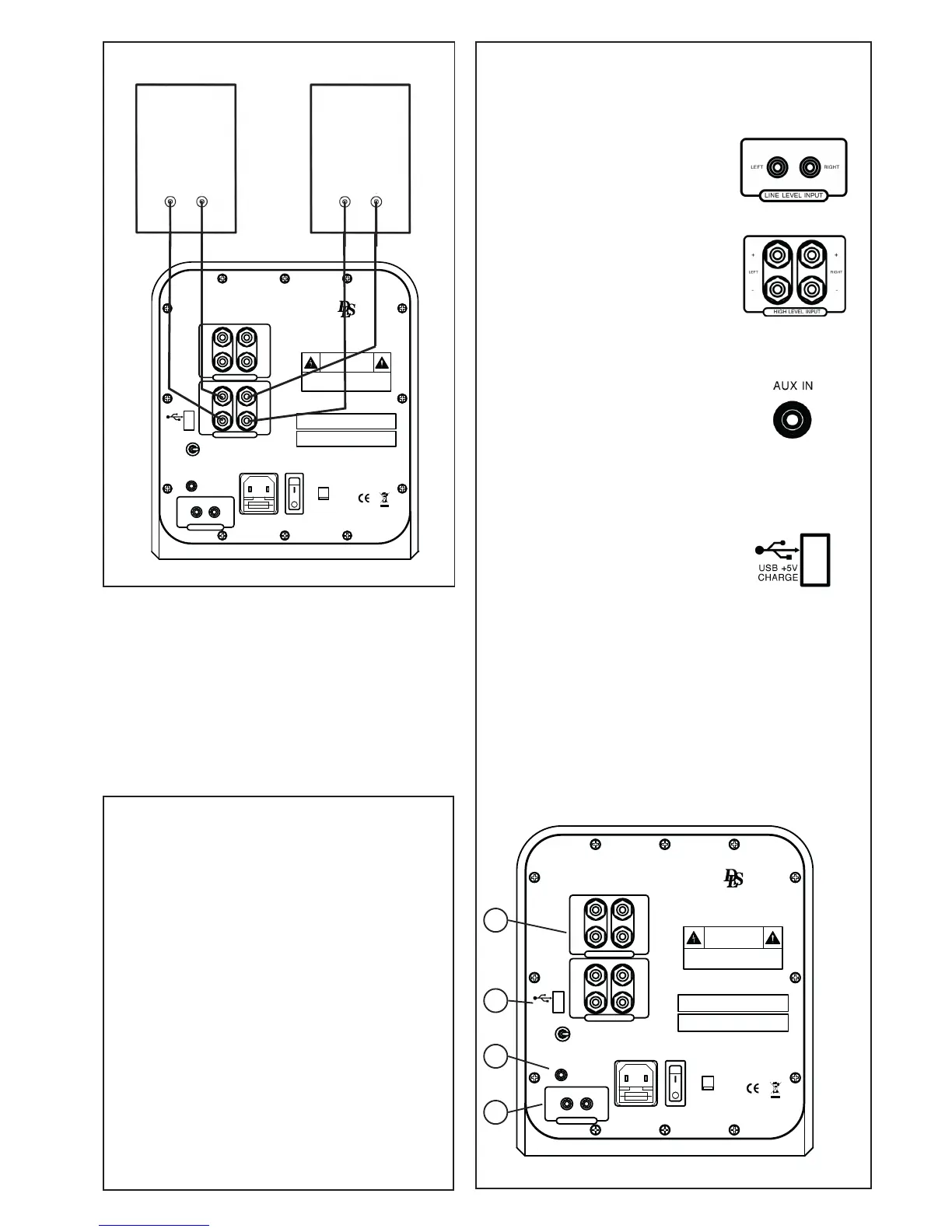

INPUT SIGNAL, CONNECTION ALTERNATIVES:
2-CHANNEL STEREO CONNECTIONS
fig 3
Output power subwoofer amplifier : 80 Watts class D
Woofer unit : 7" + passive radiator 7"
Low frequency performance : 32 Hz @ -6dB
Crossover subwoofer amplifier: : 50 - 250 Hz low pass
BASS EQ switch : +5 dB @ 35 Hz
Output power satellite amplifier : 2 x 35 W class D
Crossover Satellite amplifier :12 dB high pass @80 Hz
Technical data for amplifier module AF-5025
Flatbox
Speaker
Flatbox
Speaker
+
+
- L CH + + R CH -
RightLeft
Title
Part Number
CAD File Name
Drawn By Date
1
1
2
2
3
3
A A
B
B
Date Description ApprovalsIssue #
0
0
0
Item #
Description
Qty
230V
CAUTION
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE FUSE AND RATING
ATTENTION
UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE ET CALIBRE
2.1 Channel AmpliÞer
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:SHOCK HAZARD DO NOT OPEN
AVIS:RISQUE DE CHOC ELECTRIQUE-NE
PAS OUVRIR
AF 5025
LEFT RIGHT
-
+
-
+
LEFT RIGHT
-
+
-
+
HIGH LEVEL INPUT
SATELLITE OUT
USB +5V
CHARGE
AUTO ON / ON
AUX IN
LEFT RIGHT
LINE LEVEL INPUT
~115V/60Hz T2,0A/250V
~230V/50Hz T1,0A/250V
POWER
ON
OFF
MA 130220
CONNECTION OF STEREO SPEAKERS:
SOUND ADJUSTMENTS
SATELLITES VOLUME control
This control is used to adjust the volume for Flatbox speakers
connected to the SATELLITE OUT terminals. Trust your ears and
your personal taste to find the correct setting.
SUBWOOFER VOLUME control
This control is used to adjust the balance between the subwoofer
and front or satellite / Flatbox speakers. Trust your ears and your
personal taste to find the correct setting.
SUB FREQUENCY control.
The crossover can be continuously adjusted from 50 to 250 Hz. This
frequency is the split frequency between the subwoofer and the
satellite / Flatbox speakers. Trust your ears and your personal taste
to find the correct setting.
BASS EQ switch
This control is used for increasing the BASS level at 35 Hz
centre frequency with + 5dB in ON position. Trust your ears and
your personal taste to find the correct setting.
Title
Part Number
CAD File Name
Drawn By Date
1
1
2
2
3
3
A A
B B
Date Description ApprovalsIssue #
0
0
0
Item #
Description
Qty
230V
CAUTION
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE FUSE AND RATING
ATTENTION
UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE ET CALIBRE
2.1 Channel AmpliÞer
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING:SHOCK HAZARD DO NOT OPEN
AVIS:RISQUE DE CHOC ELECTRIQUE-NE
PA S OUVRIR
AF 5025
LEFT RIGHT
-
+
-
+
LEFT RIGHT
-
+
-
+
HIGH LEVEL INPUT
SATELLITE OUT
USB +5V
CHARGE
AUTO ON / ON
AUX IN
LEFT RIGHT
LINE LEVEL INPUT
~115V/60Hz T2,0A/250V
~230V/50Hz T1,0A/250V
POWER
ON
OFF
MA 130220
1. LINE LEVEL INPUT
If your amplifier have separate pre-amplifier
outputs, connect those to LINE LEVEL INPUT,
left (L) and right (R).
2. SPEAKER LEVEL INPUT
Connect the speaker outputs from the stereo
power amplifier to ”left (L) & right (R) "HIGH
LEVEL INPUT".
This alternative is normally used if you have a
signal source without low level signal outputs.
3. AUX INPUT
The AUX IN is a 3,5 mm stereo socket used for
connecting various sources.
You can connect signal from:
- A stereo receiver
- A computer or laptop
- Your TV
- Your mobile phone or tablet
- Any other unit with an Audio output
4. USB POWER
If you want to use a Bluetooth device or similar,
use this USB socket for powering the device.
For powering a Bluetooth device or any other
kind of receiver, the AUTO ON / ON switch (5)
must be in position ON all the time.
4
2
3
1
