DLS ULTIMATE A1 User Manual

24

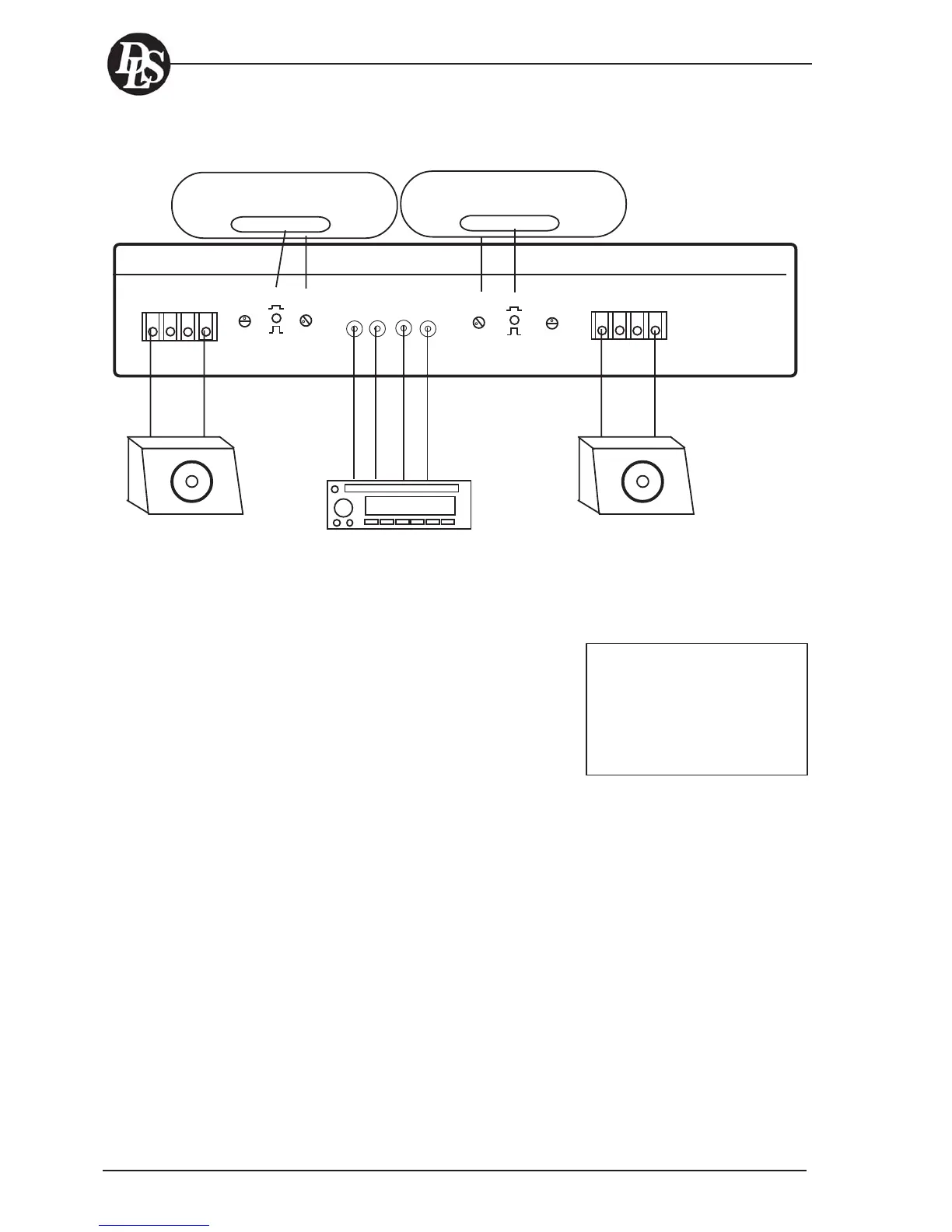

Example 2: Speaker wiring with subwoofers in bridge mode to both front
and rear channels
ULTIMATE A8
Button in
Filter settings:
Front: HP-filter OFF
LP-filter IN
Setting 70-80 Hz
Rear: HP-filter OFF
LP-filter IN
Setting 70-80 Hz
FM1 107,3
Pre out
front
Pre out
rear
REAR SPEAKERS
+LEFT- +RIGHT-
FRONT INPUTS REAR
LEFT RIGHT LEFT RIGHT
HP-filter change
by bottom switch
FRONT SPEAKERS
+LEFT- +RIGHT-
5V 0,5V
LEVEL
LP-filter
OUT
IN
50 125
Hz
50 125
Hz
HP-filter change
by bottom switch
OUT
IN
5V 0,5V
LEVEL
LP-filter
Subwoofer
2 - 4 ohm
Subwoofer
2 - 4 ohm
Button in
LP-filter setting:
70 - 80 Hz.
LP-filter setting:
70 - 80 Hz.
Use one RCA cable with Y-split, or two
separate RCA-cables for signal from head
unit to amplifier.
WIRING EXAMPLES A8
