Reduced Head and/or Reduced PIT Installation
Sufficient Head and Pit clearance
according EN81-20 §5.2.5.7 / § 5.2.5.8

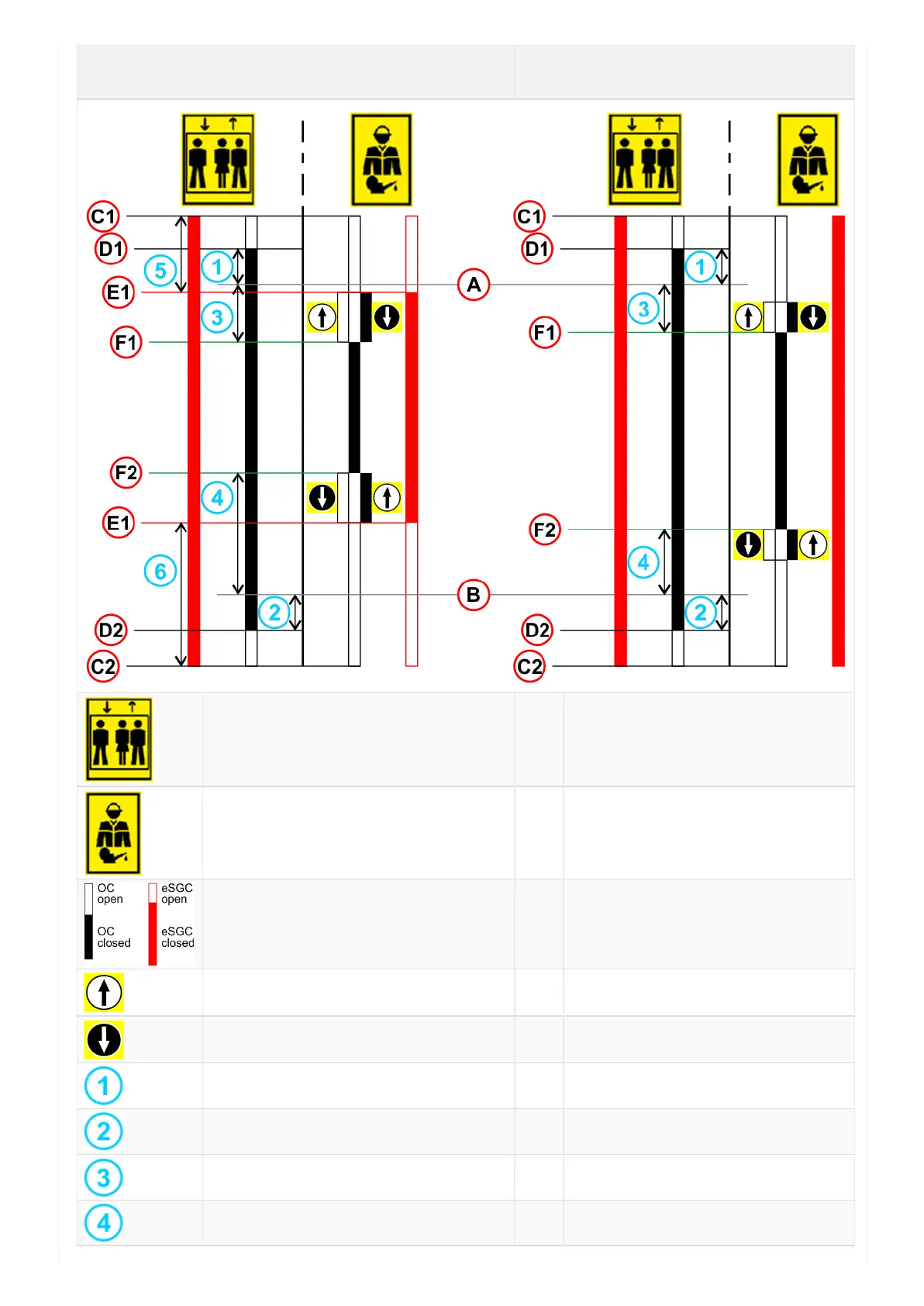

Normal Mode A) - TOP floor
Inspection Mode B) - BOTTOM floor
Safety contacts status C1) - Upper reference position
Inspection UP button C2) - Lower reference position
Inspection DOWN button D1) - Upper final limit switch
Final limit switches Offset Up D2) - Lower final limit switch
Final limit switches Offset Down E1) - Upper pre-triggered stopping system limit
Inspection limit switches Offset Up E2) - Lower pre-triggered stopping system limit
Inspection limit switches Offset Down F1) - Upper inspection limit switch
