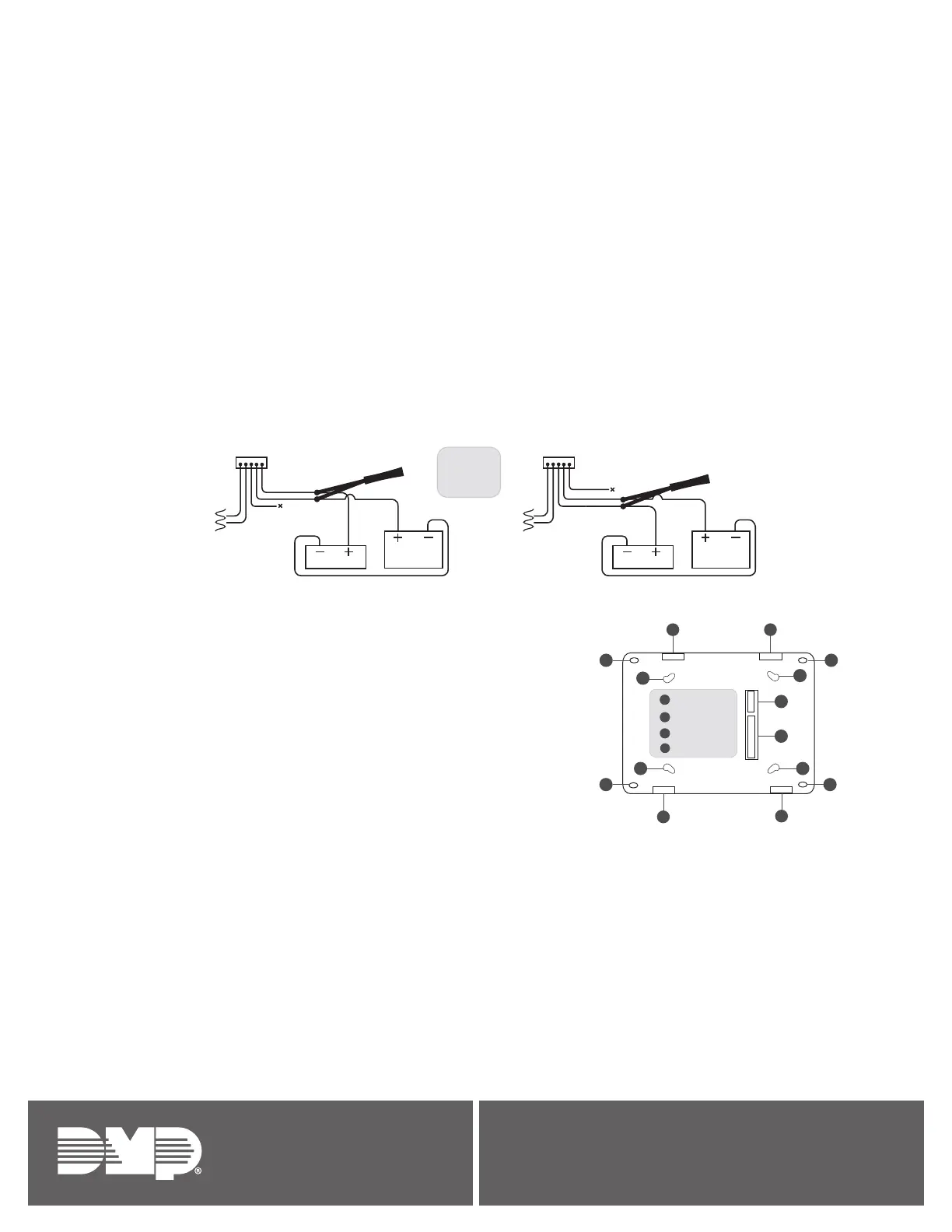

Step 3: Wire for Access Control (Optional)
For all wiring instructions, scan the QR code at the beginning of the document.
Step 4: Wire the Electronic Lock
The Form C relay on 7073/A and 7173 keypads draws up to 15 mA of current and the contacts are rated for 1 Amp at
30 VDC maximum, resistive. The wires marked NO C NC allow you to connect the device wiring to the relay for module
control. Use an additional power supply to power magnetic locks and door strikes.
Green/White – D0
White – D1
Orange – N/O
Gray – C
Violet – N/C
NC
C
NO
WHT
GRN
None
To Keypad
Magnetic Door Lock
Normally Closed
Normally Closed Normally Open
Common
Power Supply
Model 333
Supressor
NC
C
NO
WHT
GRN
None
To Keypad
Door Strike Relay
Normally Opem
Common
Power Supply
Model 333
Supressor
Step 5: Wire the 333 Suppressor
Use the included 333 suppressor with the keypad to suppress any surges caused by energizing a magnetic lock or door
strike. Install the 333 across the keypad C (common) and NO (normally open) or NC (normally closed).
If the device is being controlled by the relay is connected to the NO and C wires, install the suppressor on the NO and C
wires. Conversely, if the device is connected to the NC and C wires, install the 333 Suppressor on NC and C wires.
Step 7: Program the Panel and Keypad
For all programming instructions, scan the QR code at the beginning of the document.
Step 8: Test the Keypad
For all testing instructions, scan the QR code at the beginning of the document.
Step 6: Mounting the Keypad
All DMP keypad housings are designed to install on any 4” square box,
3-gang switch box, compatible backboxes, or directly on a flat surface.
1. Ensure all cables are routed through the keypad base cut outs
before fully mounting the base to the wall.
2. Use #6 screws to secure the keypad base to the surface.
3. Place the keypad cover back onto the base and snap into place.
A
A
A
A
B
B
D
B
B
C
C
DD
D
A
B
Backbox
mounting holes
Switchbox
mounting holes
C
Wiring cutouts
D
Cover latches
