54 XR500/XR100 User’s Guide Appendix B
Appendix B

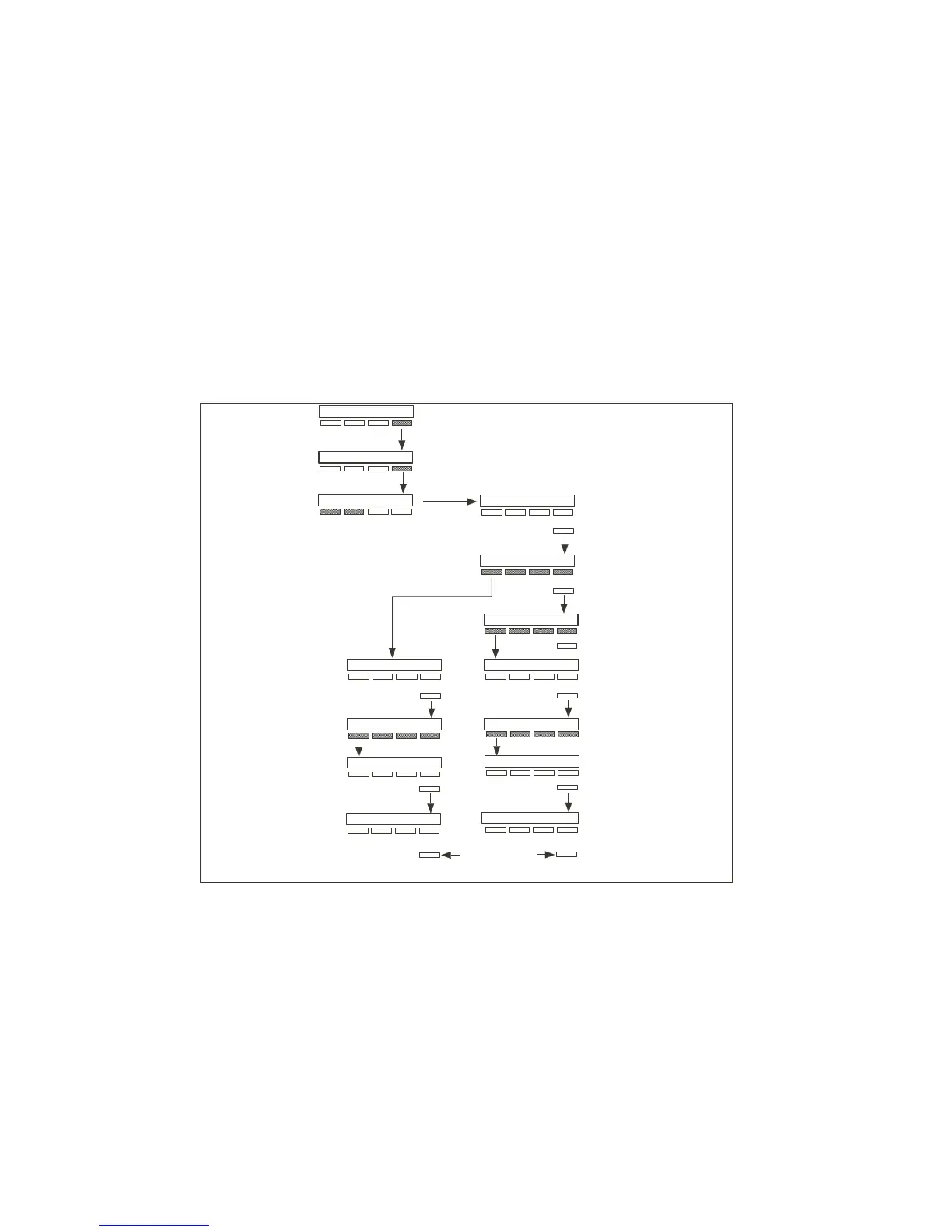

Zone Status Browser
ZONE STATUS?
ARM BYPS ALR NBR
ZONE NO: -
SELECT ZONE . . .
Access the User Menu.
Press COMMAND until
ZONE STATUS appears.
Press any SELECT
key/area then SELECT
NBR.
SELECT AREA . . .
FRONT OFFICE
24 HOUR ZONES
Press one of the left two
SELECT keys/areas to
browse through the
programmed zone names.
When the area where the zone is
located displays, press any
SELECT key/area.
This prompt allows you to search
for a zone by area. Press the
COMMAND key to scroll through
the list of areas.
After all the areas display, the
system allows you to search
through the 24 hour zones
(Fire, Panic, Supervisory, etc.)
Press the COMMAND key to scroll
through the zone names list.
EAST DOOR
When the correct zone name
displays, press any SELECT
key/area.
ZONE NO : 0 1 2
Verify the zone number matches
the previously shown name.
CMD
EAST DOOR -OKAY
The system displays one of these
zone status messages
:
-OKAY = the zone is normal
-BYPAS = the zone is bypassed
-BAD O = the zone is open
-BAD S = the zone is shorted
Press COMMAND.
SELECT ZONE . . .
HALL SMOKE
ZONE NO : 0 3 4
HALL SMOKE -OKAY
Press COMMAND.
When the correct zone name
displays, press any SELECT
key/area.
Verify the zone number matches
the previously shown name.
Press COMMAND
to enter another
zone number.
The system displays one of these
zone status messages:
-OKAY
= the zone is normal
-BYPAS = the zone is bypassed
-BAD O = the zone is open
-BAD S = the zone is shorte
d
CMD
CMD
CMD
CMD
CMD
CMD
CMD
CMD
