Calibration Verification
4-28 72A-1230 Rev. F
July 22, 2005

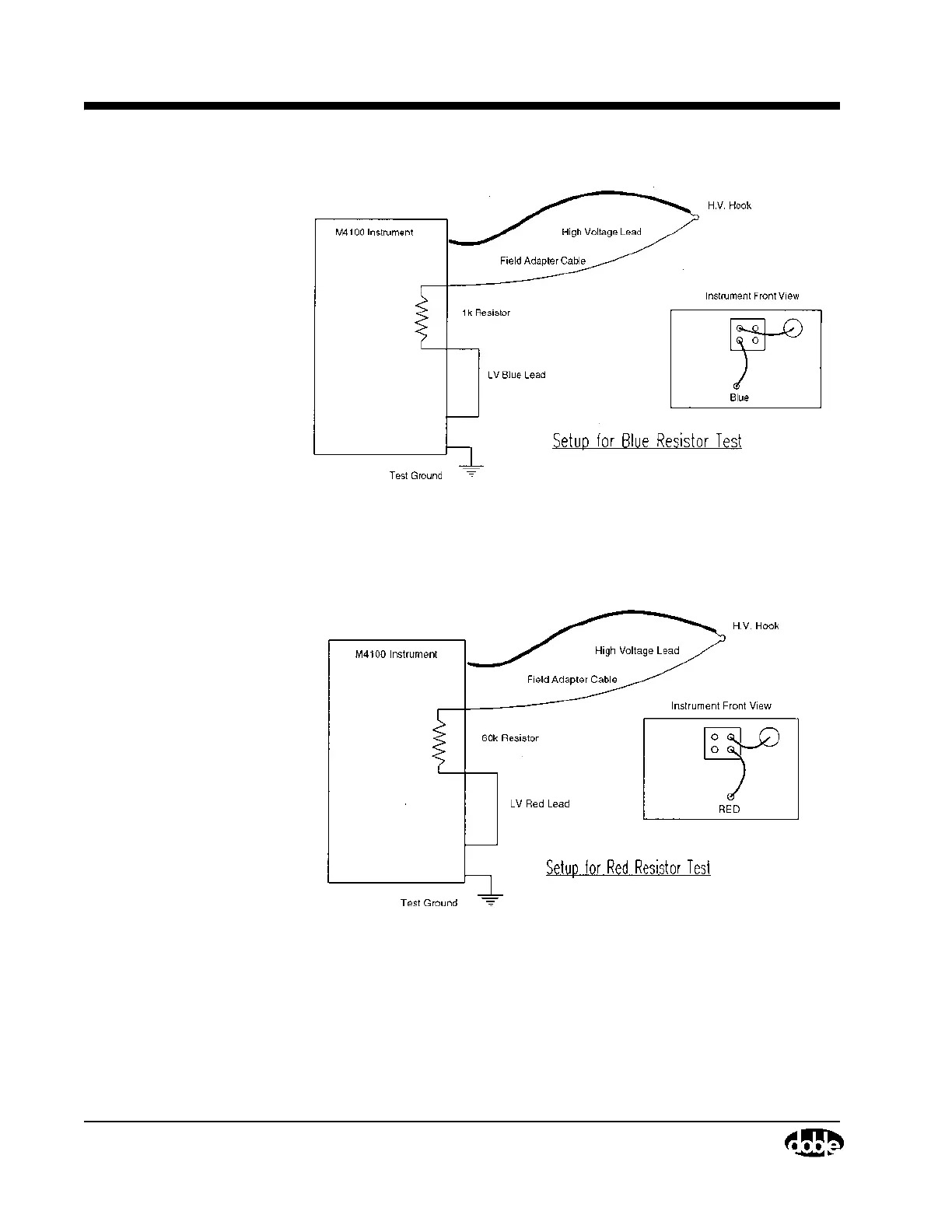

Figure 4.6 Setup for Blue Resistor Test
Figure 4.7 Setup for Red Resistor Test
There is a test abort criterion described in the first test of each setup. The
test abort allows the operator to correct a setup error and then restart from
the point where the error was first detected, without losing successfully
completed test information.
