SR606

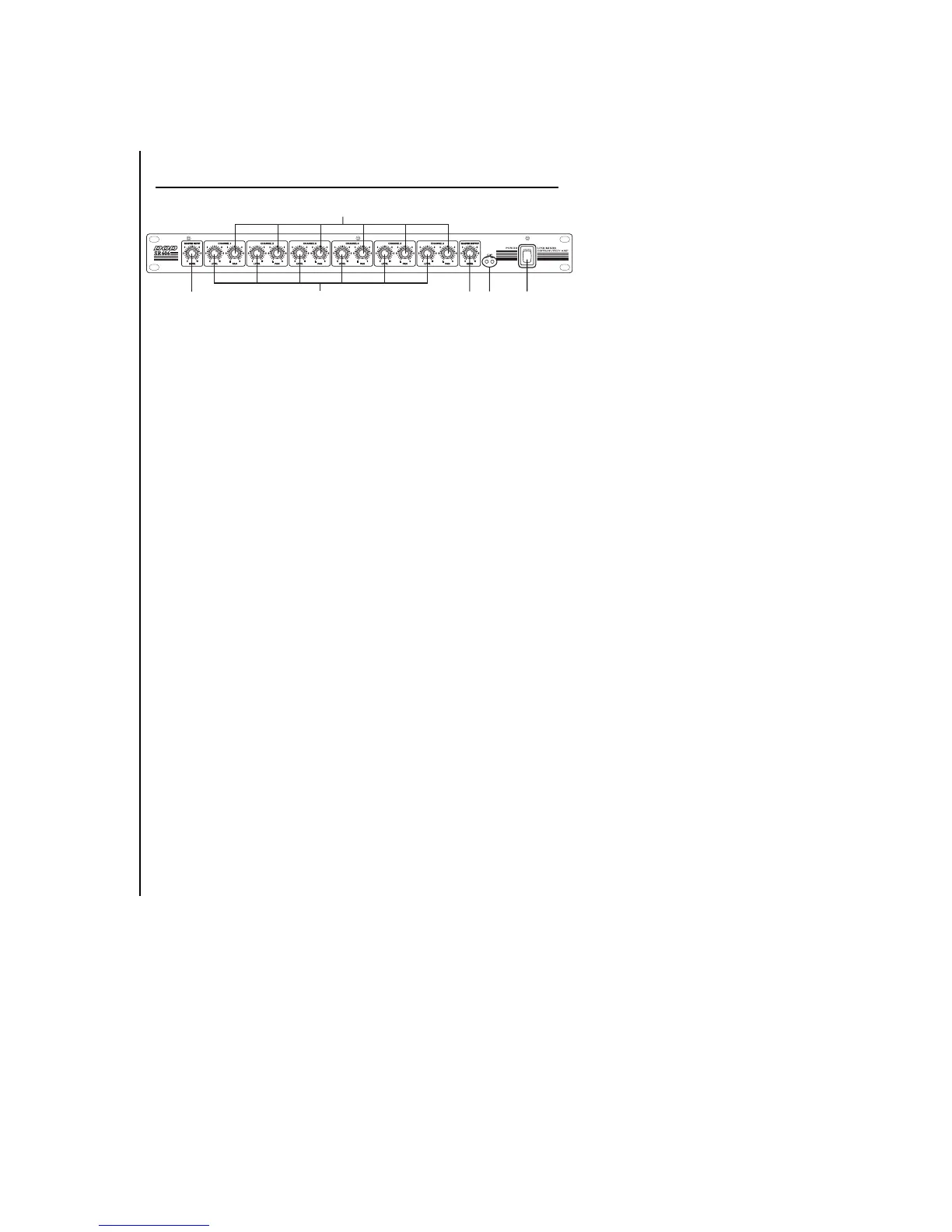

FRONT PANEL
1. Master Input Level - Controls the signal strength entering the Left and
Right Inputs.
2. Channel 1-6 Level - Controls the signal strength entering the 1-6 inputs,
being delivered to the 1- 6 Outputs, or being delivered to the Left and Right
Outputs, depending on your application.
3. Channel 1-6 Pan - Controls the Left/Right position being delivered from
Channels 1-6 to the Stereo Outputs, or Selects which Stereo Input Channel 1-6
is receiving its signal from.
4. Master Output Level - Controls the signal strength being delivered to the
Left and Right Outputs.
5. Clip LEDs -These LEDs light 3 dB before clipping occurs at the Left or Right
Outputs only.
NOTE: The clip indicators will only register clipping at the outputs.They will
not register a clip at any other point in the unit.
6. Power Switch - Used to engage or disengage the power to the SR606.
