FUSES
Integrated Power Module

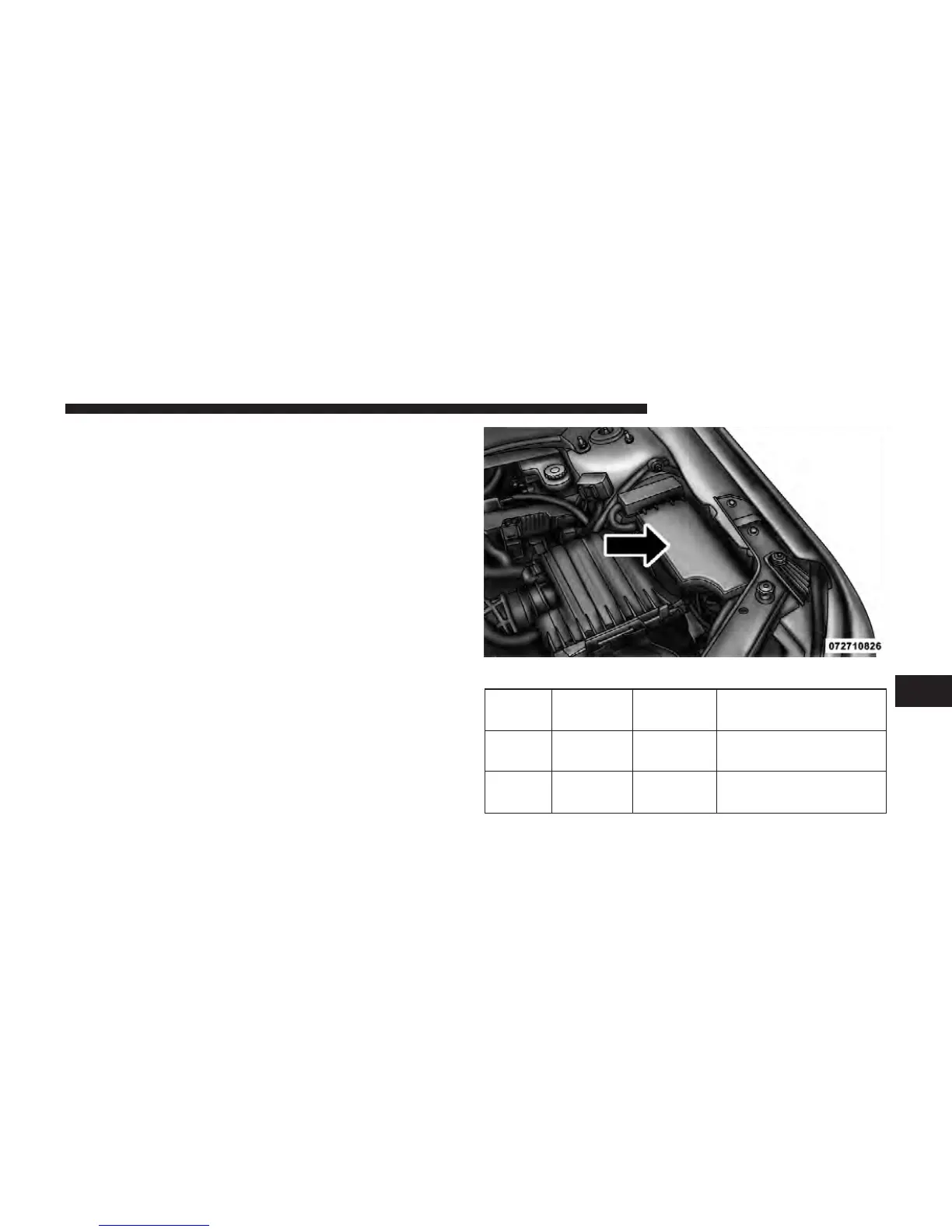

The Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini fuses. A label that
identifies each component may be printed on the inside
of the cover. Refer to the graphic below for FUSES/TIPM
location.
Cavity
Cartridge
Fuse
Mini
Fuse
Description
1
40 Amp
Green
—
Power Top Module –
If Equipped
2—
20 Amp
Yellow
AWD Module
Integrated Power Module
7
MAINTAINING YOUR VEHICLE 445
