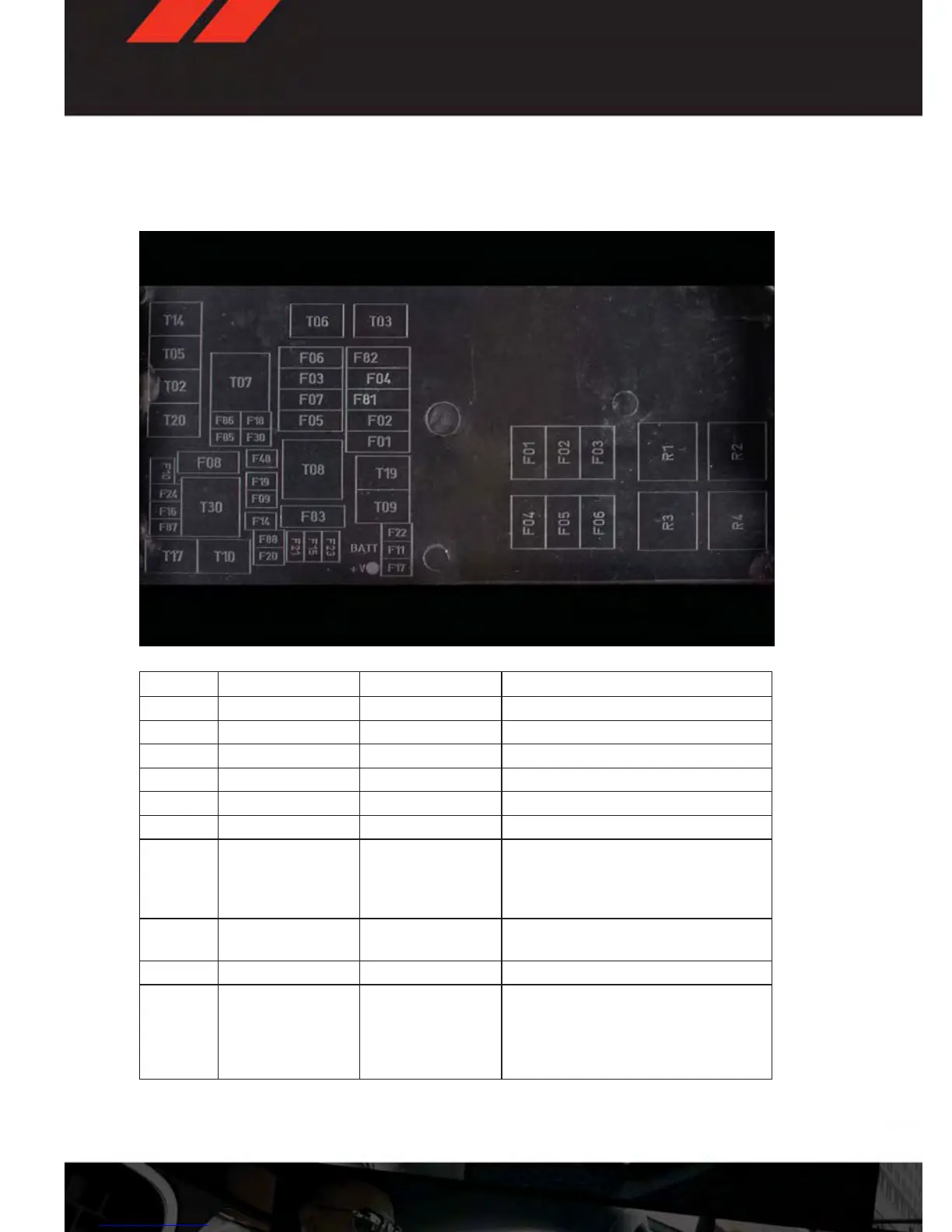

Underhood Fuses
• The Power Distribution Center is located on the right side of the engine compartment,
behind the battery.
Cavity Maxi Fuse Mini Fuse Description
F01 70 Amp Tan — Direct Battery Feed #1 To BCM
F02 60 Amp Blue — Direct Battery Feed #2 To BCM
F03 30 Amp Green — Output For Starter Relay #1
F04 40 Amp Orange — ESP Pump Motor
F05 40 Amp Orange — DDCT Feed #1 (SDU)
F06 30 Amp Green — Direct Battery Feed #3 To BCM
F07 40 Amp Orange — Run RLY Output (For EBL RLY Coil),
Run RLY Output (For ORC), Run RLY
Output (For Blower Motor RLY Coil),
Run RLY Output (For iPDC)
F09 — 5 Amp Tan Radiator Fan Enable RLY Output,
Radiator Fan Enable RLY Coil Output
F10 — 10 Amp Red ORC
F11 — 20 Amp Yellow ECM, EPS, Backup Lamp Switch,
Run/Start RLY Output (For A/C Clutch
RLY Coil, Fuel Pump RLY Coil,
Starter RLY #1)
MAINTAINING YOUR VEHICLE
112
