78 IN CASE OF EMERGENCY
REMOVAL OF JACK AND TOOLS
To access the jack and tools, you must remove
the plastic access cover located on the side of
the front passenger’s seat. To remove the
cover, pull the front part of the cover (closest to
the front of the seat) toward you to release a
locking tab. Once the front of the cover is loose,
slide the cover toward the front of the seat until
it is free from the seat frame.

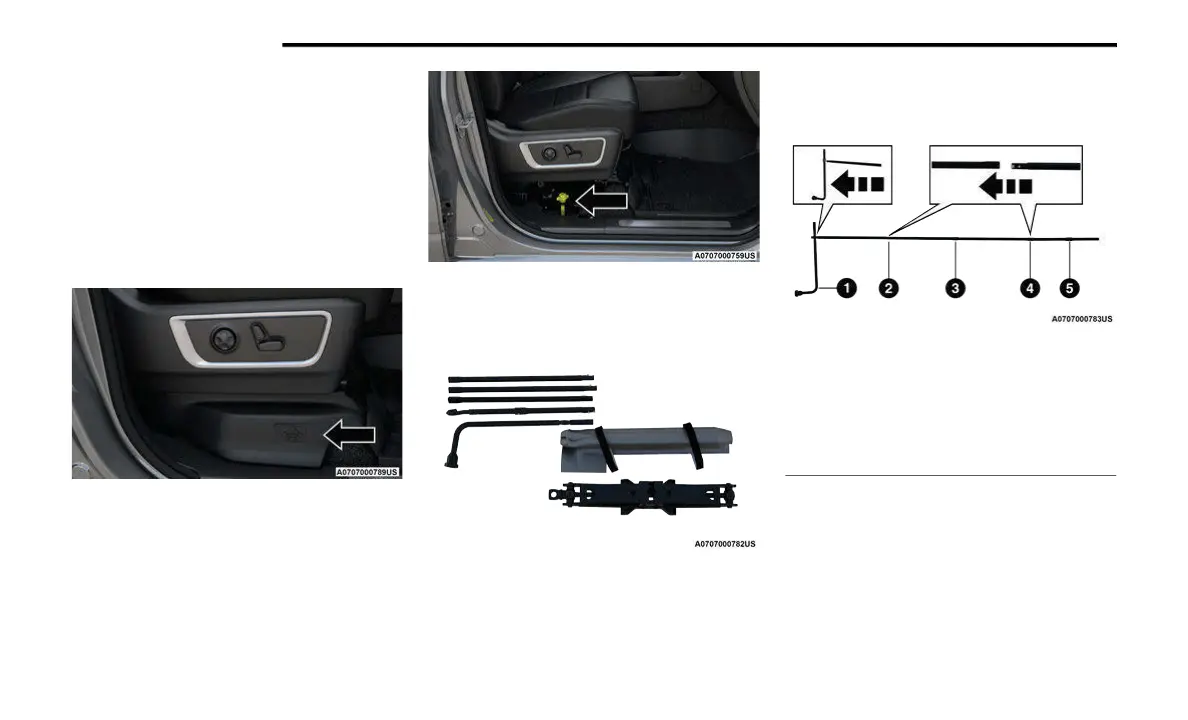

Pull Jack Access Cover From Front
Remove the jack and tools by turning the wing
bolt counterclockwise, remove the wing bolt
and then slide the assembly out from under the
seat.
Jack And Tools
Release the tool bag straps from the jack and
remove tools from bag.
Jack And Tool Bag
There are two ways to assemble the tools:
Assembled For Spare Tire Lowering/Raising
Assembled For Spare Tire Lowering/Raising
1 — Lug Wrench
2 — Long Extension Without Spring Clip 2
3 — Long Extension With Spring Clip 3
4 — Long Extension With Spring Clip 4
5 — Short Extension 5
