84 IN CASE OF EMERGENCY

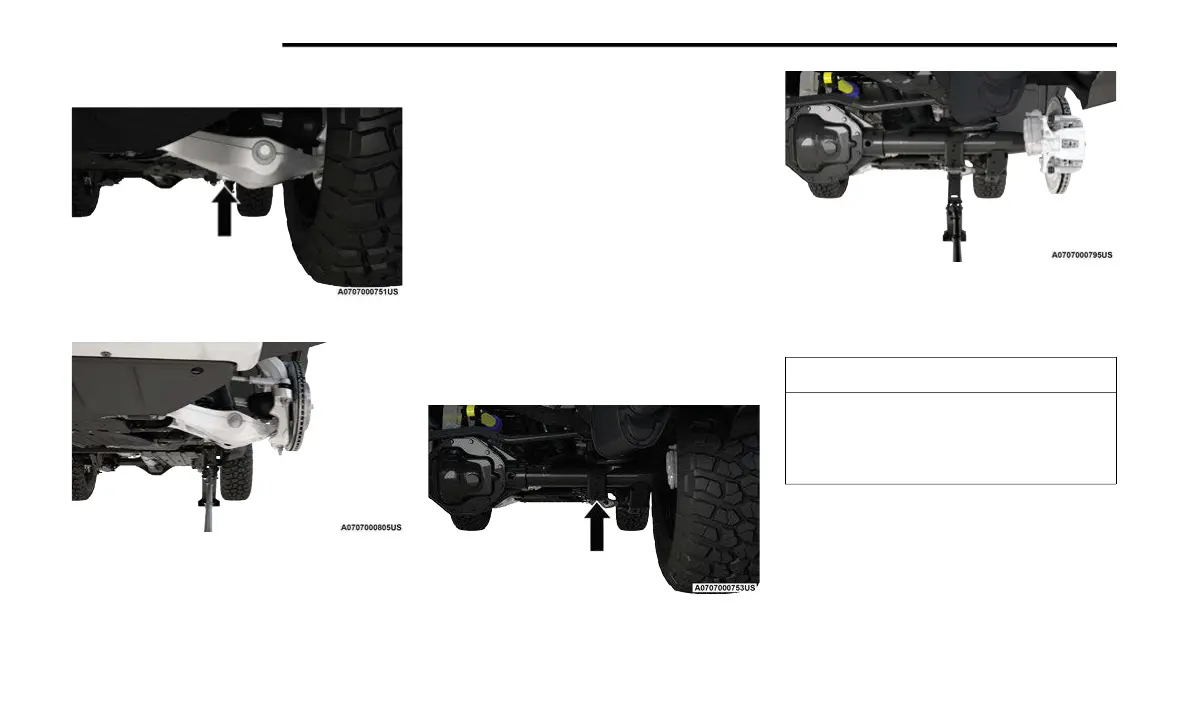

Front Jacking Location
Front Lifting Point
Front Jacking Location
Rear Jacking Location
Operate the jack using the extension with
jack hook and the lug wrench. The exten-
sion tubes may be used but is not required.
When changing a rear wheel, assemble the
extension with jack hook to the jack and
connect the extension tubes. Access the
rear jacking location from behind the rear
tire. Place the jack under the Jack Lifting
Point located on the rear axle lower control
arm bracket. Then locate the slot in the jack
lift plate onto the rear axle Jack Lifting Point.
Attach the extension with jack hook extend-
ing to the rear of the vehicle.
Rear Lifting Point
Rear Jacking Location
Connect the long extensions to the lug
wrench.
CAUTION!
Before raising the wheel off the ground, make
sure that the jack will not damage
surrounding truck parts and adjust the jack
position as required.
