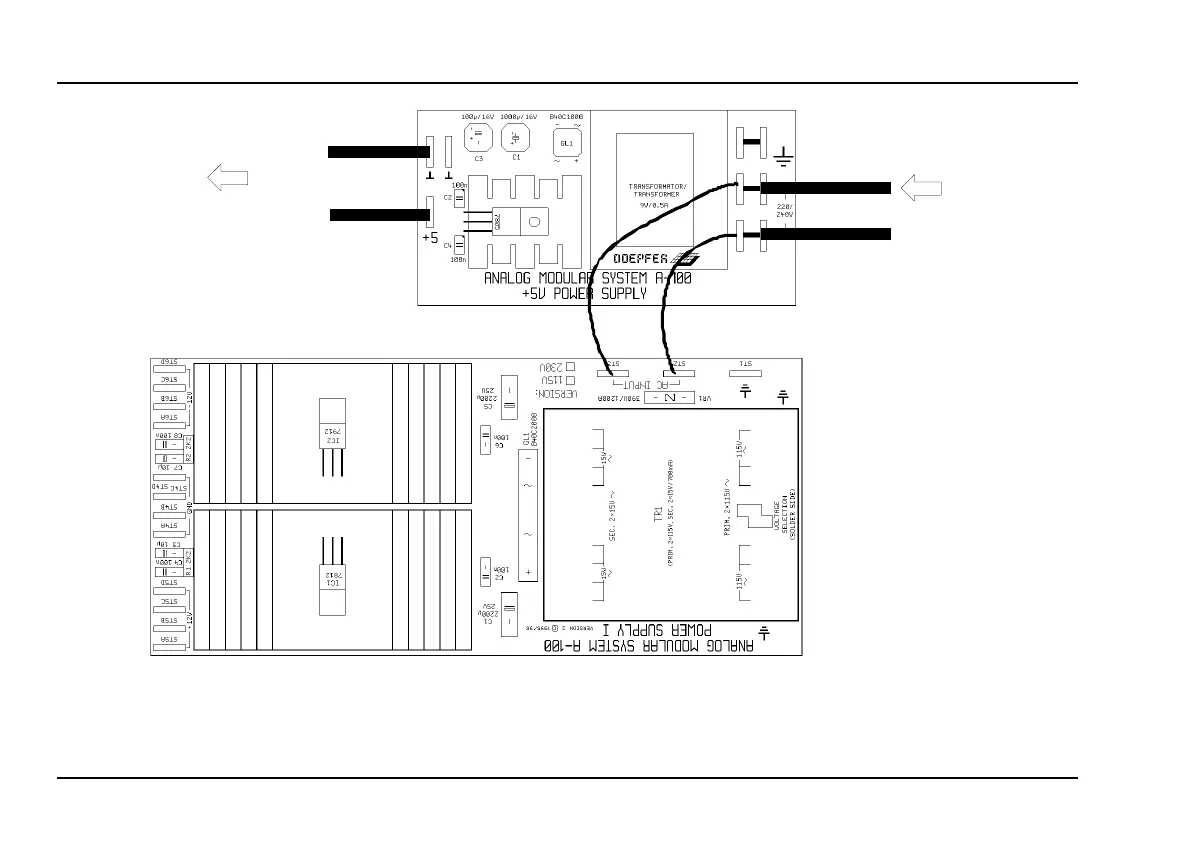

Fig. 10: NT5 power supply connections
GND
(black)
+5 V
(red)
to the
connectors of
the bus board
from mains
inlet
blue
black
blue
black
blue
black or brown
black or brown
blue
