System A - 100 9. Appendix
31
A
The yellow/green wire is the safety (earth)
connection, and must be never replaced by
a different colour.
If you’ve been using the AD5 low-cost 5V adaptor, but
are now installing an NT5, you must remove the AD5
before commissioning the NT5!
9.2 Installing the AD5 low-cost 5V adaptor
The AD5 can be used for the 5V power supply, as long
as the following applies:
• The current for the modules that require a 5V
supply doesn’t exceed 100 mA (e.g. only one A-190
or A-191)
• There is enough current handling still available on
the +12V supply to cope with the current require-
ments of the 5V modules.
The AD5 adaptor can be connected to any available
16-way socket on the system bus board (see Fig. 11).
This will feed +5V to modules on that bus, as long as
their current requirements don’t exceed 100mA.

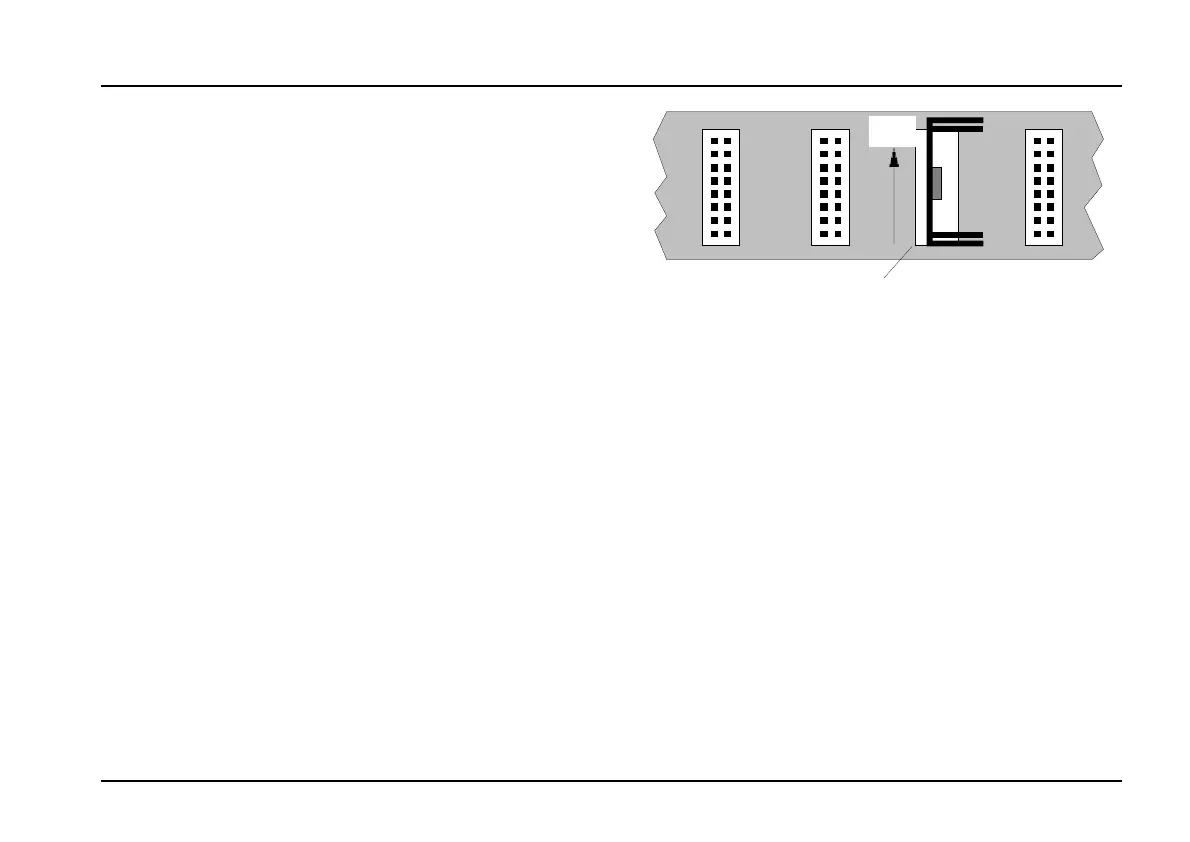

Fig. 11: Connecting the 5V low-cost adaptor
(
1
: system bus board,
2
: AD5,
3
: heat sink)
To install the AD5, do the following:
Isolate the A-100 rack from the mains power sup-
ply by removing the main plug.
D
Carefully insert the AD5 into a free socket on the
bus board.
A
Make sure that the AD5 is the right way up,
and aligned correctly with the bus socket.
The correct position is shown on a sticker
(with the arrow pointing upwards, and the
red mark at the bottom - see Fig. 11).
rote Markierung
oben
➀
➁
➂
red mark
up
