Doit Security+ 4620DI User Manual

Lock Nut
1/4"-20 (12)
Wing Nut
1/4"-20 (2)
Carriage Bolt
1/4"-20x1/2" (2)
1/4" - 20 x 5/8"
Hex Bolt (4)
Sprocket Coupling Sleeve
Bolt
1/4-20x1-3/4" (8)
NOTICE
Handle
Nut 5/16"-18 (4)
Ring
Fastener (3)
Clevis Pin
5/16"x2-3/4" (1)
Insulated
Staples (30)
Dry Wall Anchors (2)
Clevis Pin
5/16"x1" (1)
Rope
Lock Washer 5/16" (4)
Lag Screw
5/16"-9x1-5/8" (2)
Hex Bolt
5/16"-18x7/8" (4)
Clevis Pin
5/16"x1-1/4" (1)
Lag Screw
5/16"-18x1-7/8" (2)
Screw
6ABx1-1/4" (2)
Screw 6-32x1" (2)
Self-Threading Screw
1/4"-14x5/8" (2)
Hardware
5

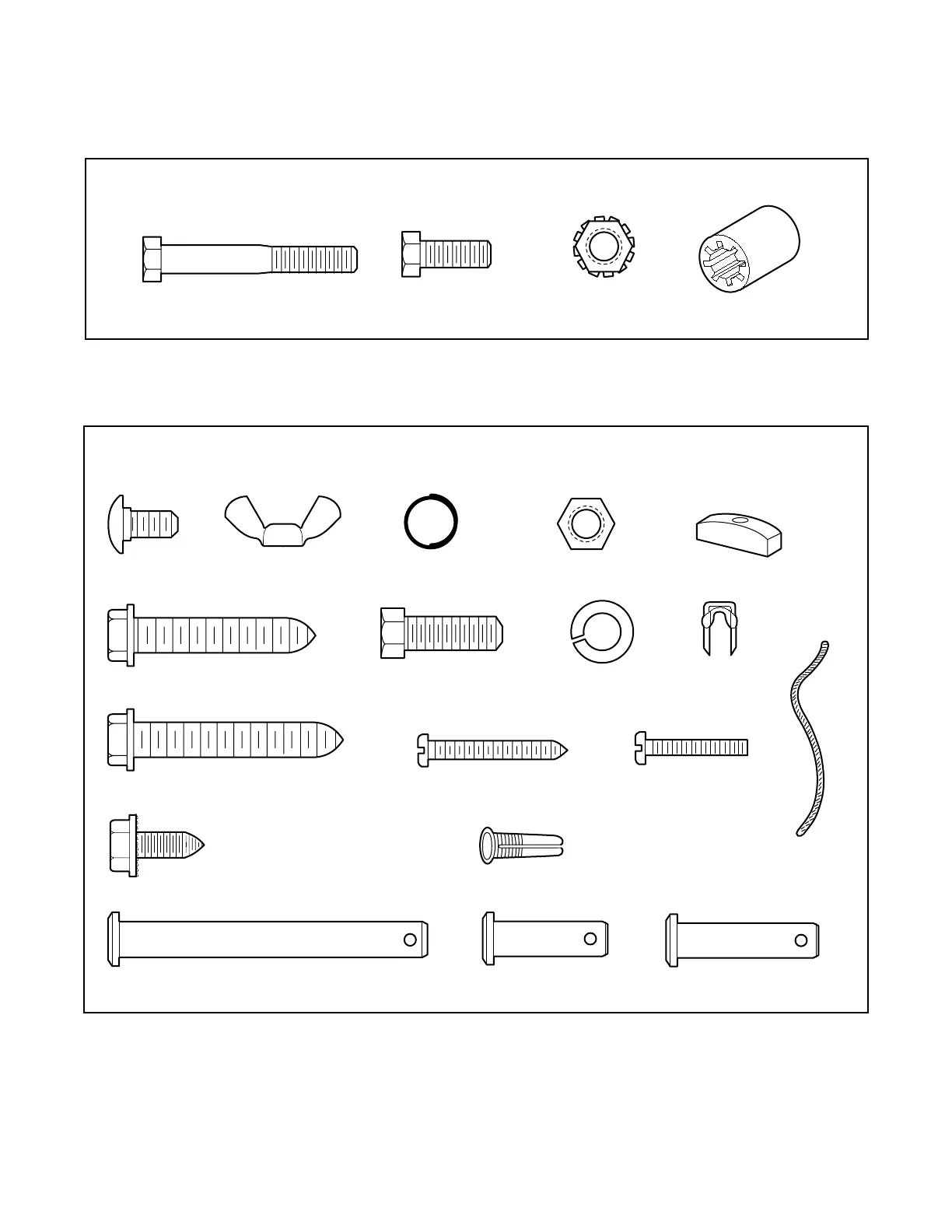

Separate all hardware from the packages in the rail carton and the opener carton and group as shown below, for
the assembly and installation procedures.
Assembly Hardware
Installation Hardware
