CHUTE ASSEMBLY PARTS

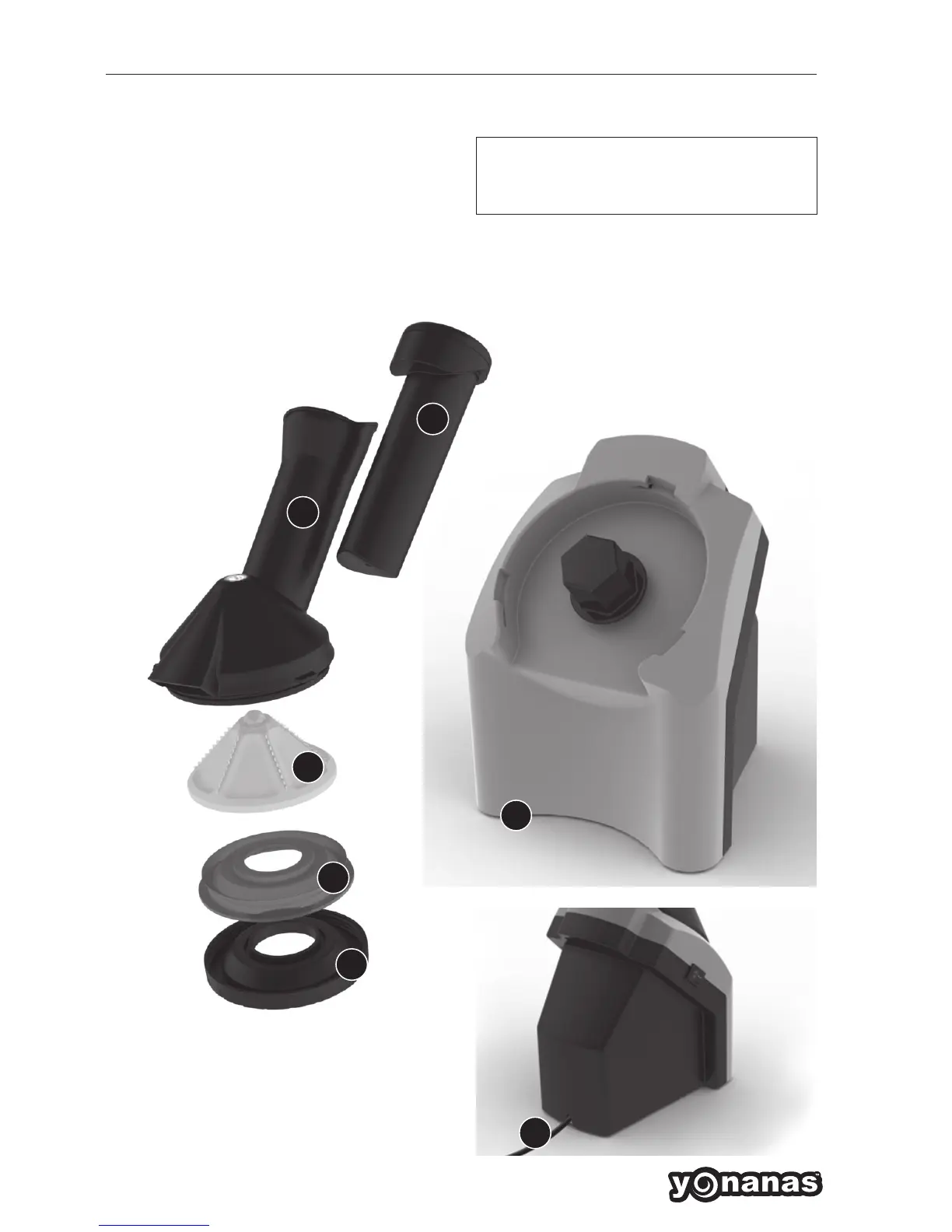

PARTS
5. Bottom Cap — Screws onto the chute and
blade cover and holds all parts of the
chute assembly in place.
7
1. Plunger — Presses food through the chute
into the blade cone.
2. Chute and Blade Cover — Provides access
for food and covers sharp blade cone.
3. Blade Cone — Blades rotate rapidly to
process frozen fruits and other foods.
4. Gasket — Prevents contents from
leaking out of unit.
NOTE: There is a top and bottom to the
gasket. The top measures 3-3/4 inches
and the bottom measures 4-1/4 inches.
BASE
6. Base — Contains motor and electrical cord.
The base provides the mounting surface
for the chute assembly.
7. Electrical Cord
