Usage

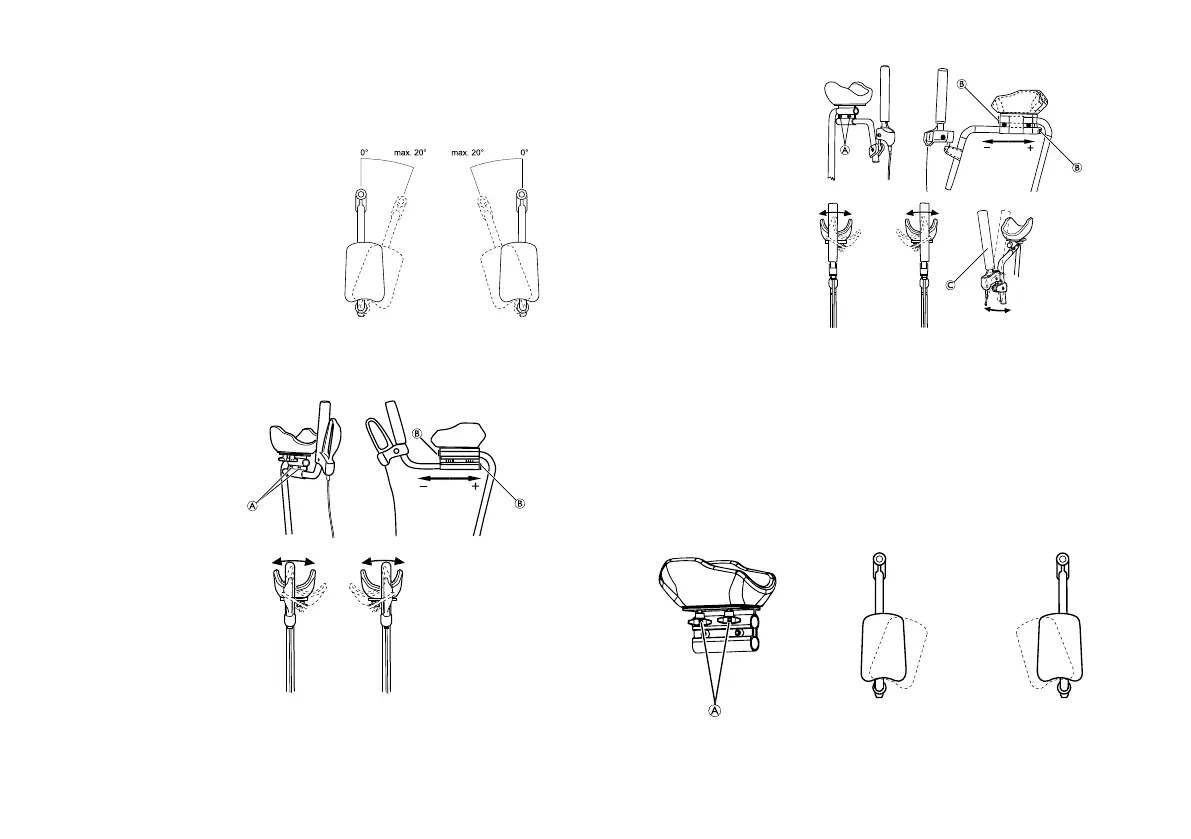

Adjustingtheangle
1.UntightentheleverA.
2.Adjusttheangleofthehandlestoasuitableposition.
Makesurethatthehandlesare
alwaysintheallowedadjustment
area(maximum20°inwards).
Donotturnthehandles
outwards.
max. 20°0 ° max. 20° 0°
3.Tightenthelever.
Adjustingdepthandinclinationangle
AlphaBasic
B
B
A
+−
AlphaAdvanced
A
B
B
+−
C
1.LoosenthetwoscrewsAwiththesuppliedAllenkey.
2.Adjustthedepthofthearmsupporttothedesiredposition.
MakesurethattheblackendplugsBarealwaysvisible.
3.Adjusttheinclinationangleofthearmsupportcuptothe
desiredposition.
4.Adjusttheangleofthebrakehandletothedesiredposition.
5.Tightenthescrewscarefully.
Rotatingthearmsupportcupsinwards
A
