Dolphin 12V 10A - Battery Charger; Technical Specifications

12V10A 12V15A
3

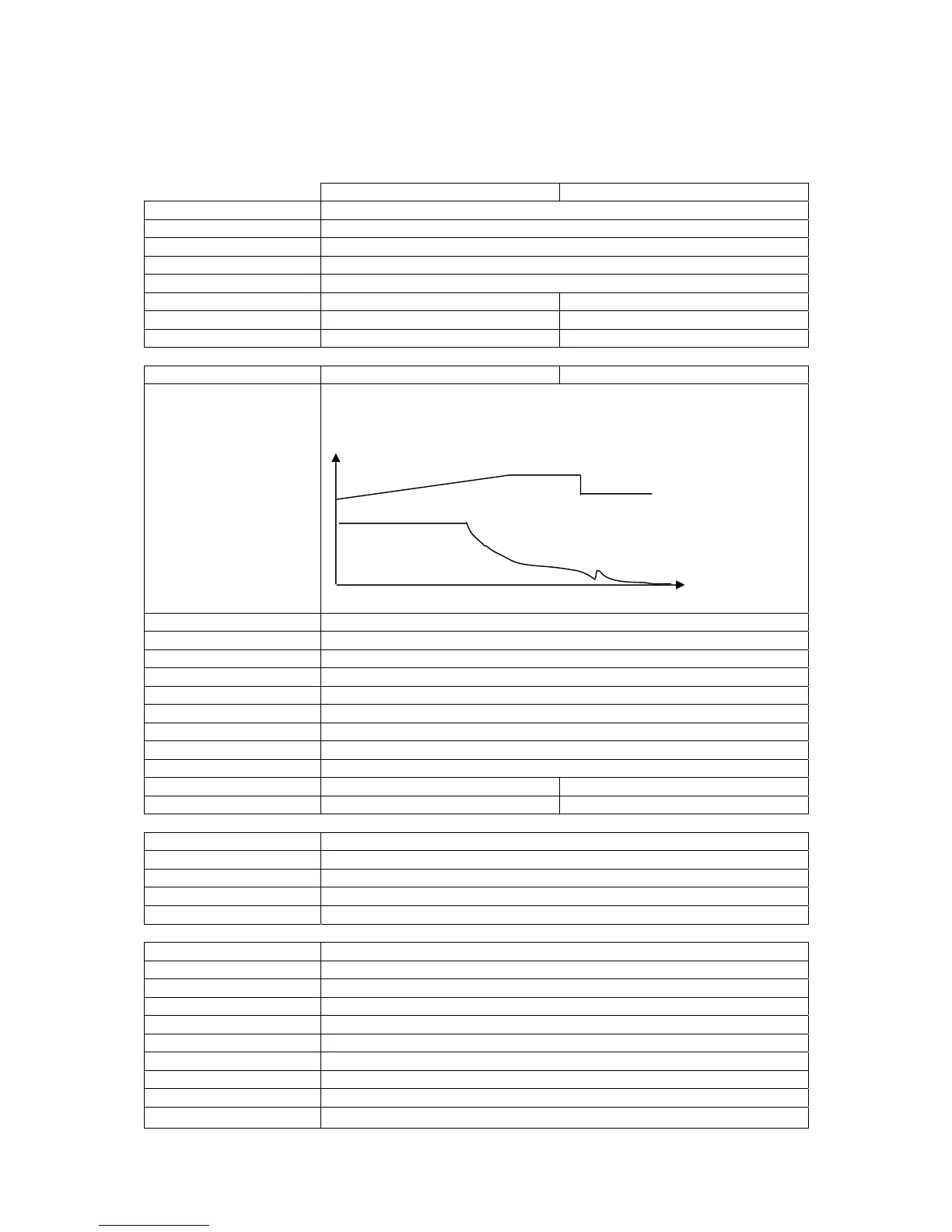

Technical Specifications
Battery Charger
12V 10A 12V 15A
Input voltage 115V/230V
Input frequency 60Hz/ 50Hz
Switch 115V/230V Internal selector switch
Cos φ 0.65 typ
Output 80%
Power consumed 160W 240W
Active power 250VA 370VA
Fuse T3A 5 x 20 mm T4A 5 x 20 mm
Number of outlets 2 isolated outputs 3 isolated outputs
Charging curve I.U.Uo 3 stages
Charge selector 2 positions (Norm & Pb-Ca (Lead Calcium))
"Norm" position All battery types
"Pb-Ca" position Calcium lead
DC1 boost (norm) 14.4V
DC1 boost (Pb-Ca) 15.0V
DC1 float (Norm & Pb-Ca) 13.8V
DC2, DC3 outlets DC1-0.3V
Voltage allowance +/-2%
Residual waves <1%
Max charge current 10A (+/-5%) 15A (+/-5%)
Fuse F15A F20A
Short circuit fault Electronic protection
Temp fault Vigitherm protection (12V 15A only)
Reverse polarity Battery fuse protection
General fault Battery fuse protection
Display LED On/Off
Configuration Flyback 50KHz
Operating temperature 0°C - 50°C
Storing temperature -20°C - 70°C
Humidity 10%-90% (without condensation)
Electronic protection By tropicalization
Ventilation Natural (forced on 12V 15A)
EMC EN50081-1, EN50082-1, EN61000-3-2
Security EN60335-1
Box Painted aluminum
Mounting
Wall mounted - 4 x 4mm ∅screws
Batter
y
Volta
g
e
Batter
y
Curren
t
Boost
Floa
t
Max curren
t
