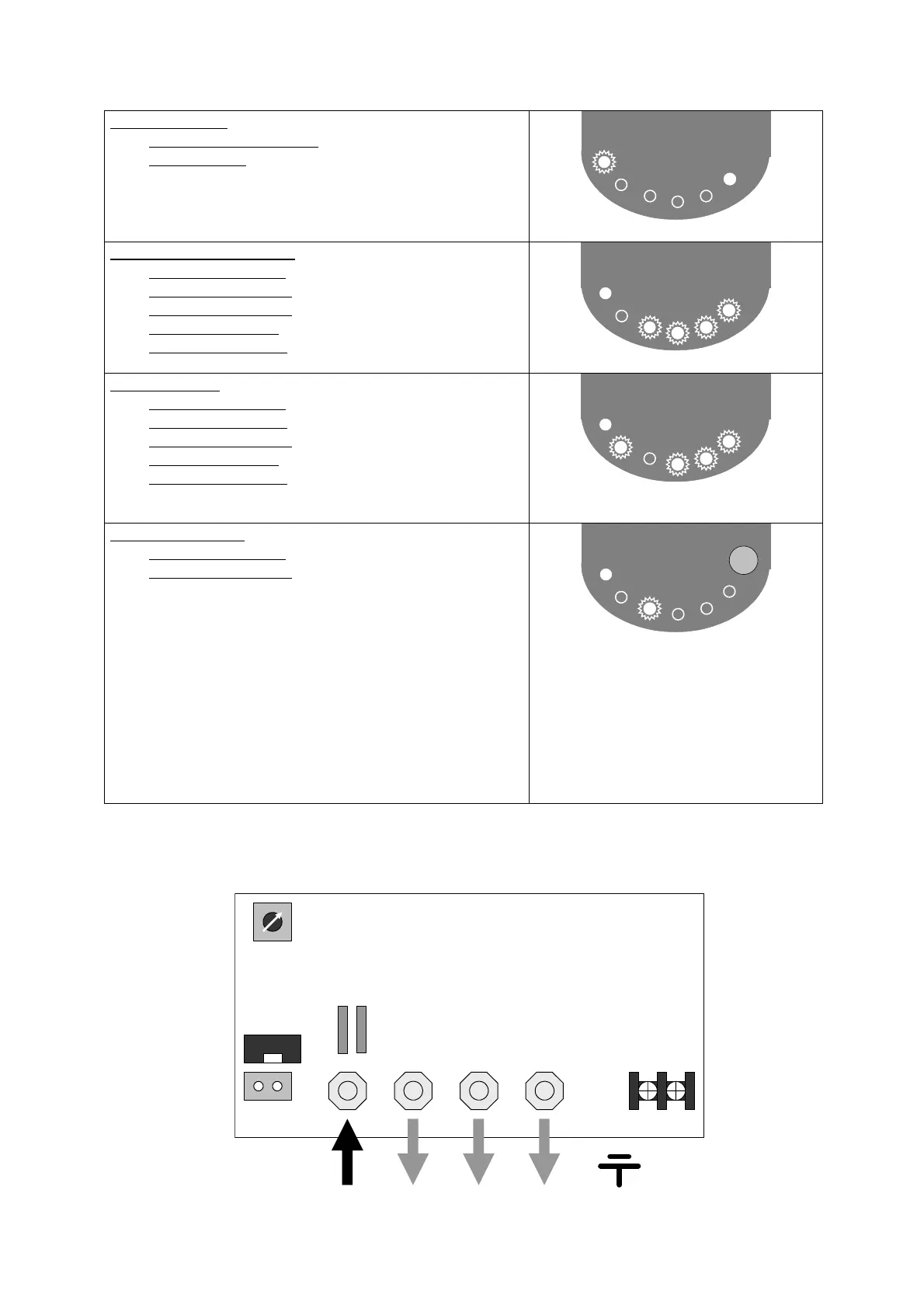

Faulty Fuse wires
• LED "Power On" is flashing
• LED 'BAT' is on
• Faulty fuse wires
• Check battery connections
• Check the status of the fuse box
POWER.ON
Fuse
Sulphation boost (1 hr max)
• LED "Power On" is on
• LED "Boost" is flashing
• LED "Temp" is flashing
• LED 'BAT' is flashing
• LED "Fuse" is flashing
Equalization phase on Position 09
POWER.ON
BOOST
Sulphation Float
• LED "Power On" is on
• LED "Float" is flashing
• LED "Temp" is flashing
• LED 'BAT' is flashing
• LED "Fuse" is flashing
• Floating phase on position 09
POWER.ON
FLOAT
Manual Equalization
• LED "Power On" is on
• LED "Boost" is flashing
• Holding down the button on the front for 2 seconds will
begin an extra equalization phase.
• The short anti cycle lasts for 24 hrs
• Please note that holding down the "mode" button will
confirm and begin the desulphation programme
Cycle Number Lenght of equalization phase
0, 1, 2, 3 2 hours
4, 5, 6 1 hour
7, 8 /
9 Begins programme 9
POWER.ON
BOOST
MODE
Connection
-DC +DC1 +DC2 +DC3
Battery fuses
Charge
selection
Remote
control
Temp sensor
N L1
GND
