2.4.2 CT112A solar pump inverter

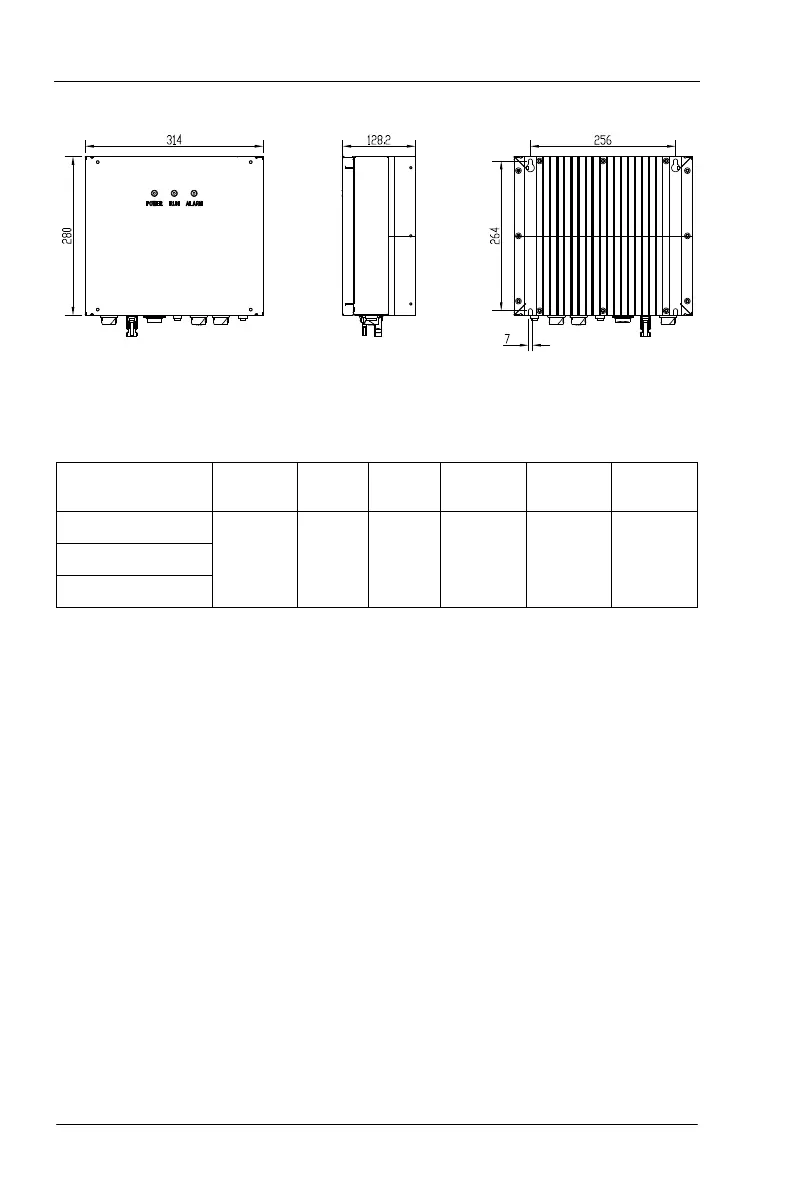

Figure 4 CT112A series dimension diagram
Table 2 Dimensions of CT112A series inverter
Mode
Height H1
(mm)
Width W1
(mm)
Depth D
(mm)
Height H2
(mm)
Width W2
(mm)
Installation
hole
CT112A-2S/2T-0.7
280 314 128.2 264 256 M6
CT112A-2S/2T-1.5
CT112A-2S/2T-2.2
