Installing the refrigerator-oven combination RMLT9xxx
10

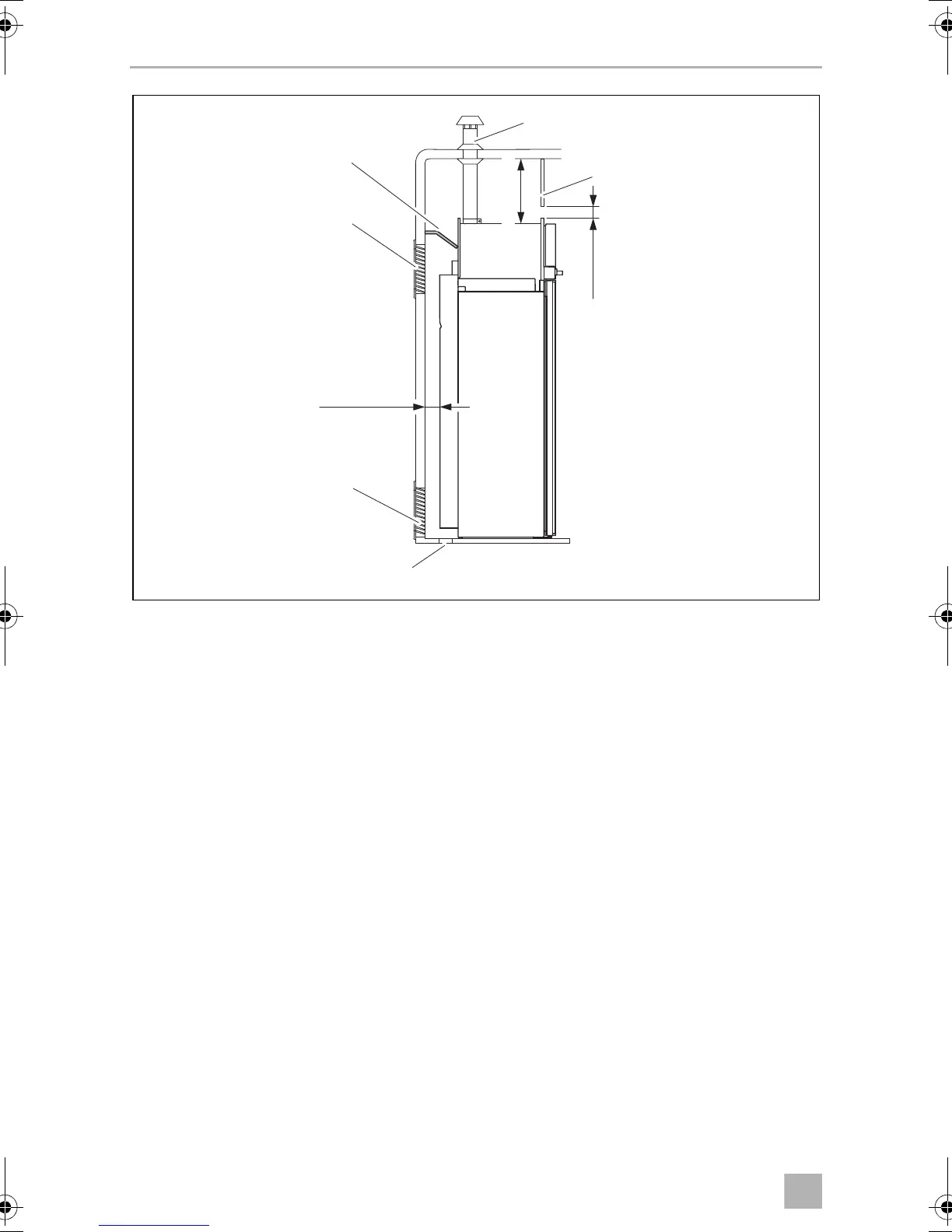

• The outer wall must be fitted with an air inlet vent (fig. 3 1) and an outlet vent
(fig. 3 2) with ventilation grilles so that the heat generated can be easily
released to the outside:
– Air inlet vent: Fit the ventilation grille as flush as possible to the floor of the
installation niche with a minimum cross-section of 400 cm².
– Outlet vent: fit as far above the refrigerator as possible.
6
2
3
4
5
1
10 mm
≥ 170 mm
min.15 mm –
max. 25 mm
