RMLT9xxx Installing the refrigerator-oven combination
11

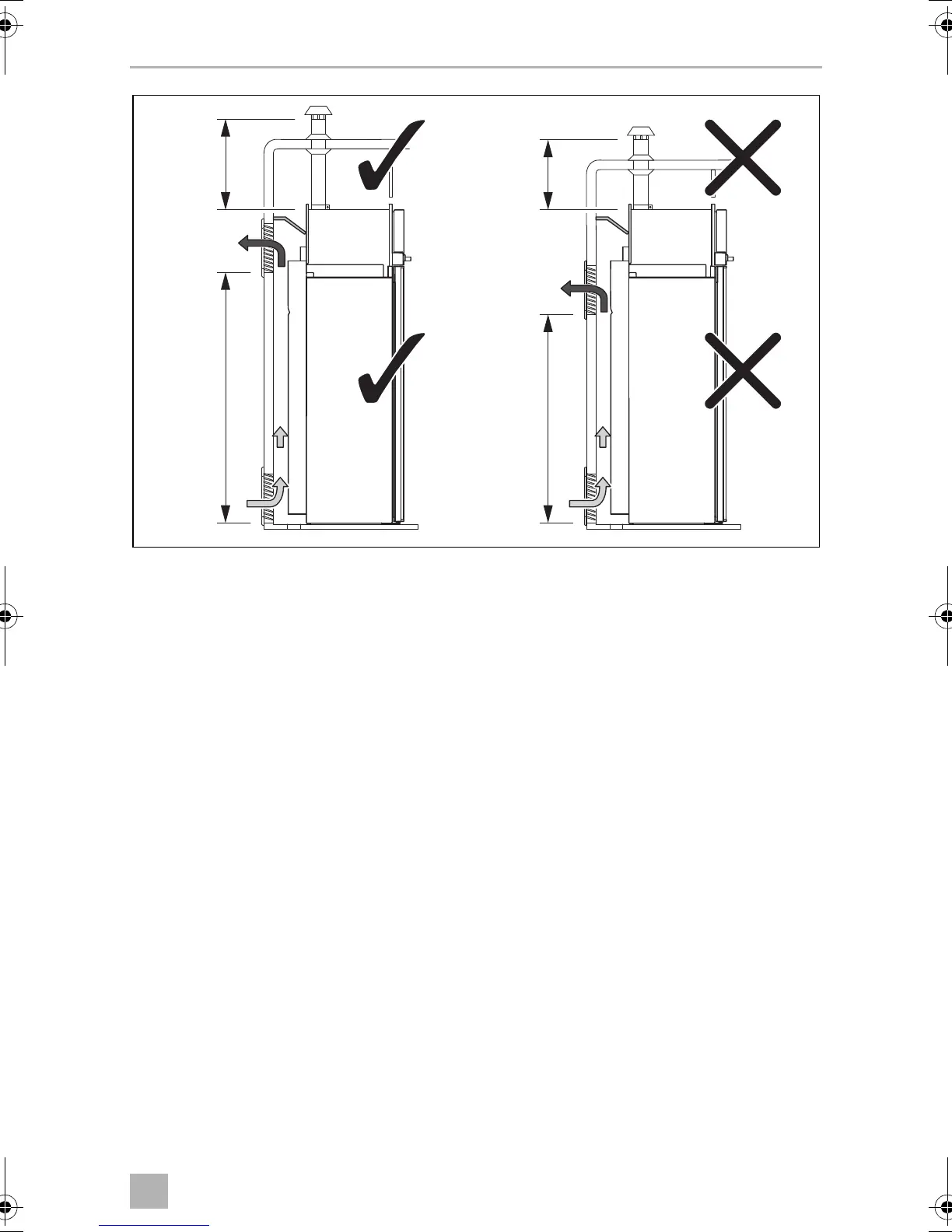

– The distance between the air inlet and outlet vents must be at least 1050 mm
(fig. 4).
• Fit a heat conduction plate (fig. 3 3, page 10) above the refrigerator so that the
heat does not accumulate in the vehicle.
• If the ventilation grille of the air inlet vent cannot be installed flush to the ground,
an additional inlet vent (fig. 3 6, page 10) must be provided in the floor for
releasing leaked gas.
• The distance between the top of the oven and the ceiling must be at least
170 mm (fig. 3, page 10).
• If a roof flue (fig. 3 4, page 10) is being used: Fit a detachable panel (fig. 3 5,
page 10) above the oven so that you can always reach the flue pipe.
RMLT9xxx-I-AUS.book Seite 11 Donnerstag, 7. Dezember 2017 12:53 12
