8
D. Realign Lead Rail (If Required)
After fabric slope and lateral arm assembly adjustments,
the lead rail may need realignment with top and end caps.
See FIG. 16.
1. Check alignment of lead rail against top and end
caps.
2. Extend awning far enough to access adjustment
screw in wrist pivot (approximately 6").
3. Tilt lead rail, by turning adjustment screw in wrist
pivot (for each lateral arm assembly), until align-
ment appears correct.
a. Turn clockwise to tilt lead rail forward.
b. Turn counter-clockwise to tilt lead rail back.
4. Retract awning again to check alignment of lead
rail against top and end caps.
5. Repeat steps (2) through (4) as necessary.

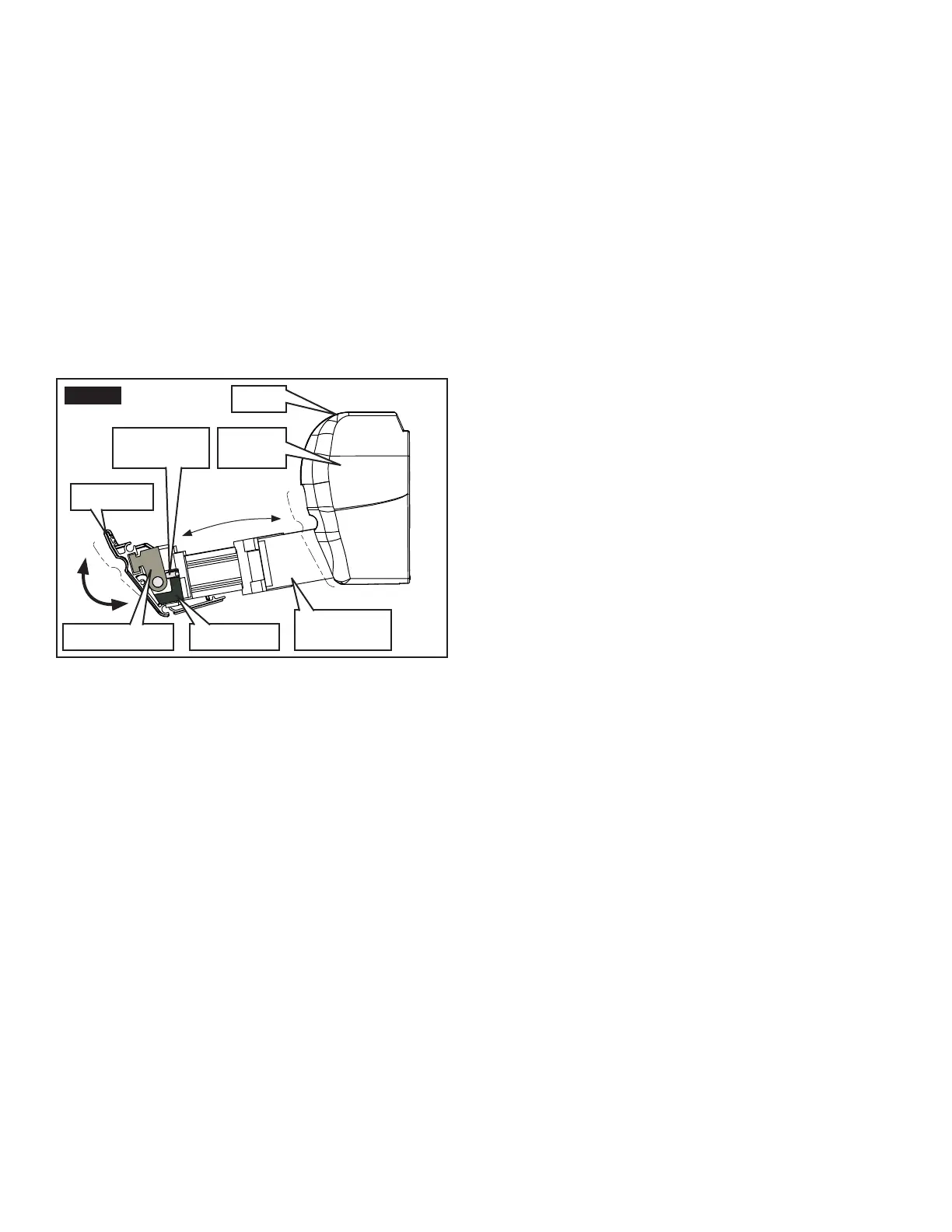

FIG. 16
Lead Rail
Wrist Pivot
Lateral Arm
Assembly
Top
Adjustment
Screw
RH End
Cap
Wrist Bracket
E. Secure Awning For Travel
1. Operate awning according to the Operating In-
structions to verify all parts are functioning prop-
erly.
2. Secure awning for travel. (See “Close Awning” in
Operating Instructions.)
