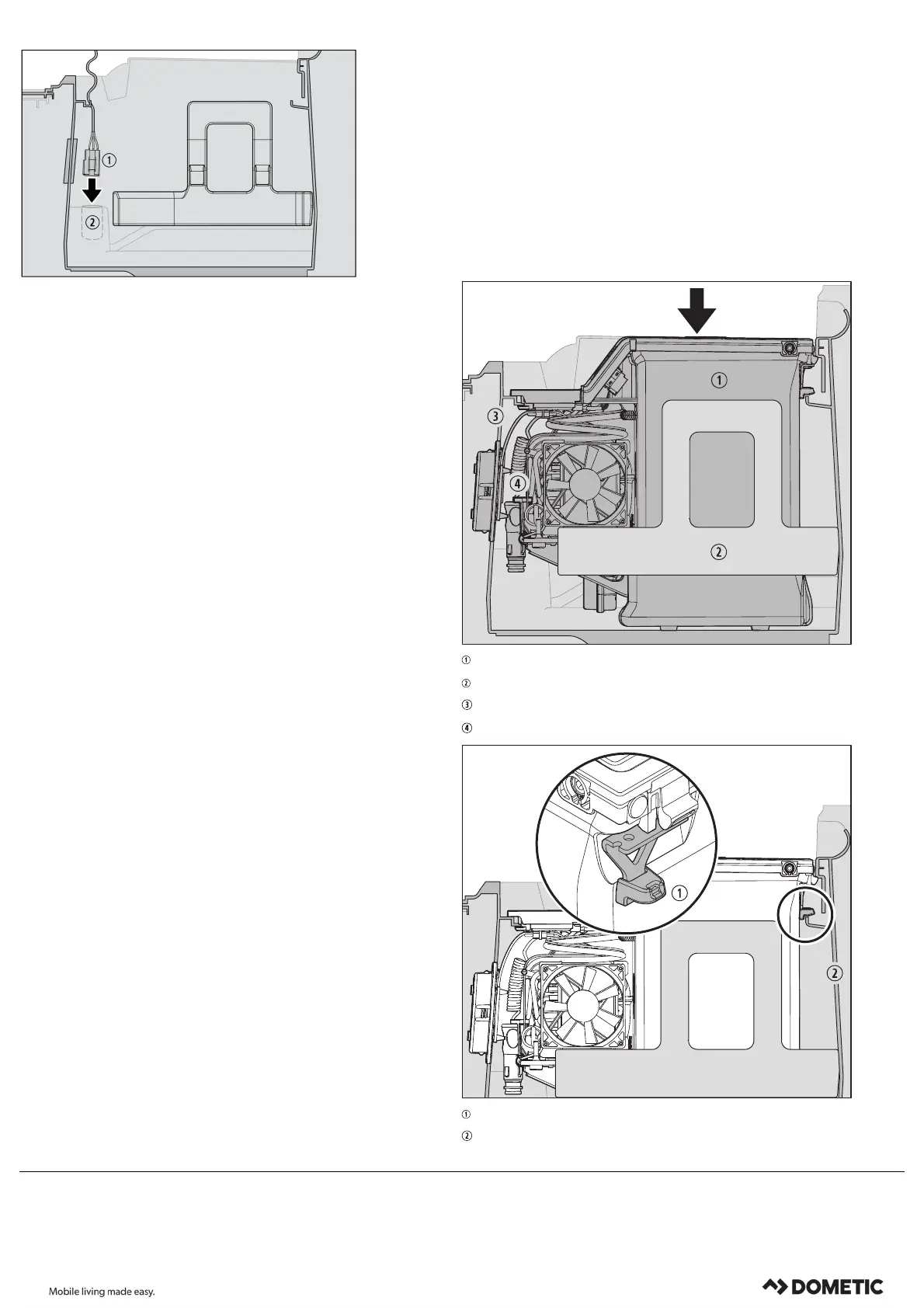

MECHANICAL INSTALLATION OF THE REFRIGERATOR
1. Set the refrigerator unit upright near the console bin and insert the
refrigerator unit’s vehicle harness connector (Yazaki male connector) into
the harness connector vehicle side (Yazaki female connector).
2. Note the power retaining latch located at the bottom- left corner of the
refrigerator unit.
3. Gently rock the refrigerator unit from left to right while lowering the
refrigerator unit into the console bin.
Refrigerator Unit
Lef Foam Spacer
Console Bin Frame Lip
Power Retaining Latch
4. Use a screwdriver to rotate the power retaining latch 180 degrees from
the refrigerator unit. The top lip of the latch will secure the harness
connector.
5. Continue to lower the refrigerator unit until it is fully seated with the
receptacle locks engaged. The top edges of both the refrigerator unit
and the console bin should be level.
Receptacle Locks (2)
Console Bin
