D21 Drop-in Cooktop

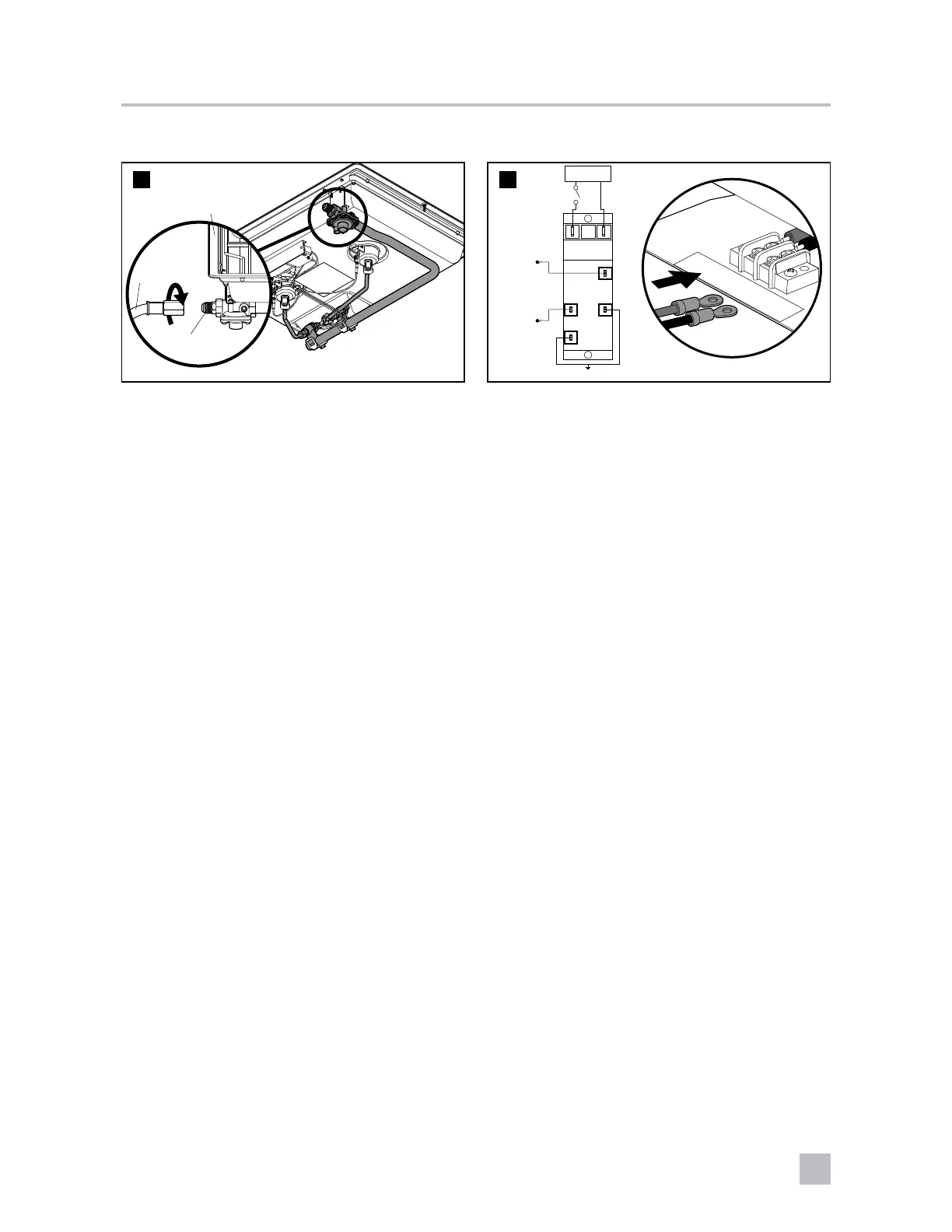

4.3 Connecting the propane gas
4
(Rear of unit)
Gas
Hose
Gas
Connection
(Bottom)
➤ Run a propane-certified hose from the propane
supply tank to the gas connection on the
Cooktop.
➤ Tighten according to appropriate RV and gas
codes. Use two wrenches when tightening.
Hold regulator in place while tightening hose.
➤ Turn ON the gas supply by turning the gas shut-
off valve on the tank counterclockwise.
➤ Check for leaks using a non-corrosive leak
detection fluid. Do not use a soap and water
solution. Leak test pressures in excess of
13.9" W.C. (1/2 psi) of air pressure will
invalidate the warranty.
➤ Aer confirming there are no leaks, turn OFF the
gas supply by turning the gas shut-off valve on
the tank clockwise.
4.4 Connecting the 12 V ignition
+
L N
–
THIS CONNECTION IS FOR 12 VOLT
BATTERY OR DIRECT CURRENT ONLY.
DO NOT CONNECT TO 120 OR 240 VOLTS AC.
+ –
5
Switch
Ground
Igniter
Electrode
Igniter
Electrode
➤ Connect the positive and negative wires to the
terminal block on the back of the Cooktop.
I
Connecting the wires to the wrong terminal
will cause the igniter not to operate and can
damage the ignition coil.
I
For 12 V circuits only. Connecting to a higher
voltage circuit can cause ignition coil damage
